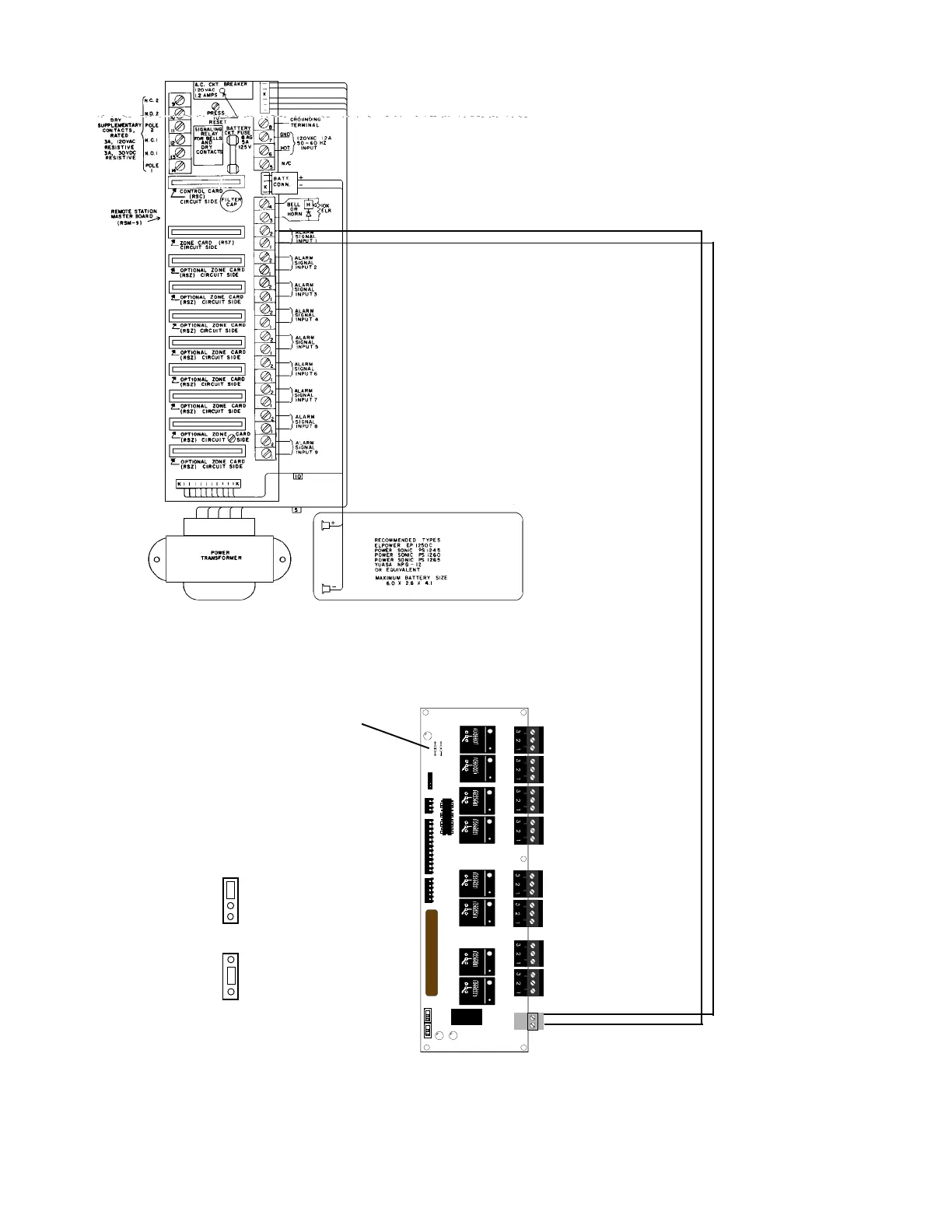

Figure B-5 Remote Station Connection Using RTM-8 Module
Note: Cut Jumper JP5 on control panel circuit board.
Jumper JP2 must be in
position AL/TR REV. POL.
for use in alarm and
trouble transmission
or AL ONLY for alarm
transmission only
Jumper Settings:
Alarm/Trouble Polarity
Reversal
Remote Station
JP1 must be cut
Alarm only Polarity
Reversal
Remote Station JP1
must be cut
–
+
FireLite RS82 Remote Station Receiver
UL-listed. Refer to FireLite Alarms, Inc.,
Instruction Manual for Remote Station
Receiver Model RS-82
RTM-8 Relay Transmitter
Module
(not suitable for separate
transmission of both alarm
and trouble signals to
Remote Station)
Cut JP1
+ –
Polarity Shown is
Non-alarm
