Figure B-6 NFPA 72-1993 Proprietary Fire Alarm Systems
The AFP-200 must be programmed for ACS annunciation mode and must have the switch (SW2) on the main
circuit board set for ACS mode. The ACS interface will automatically transmit General Alarm, General Trouble
and General Supervisory signals and will receive Acknowledge, Silence, and Reset commands automatically
from the AM2020/AFP1010 control panel. Zone alarm and zone trouble information may be transmitted by
programming the AFP-200 points to software zones 1 through 88. Up to ten AFP-200 Protected Premises
Units may be monitored by one AM2020/AFP1010 Receiving Unit using ten SLC loops and ten NIB-96
modules. The ground fault circuit in the AFP-200 must be disabled by cutting jumper JP9 since the AM2020/
AFP1010 performs ground fault protection for the control panel circuits.
Note: If the RPT-485W isolating repeater module is connected between the AM2020/AFP1010 and the control
panel, a common connection does not need to be made between the two panels. However, a system common
connection must be made from the AFP-200 to RPT-485W and the AFP-200 ground fault jumper JP9 should
not be cut.
For Receiving Unit installation and programming, refer to the AM2020/AFP1010 Manual, Document 15088
and the NIB-96 Manual, Document 15666.
AFP-200 Protected Premises Unit
EIA-485 Loop two-
wire (Style 4)
Twisted Pair Power-
limited Supervised
System Common
Cut Jumper JP9 to disable ground fault in the
AFP-200. The AM2020 will detect all ground
faults.

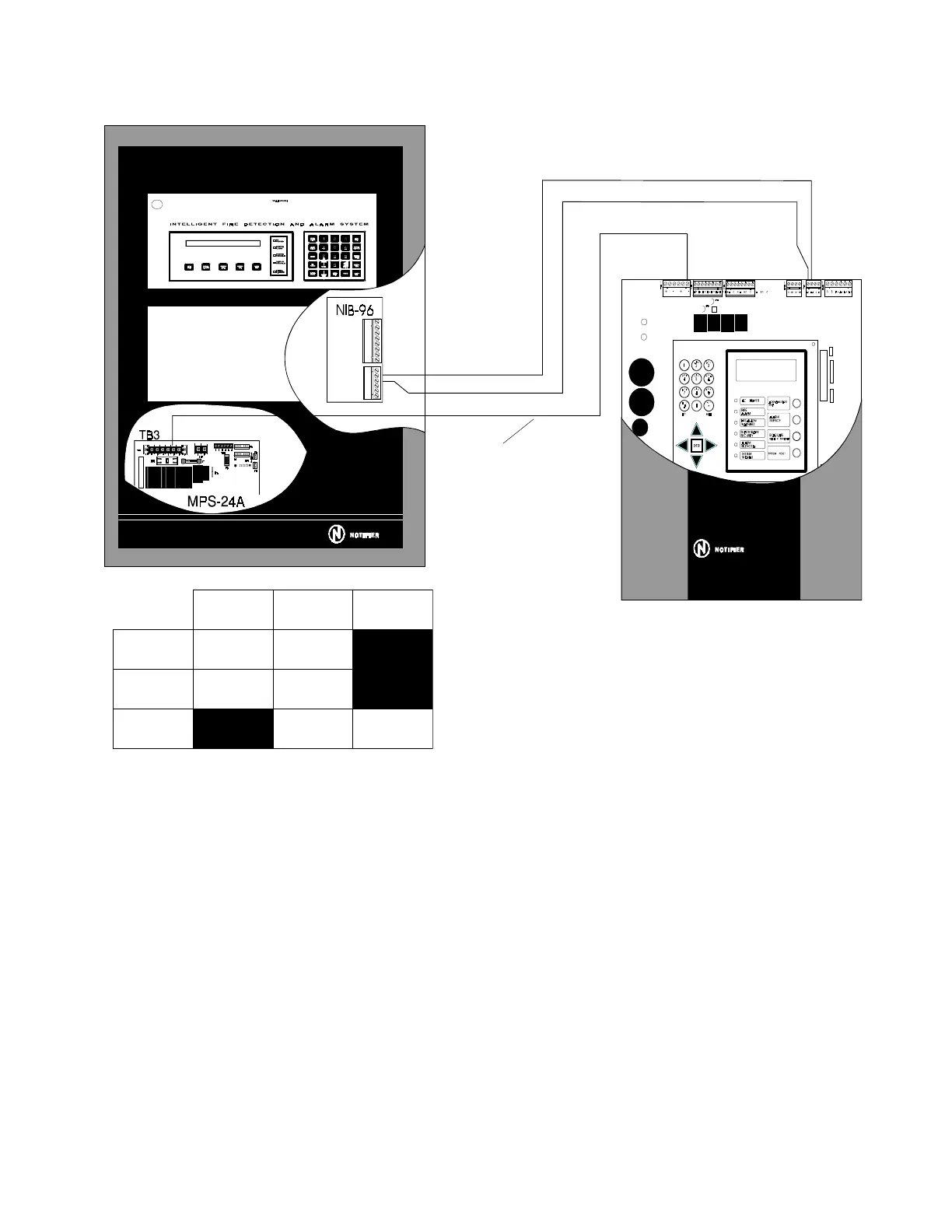

AM2020/AFP1010 Receiving Unit
Wiring Connections
69-BIN69-BIN
69-BIN
69-BIN69-BIN002-PFA002-PFA
002-PFA
002-PFA002-PFAA42-SPMA42-SPM
A42-SPM
A42-SPMA42-SPM
)+(584-AIE)+(584-AIE
)+(584-AIE
)+(584-AIE)+(584-AIE
5.mreT4P1.mreT5BT
)-(584-AIE)-(584-AIE
)-(584-AIE
)-(584-AIE)-(584-AIE
3.mreT4P2.mreT5BT
metsySmetsyS
metsyS
metsySmetsyS
nommoC
6.mreT1BT6.mreT3BT
To Next Page
