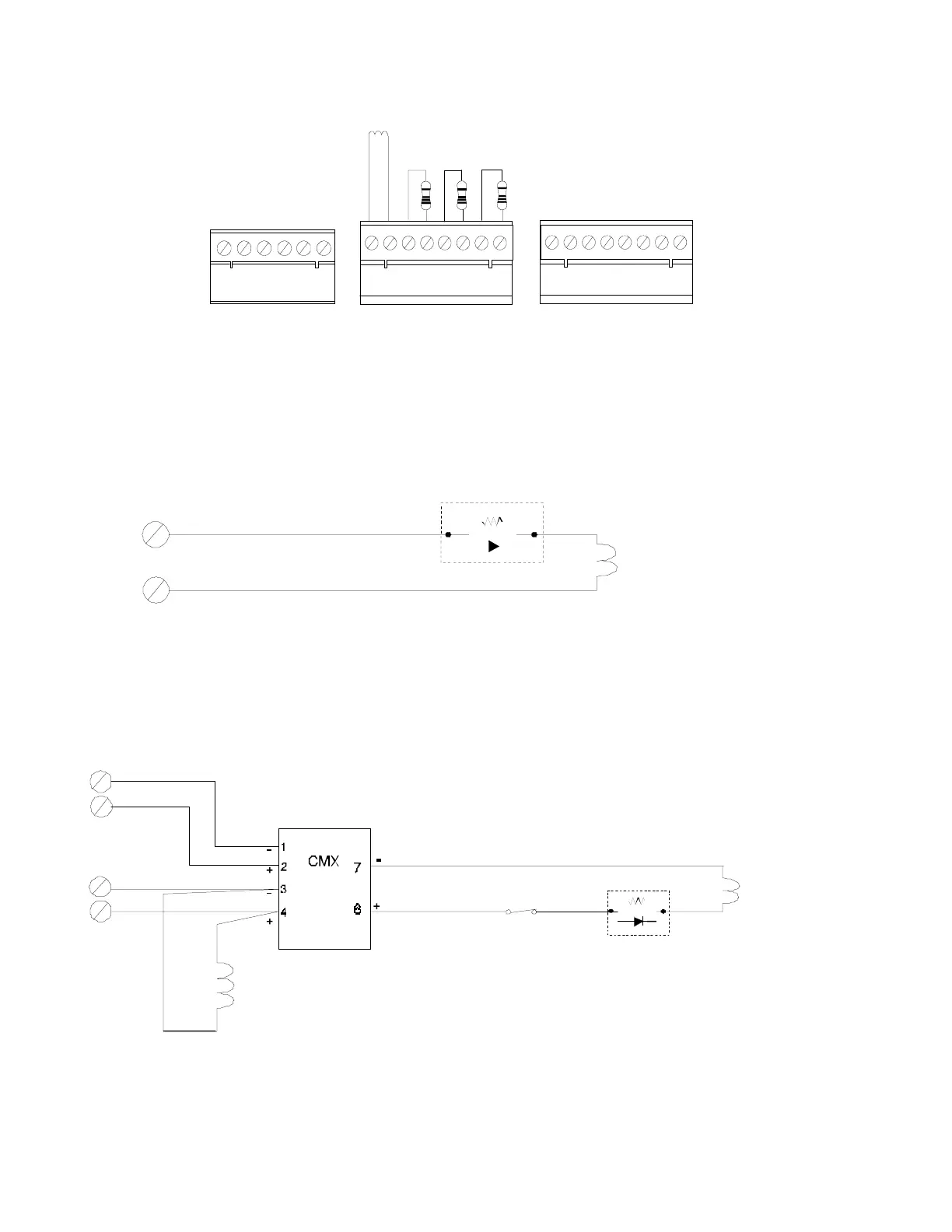

Figure D-1 Notification/Releasing Connections
Figure D-3 Typical Connection of Releasing Device to CMX
Figure D-2 Typical Connection of Releasing Device to Panel
Red
Brown
REL-47K
REL-4.7K
Brown
Red
Compatible Solenoid Valves
For a list of compatible solenoid valves,
refer to the Device Compatibility
Document.
Terminate all unused circuits with a 4.7K ELR
+  +  + 
NO C NO NC C NO NC C
B+ B- B+ B- B+ B- B+ B-
TB3
TB2
TB1
24 VDC power
from AFP-200
Releasing Device
(UL-listed) 24 VDC
TB2-1 (+)
TB2-2 ()
SLC Loop to
AFP-200
TB6-5 ()
TB6-3 (+)
TB1-2 ()
TB1-1 (+)
24 VDC power
from AFP-200
Power Supervision Relay
A77-716-02
N.C. Supervised
Relay Contact
Releasing Device
(UL-listed) 24 VDC
Alarm polarity shown
