Appendix
98 AFP-2800/2802 Manual – P/N 11249 11-Mar-08
EAST WING
SOUTH
CORRIDOR
* Pt 12 Msg 1 of 1
8.4.2.3 EVENT SOUNDER
Switch 1 of DIP switch SW1 will enable the buzzer for alarms.
Switch 2 of DIP switch SW1 will enable the buzzer for faults.
Switch 7 of DIP switch SW1 will enable the RS232 port on the LCD80 for programming.
(Note: Activation of this switch prevents the LCD80 from communicating with the FIP.)
Switch 8 of DIP switch SW1 will select terminal mode (OFF) or annunciator mode (ON)
If the buzzer is enabled, pressing the “MUTE” button will silence the buzzer until a new event is received.
8.4.2.4 DISPLAY

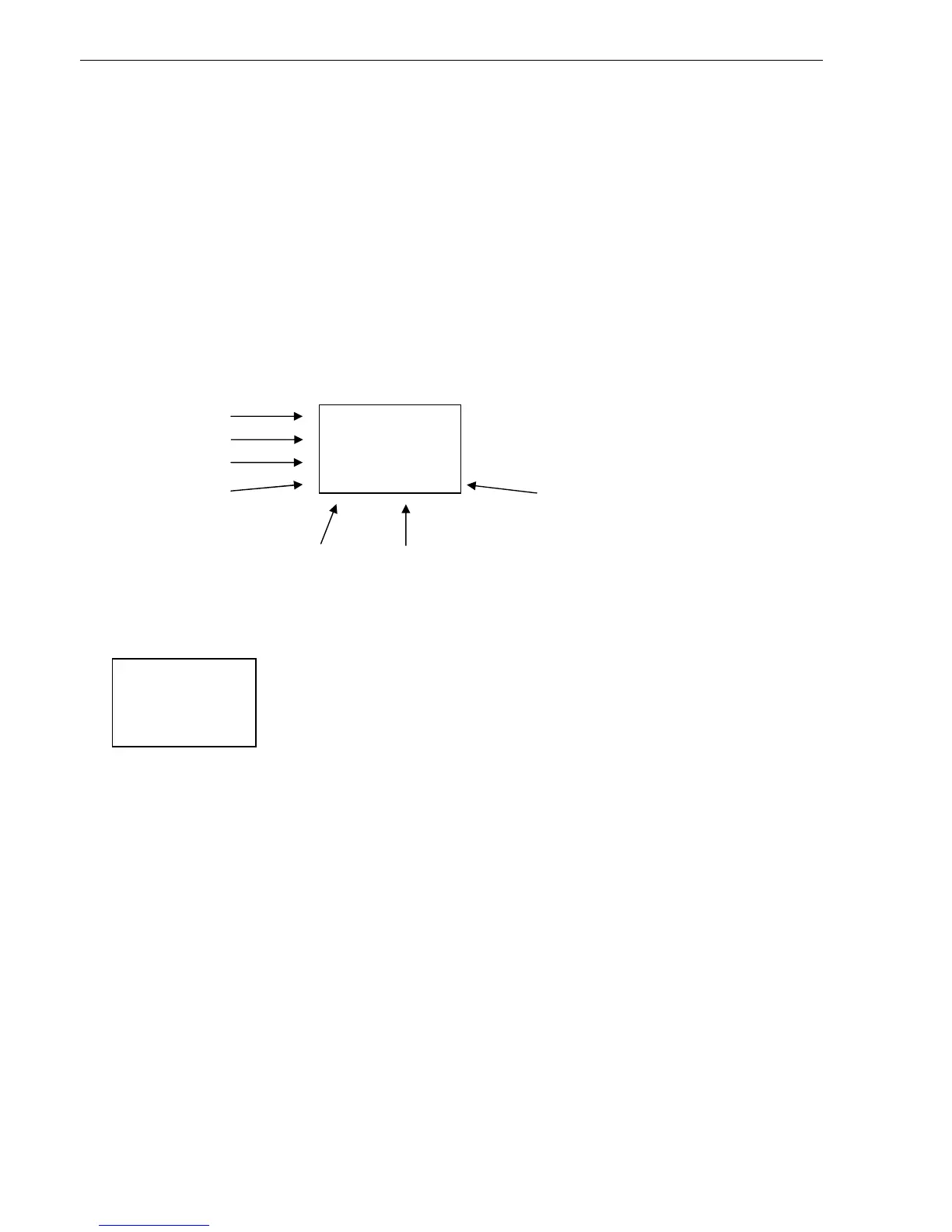

The LCD Display is made up of 4 lines of 20 characters each. Events are displayed as:
In the above example, the FIP has activated Point 6 on the LCD80. It is the first of 5 points which are active. The
Comms Indicator “Spins” when messages are being received by the LCD80.
In this example: The FIP has activated Point 12 on the LCD80. It
is the only point active.
8.4.2.5 SPECIAL MESSAGES
NO ACTIVE POINTS
There are no active points on the panel programmed to
display on the LCD-80.
COMMS FAILURE
This messages flashes: The LCD80 has not been polled by
the CPU in over 10 seconds
EAST WING
NORTH
CORRIDOR
* Pt 6 Msg 1 of 5
Total Messages
Line 1
Line 2
Line 3
Comms Indicator
Message
Number
Point
Number
To Next Page
