Notifier AFP-2800 User Manual

Appendix
112 AFP-2800/2802 Manual – P/N 11249 11-Mar-08
8
8
.
.
7
7
.
.
2
2
C
C
P
P
U
U

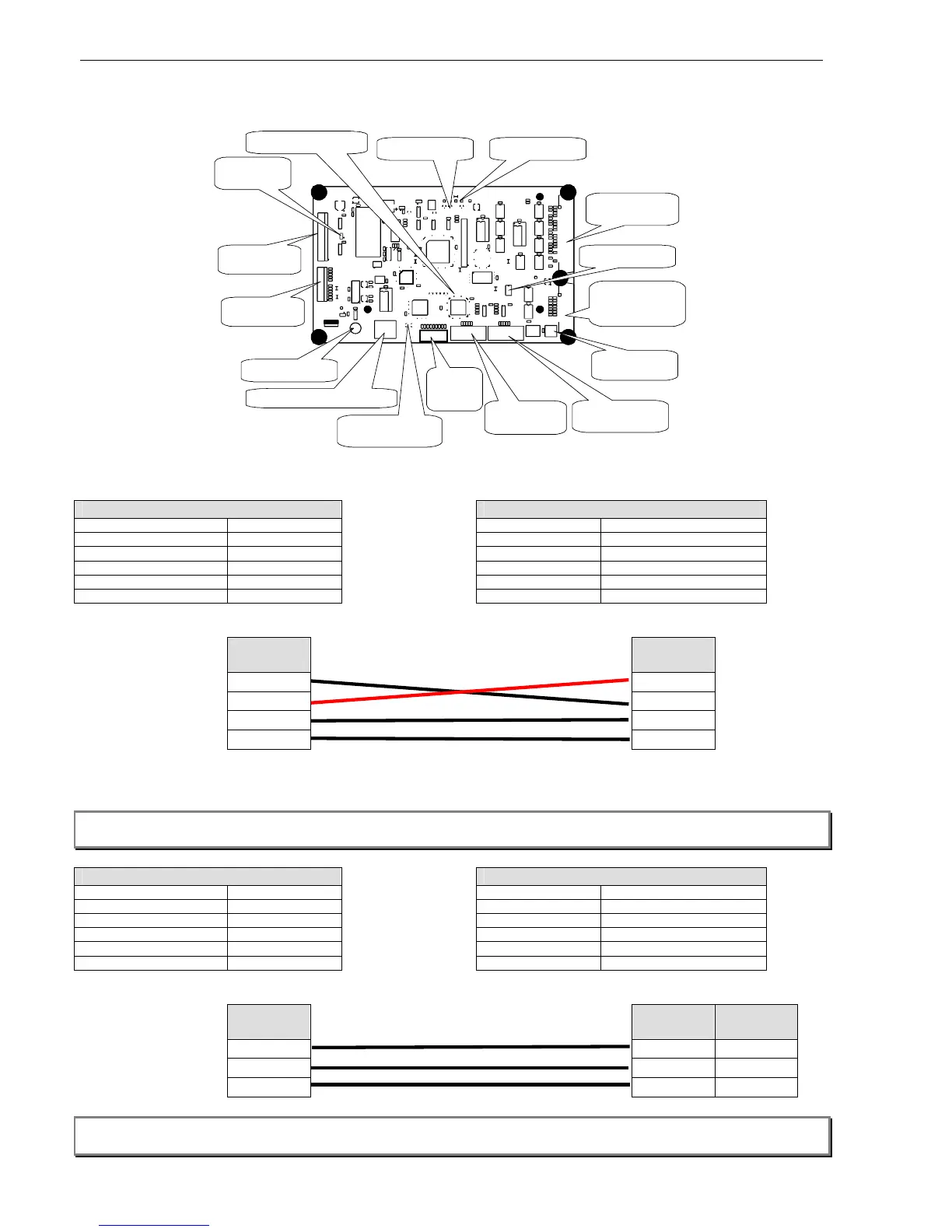

Panel LED
connector
Panel button
connector
LCD contrast adjust
IBM PS/2 Keyboard Connector
Serial Printer
Port
Upload/Download
Serial Port to PC
5V Power
Connector
Restart Switch
D
ata Connector to
Termination Board
Serial I/O connector
to Termination
Board
Test points
Script Running LEDs
LCD Backlight
Plug
Option Switch
Keyboard Enable
Jumper
PS/2
Keyboard
Connector
8.7.2.1 UPLOAD/DOWNLOAD PORT SETTINGS
Port Information Connector Information
Mode RS232 Type DB9 Female
Baud Rate 115200 Location CPU Conn 2
Data Bits 8 TX Pin 3
Stop Bits 1 RX Pin 2
Parity None GND Pin 5
Handshaking None
Cable Specification AFP-2800/2802 End (CONN2) Laptop End
DB9 Male DB9
Female
2 (RX) 2 (RX)
3 (TX) 3 (TX)
5 (REF) 5 (REF)
8 (CTS) 7 (RTS)
8.7.2.2 PRINTER PORT SETTINGS
Caution: The PS/2 keyboard and serial printer must not be connected at the same time or printing errors will result.
The serial printer (where fitted) must be disconnected whilst the keyboard is plugged in.
Port Information Connector Information
Mode RS232 Type DB9 Female
Baud Rate 9600 Location CPU Conn 1
Data Bits 8 RX Pin 2
Stop Bits 1 GND Pin 5
Parity Odd CTS Pin 8
Handshaking Hardware
Cable Specification AFP-2800/2802 End (CONN1) Printer End (25 or 9 pin)
DB9 Male DB25
Male
DB9 Male
3 (TX) 3 (RX) 2 (RX)
5 (REF) 7 (REF) 5 (REF)
8 (CTS) 4 (RTS) 7 (RTS)
Note: If using a DPU414 thermal printer with 9 pin connector, connect pins 3, 5, 8 on AFP-2800/2802 to pins 3, 5,
8 on the printer (1 to 1). Refer to printer manual for detailed connection information.
