Message Formats General Information
The top four lines contain event information, and are formatted as follows:

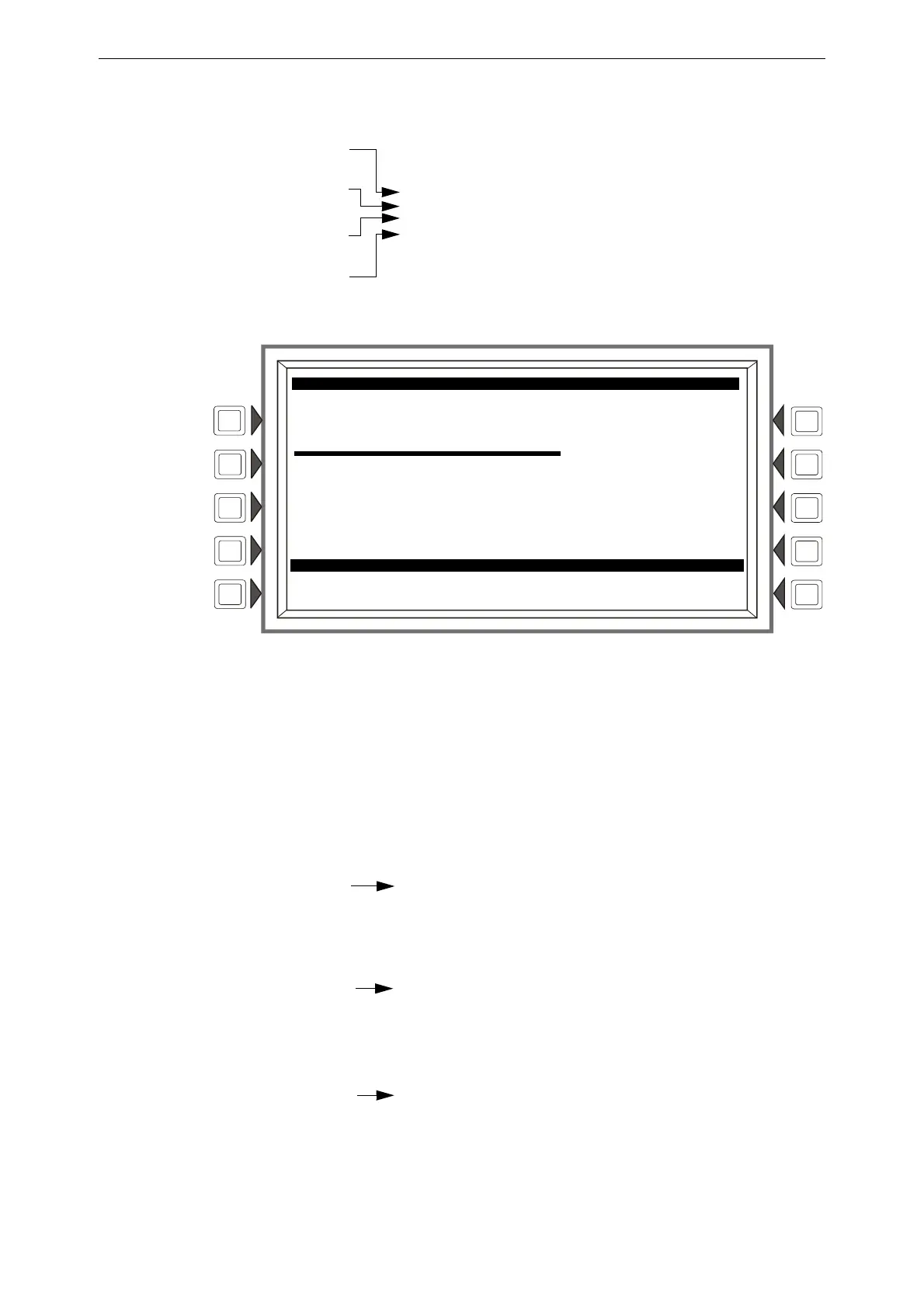

The system fault event example screen below shows an annunciator fault condition.
Figure 1.4 System Event Display Example
The event counts display shows the counts for outstanding events. The date in line eight gives the
current time. The soft keys may be used to deal with the event; their functions are described in the
Operation section of this manual.
Mass Notification Events
When a local mass notification event occurs on the fire panel, a message is generated to the panel
that displays on the top of the LCD screen, and soft keys display available functions that may be
used to handle the event.
The format of the first line will vary slightly as follows, depending on the type of event.:
FAULT
ANNUN 1 FAULT
LAKEVIEW GENERAL HOSPITAL
11:58:45A TUE JAN 25, 2011
Line 1 - Displays FAULT
and whether it has been
acknowledged or cleared
Line 2 - Displays fault
type
Line 3 - Displays custom
message.
Line 4 - Displays event
time and date and node
address.
FAULT: 1 OF 2
FAULT
ANNUN 1 FAULT
11:58:43A MON 04, AUG, 2014
2 FLT ANNUN 1 NO ANSWER
ALM:0 SUP:0 FLT:2 DIS:0 OTHER:0
11:58:43A MON 04, AUG, 2014
MN ALARM
SECURITY OFFICE MAIN BLDG
FIRST FLOOR ZF20 MN MON
11:58:45A TUE JAN 22, 2013 L03M002
Line 1
Displays the type of
event, and whether it
has been
acknowledged or
cleared.
MN FAULT DETECTOR FAILED TEST
SECURITY OFFICE MAIN BLDG
FIRST FLOOR ZF22 MN MON
11:58:45A TUE JAN 22, 2013 L03M003
Line 1
Displays
MN FAULT, and
whether it has been
acknowledged or
cleared.
Event
Format (not
fault or
supervisory)
Event
Format
(fault)
Line 1
Displays
MN SUPERVISORY
and whether it has
been acknowledged
or cleared.
MN SUPERVISORY
SECURITY OFFICE MAIN BLDG
FIRST FLOOR ZF21 MN SUPL
11:58:45A TUE JAN 22, 2013 L03M004
Event
Format
(supervisory)
