AFP-3030 Operations Manual — P/N DOC-01-039:A 26/11/2015 54
Point Range Select for All Events in Range Viewing and Printing History Information

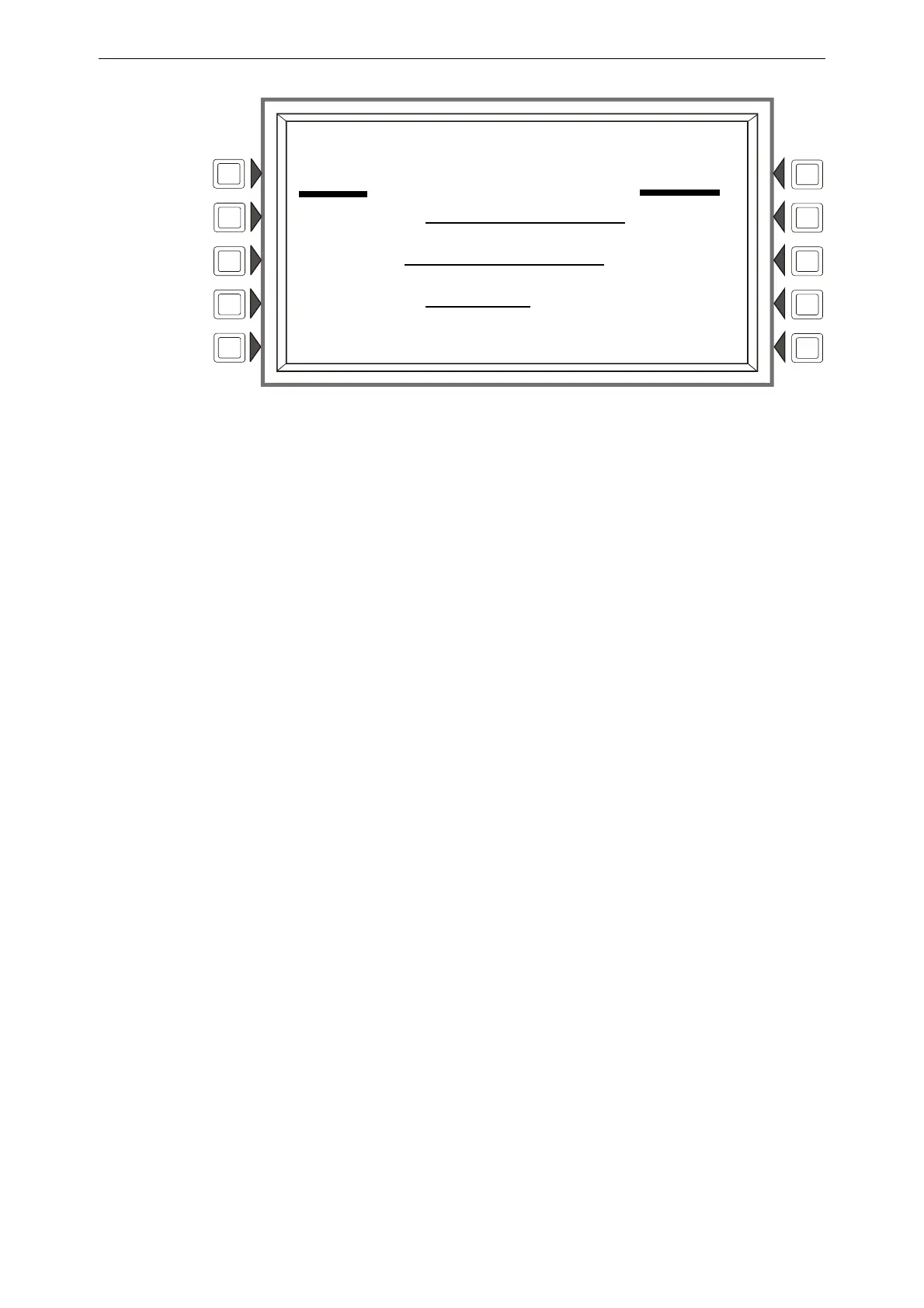

Figure 4.2 Time & Date Range Select Screen
Display
See description in Section 4.1, “Events History”, on page 52 for lines 1-5.
Soft Keys
START TIME: - Use the keypad to enter a start time for event viewing in the following format:
HH:MMA/P DDD DD/MM/YY
END TIME: - Use the keypad to enter an end time for event viewing.
EVENT TYPE: - Press this soft key to scroll through the following: ALL EVENTS, ALARMS
ONLY, FAULTS ONLY, SUPERVISORY ONLY, OTHER ONLY. Stop scrolling at the desired event
type.
ACCEPT: - When entries are made, press this soft key to proceed to the All Events in Interval
Screen.
All Events in Interval Screen
This screen is the same as the Event History screen, except for its title. Refer to Figure 4.1 on page 53.
4.3 Point Range Select for All Events in Range
Pressing the Point Range soft key on the Local History Select screen displays the Point Range
Select screen. This screen allows for selection of a beginning and an end point that defines the
range of events to be viewed and/or printed.
Range is selected in the following order:
1. Loop 1 Detectors
2. Loop 2 Detectors, etc.…
3. Loop 10 Detectors
4. Loop 1 Modules
5. Loop 2 Modules, etc. …
This FACP can have up to 10 loops, which would all follow the above order for range selection.
20. Loop 10 Modules
LAKEVIEW GENERAL HOSPITAL
SYSTEM NORMAL
11:58:45A TUE JAN 25, 2011
TIME & DATE RANGE SELECT
START TIME: 12:00A THU 10/01/07
END TIME: 02:00P MON 14/01/08
EVENT TYPE: ALL EVENTS ACCEPT
BACK
