ACS Mode Configuration Programming
18 LCD2-80 Instruction Manual — P/N 53242:B1 10/25/2012
System Trouble/Display Option - Set ON to have a general alarm or trouble
message display in the system if there is no annunciator point mapped to the device.
ACS Circuit Size
- 64 or 96 points.
System Messages
-
Description: Fixed message titles. The message associated with the description
will display on the LCD2-80 when called for by a panel command.
Message: These fields are populated with default messages that may be
changed by the programmer.

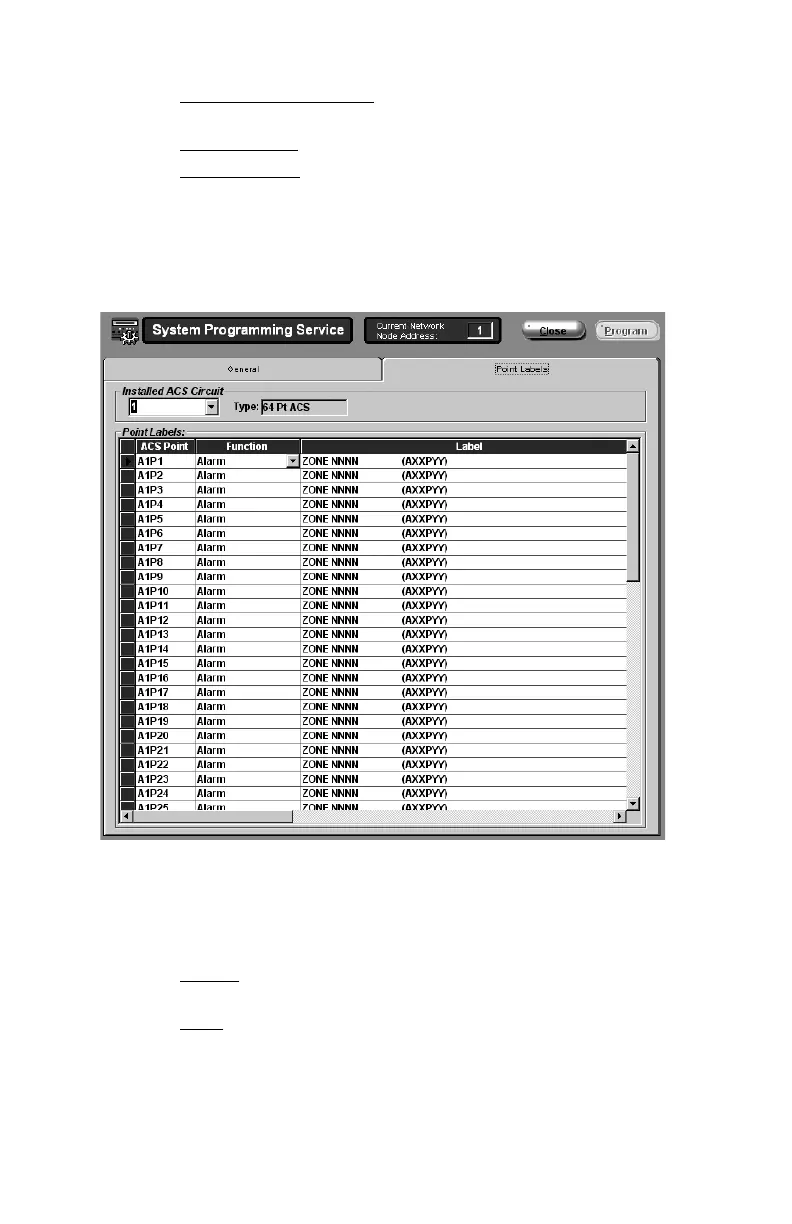

3.3.2 Point Labels Tab
Installed ACS Circuit
The drop-down menu contains a list of all the ACS circuits programmed
into the host panel. Select the desired circuit for programming. The type
field and point grid will populate with the appropriate information.
Function:
Default is Alarm. Select pull-down menu to change to another function.
Function selections: Alarm, Supervisory, Security, Non-Fire, and Telephone.
Label:
Default is to ZONE NNNN (AXXPYY), which may be deleted
and changed to user-composed text. If SYS has been chosen as the
Starting ACS Circuit Type, the first 8 points will not be programmable.
Select the Program button at the top of the screen to write the above
settings to the LCD2-80 database.
