LCD2-80 Instruction Manual — P/N 53242:B1 10/25/2012 15
Section 3: ACS Mode Configuration
The primary application for the LCD2-80 in ACS Mode is to display
messages with text that is a subset of the panel message text, or custom
messages programmed using VeriFire
®
Tools.
The power-limited EIA-485 interface provided by the control panels will
support the installation of devices at up to 32 addresses. Devices other
than the LCD2-80 that can be installed at one of the 32 addresses include
the ACS, LDM, and SCS modules.
The LCD2-80 can be mounted in ABF-1B, ABS-1TB, or ABS-1B
backbox (not the ABS-1) or can mount on one slot of the CHS-4 chassis.
The ABF-1B may include an AKS-1B keyswitch and APJ-1B phone jack.
3.1 Switches
DIP switches at SW3 must be set for ACS mode, and SW10 (ACS/TERM
Mode switch) must be set to ACS.
Setting the DIP switches:
Refer to “DIP Switches - SW3” on page 11 for a full explanation of all the
switch settings. For switches 3-1, 3-2, and 3-4, set as necessary according
to the explanations. DIP Switches 3-3, 3-5, 3-6, 3-7 and 3-8, are unique to
ACS Mode configuration:
3-3 - Set ON to do a database download.
Set OFF when download is complete.
3-5 - Set ON if this LCD2-80 will be used in receive-only mode.
Otherwise, set OFF.
Note: Maximum receive-only mode shadow addresses for the
LCD2-80 in ACS mode is 4 (four).
3-6 - Set ON.
3-7 and 3-8 - Set ON on last LCD2-80.
Setting the ACS/TERM Mode switch:
Set this switch (SW10) to A (ACS).
Setting the Address Switches:
Set the address rotary switches to the desired address. See “Address
Switches - SW1 and SW2” on page 11.

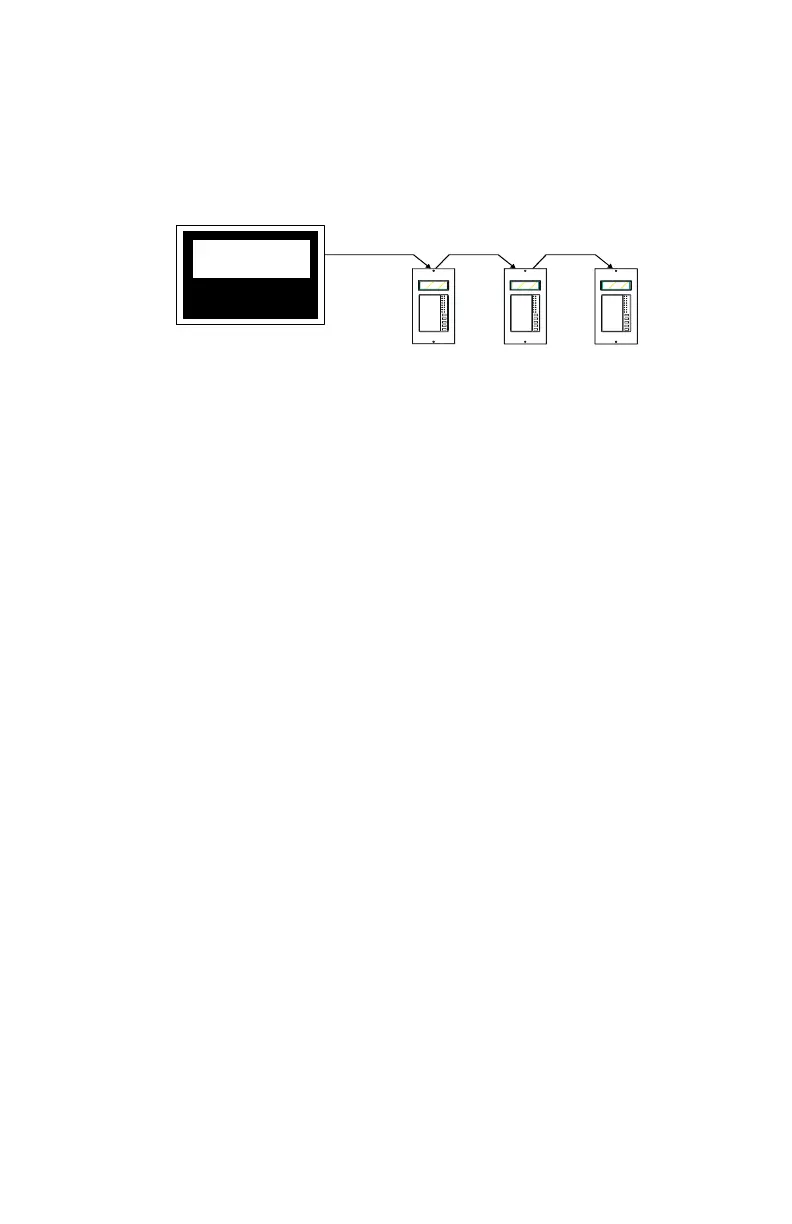

EIA-485: Maximum of 6,000 feet total wire length
LCD280-ACSmode.wmf
FACP
Figure 3.1 Block Diagram of LCD2-80s in ACS Mode
To Next Page
