LCD2-80 Instruction Manual — P/N 53242:B1 10/25/2012 19
Section 4: Operating the LCD2-80
4.1 Displays
The display consists of four 20-space rows, 80 characters total. Following
are formats for different message types.
4.1.1 Terminal Mode
In terminal mode, the LCD2-80 directly displays event information from
the FACP terminal interface, without alteration.
4.1.2 ACS Mode
In ACS Mode, the LCD2-80 will display custom message labels from its
database.
Normal Message
Displays when the system has no off-normal events.
*Note: The LEDs operate in Terminal mode only when used with the NFS-
320, NFS2-640, and NFS2-3030/NCA-2. They do not activate for off-normal
events from legacy panels in Terminal mode.
*Note: If Acknowledge, Silence, and Reset switches are enabled for system
control, access security must be provided by mounting the LCD2-80 in a
locked fire alarm cabinet, or annunciator backbox model ABF-1B or ABS-
1TB with AKS-1B key switch option.
Display
Step/LampTest
Drill
*Acknowledge
*Signal Silence
*Reset
Alarm
Future Use
Supervisory
System Trouble
Point Disable
Signal Silence
Other
Future Use

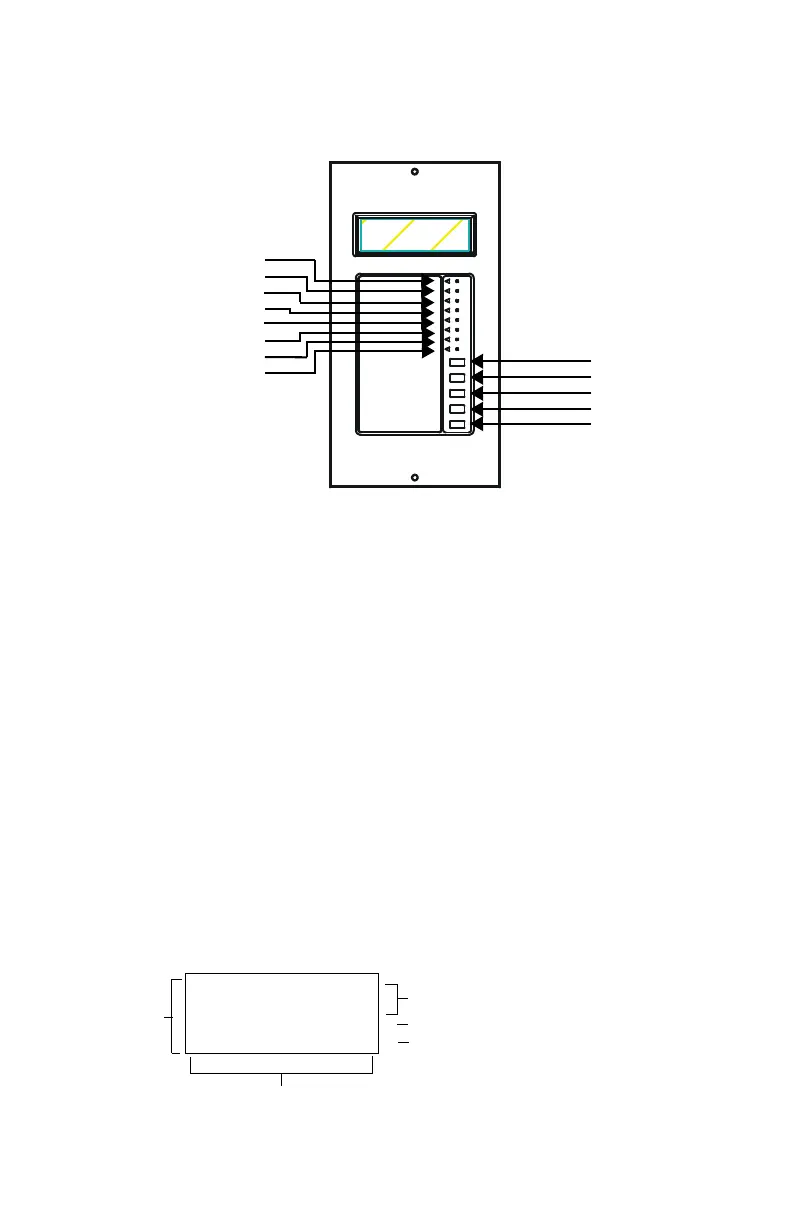

Figure 4.1 LED and Button Designations
LED Locations
(See “LED Indicators” on
page 10 for functions).
Buttons:
See “Buttons” on
page 21 below for
functions.
ROSEWOOD HOSPITAL
NORTH HALL FLOOR 3
ALL SYSTEM NORMAL
20 characters across
4 rows
40 character custom message 1
system normal banner custom message 2
blank
