Product Overview Board Layout
8 LCD2-80 Instruction Manual — P/N 53242:B1 10/25/2012
1.3 Board Layout
1.4 Power Specifications
Current Consumption @ 24 VDC
• Normal (no activity): 84 mA
• Lamp Test: 105 mA
• AC Fail (Piezo ON): 45 mA
• AC Fail (Piezo OFF): 28 mA
• Alarm (Piezo ON): 98 mA
• Alarm (Piezo OFF): 85 mA
Include these currents in your power supply loading and battery
calculations.
Address Switches (SW1, SW2)
See Section 1.6.3 on page 11
DIP Switches (SW3)
See Section 1.6.5 on page 11
AKS-1B (J2)
See Section 1.5.3
on page 10
Terminal Connections
(TB1, TB2)
See Section 1.5.1 on
page 9.
Piezo Sounder (SP1)
See Section 1.6.2 on
page 11
LCD280wmodeswtch.wmf
NUP Connection (J3)
See Section 1.5.2 on page 10
ACS/TERM Mode Switch
(SW10)
See Section 1.6.4 on
page 11.

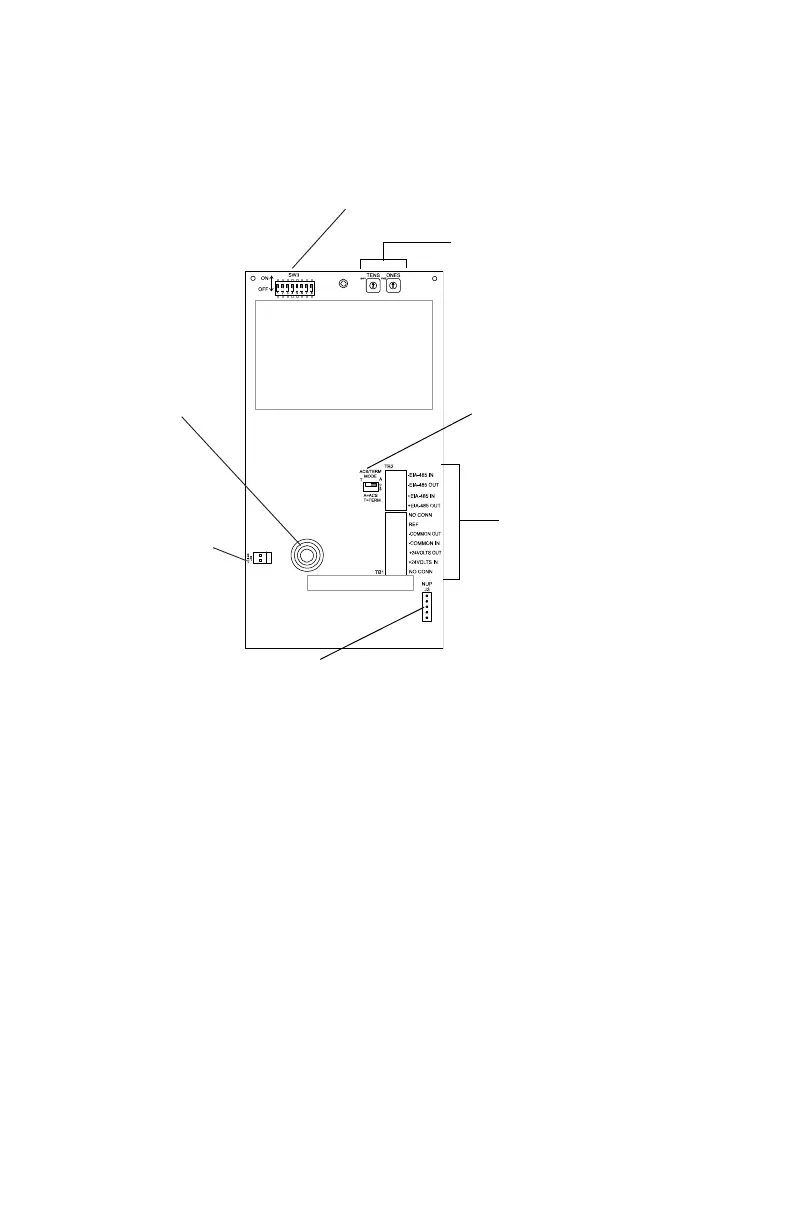

Figure 1.1 LCD2-80 Board Layout
