For bypass of security zones, use the DISABLE routine (covered in the Status Change section of
the NFS2-640/E Operations Manual) for Security type devices.
4.6.2 Installing a Security Tamper Switch
To wire the cabinet with a Security Tamper Switch kit model STS-1, refer to Figure 4.5:
1. Install the STS-1 Tamper Switch onto the side of the backbox opposite the door hinge, pushing
the switch through the opening until it snaps into place.
2. Install the magnet on the same side of the cabinet door as the lock. Push the magnet through
the opening in the door until it snaps into place.
3. Connect the STS-1 connector to J5 (Security Tamper) on the Control Panel. (As shown in
Figure 4.5, J5 is located on the circuit board, underneath the edge of KDM-R2.)
4.6.3 Receiving Unit
For applications requiring transmission of security alarm information to a central receiving unit, the
control panel may be connected via the UDACT or UDACT-2 to a compatible receiving unit (see
the UDACT Manual or UDACT-2 Manual). For information on configuring the Receiving unit for
Combination Fire/Security applications, refer to the documentation for that control panel.
4.6.4 Programming
The control panel can communicate with any number of security devices. To do so, program the
points as follows:
1. Select the address of the module(s) to be used for security.
2. Select the Type Code
SECURITY.
!
WARNING:
Damage can result from incorrect wiring connections.
J5J6
LED1
LED2 LED3 LED4 LED5 LED6 LED7
CPU2-640-sts1_CPS.wmf
STS-1 mounting location
(side opposite of door hinges)
Connect to
J5 “Security Tamper”

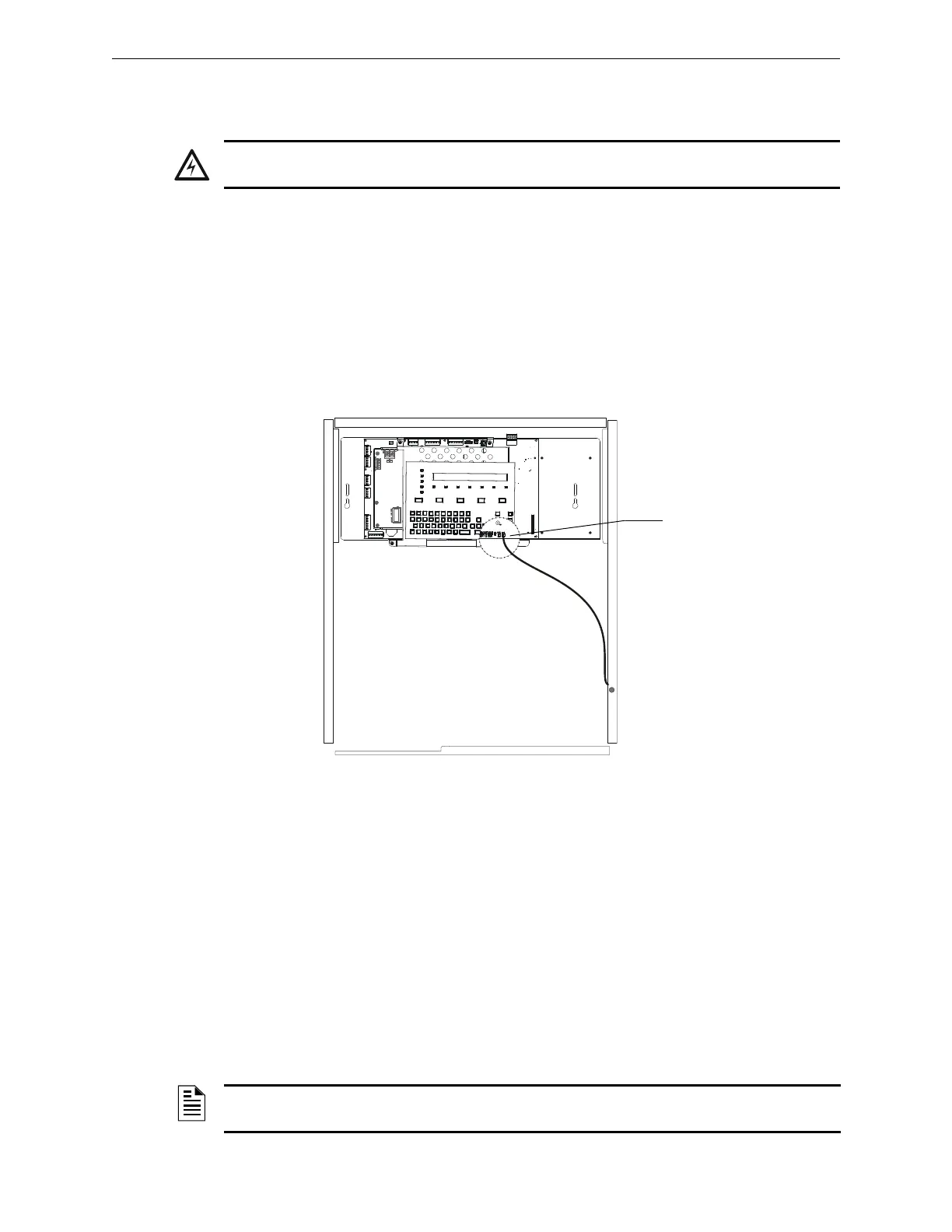

Figure 4.5 Installing the STS-1 Security Tamper Switch
NOTE: For detailed instruction on programming Type Codes, refer to the NFS2-640/E
Programming Manual.
