54 NFS2-640/E Installation Manual — P/N 52741:P2 7/10/14
Applications Fire/Security Applications
4.6.5 Wiring for Proprietary Security Alarm Applications
Table 4.6 shows typical wiring for proprietary security alarm applications with FMM-1 modules.
Note the following:
• The module is programmed with software
SECURITY Type Code.
• For use with UL listed systems only; application not for ULC security usage.
• NAC devices used for security cannot be shared with fire NAC devices.
• Refer to the Device Compatibility Document for compatible NAC devices.
• All monitor modules used for security application must be installed in the NFS2-640/E cabinet
with STS-1 Security Tamper Switch.

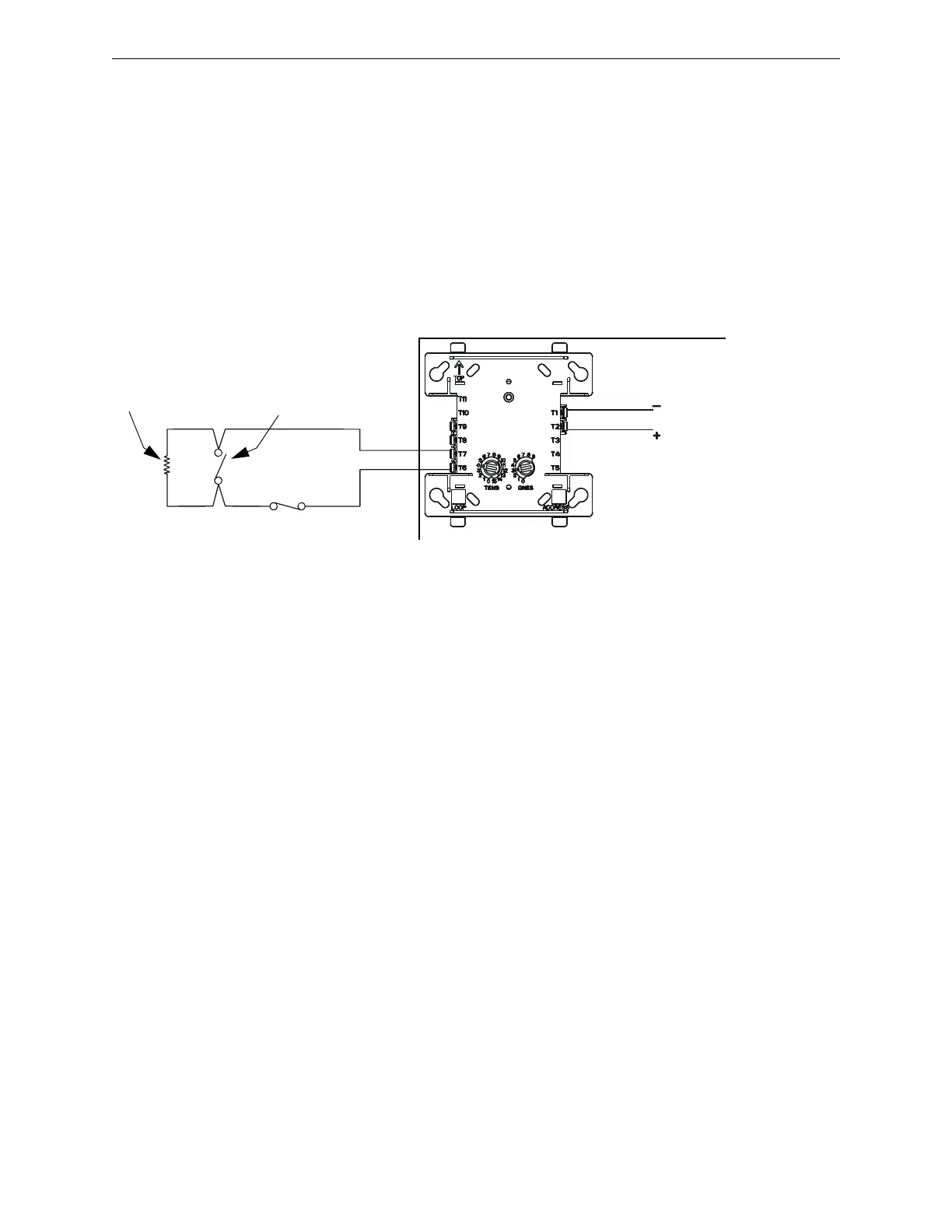

Figure 4.6 Wiring Diagram for Proprietary Security Alarm Applications
FlashScan Monitor Module
UL-listed, normally-closed
security switch
UL-listed,
normally-open
security switch
SLC
Channel
A or B
NFS2-640/E Protected Premises Unit
CPU2-640-burgtpH.wmf
UL-listed 47K
End-of-Line Resistor
(provided with module)
*If the SLC device does
not match the one in this
figure, refer to the SLC
manual appendix, which
contains wiring conversion
charts for type V and type
H modules.
