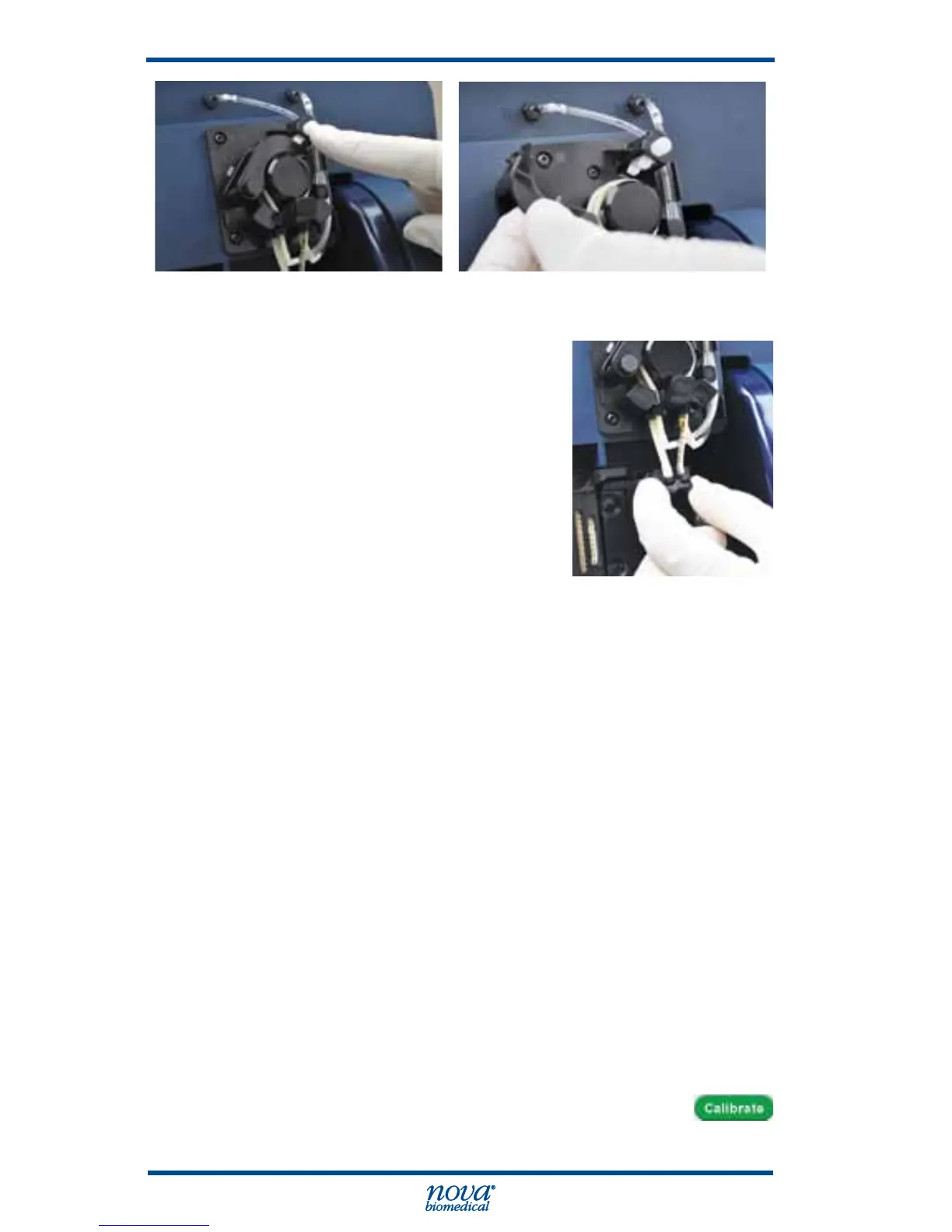

Figure 5.2 Release Pump Tubing Pressure Plate
3. Disconnect the Waste-line
and Reference-line above
the pump.
4. Disconnect the pump tubing
manifold from the Reference
Sensor.
Figure 5.3 Disconnect Pump Manifold
5. Slide the pump tubing out by holding the tab of the
tubing clip.
6. Discard the used tubing assembly.
7. Stretch the 2 pump tubings around the pump and
slide the tubing clip into the slot under the pump.
8. Connect the W-line to the W-labelled outlet above
the pump.
9. Connect the R-line to the R-labelled outlet above
the pump.
10. Reconnect the W-pump and R-pump manifold to
the top of the Reference Sensor.
11. Close the pressure plate until you hear it click into
place.
12. Place the W and R lines into the hold positions on
the right side of the pump as shown in Figure 4.5.
13. Close the door and press the Calibrate
icon.
