5.2 Probe Replacement
If the probe or air detector becomes damaged, replace it.
Use the following procedure when replacing the probe or
the air detector.
1.
From the Home screen, press
the Tool Box icon.
From the System Menu select
Replace Probe and wait for
pump to stop.
2. Remove the capillary adapter
from the front of the probe by
gently pulling.

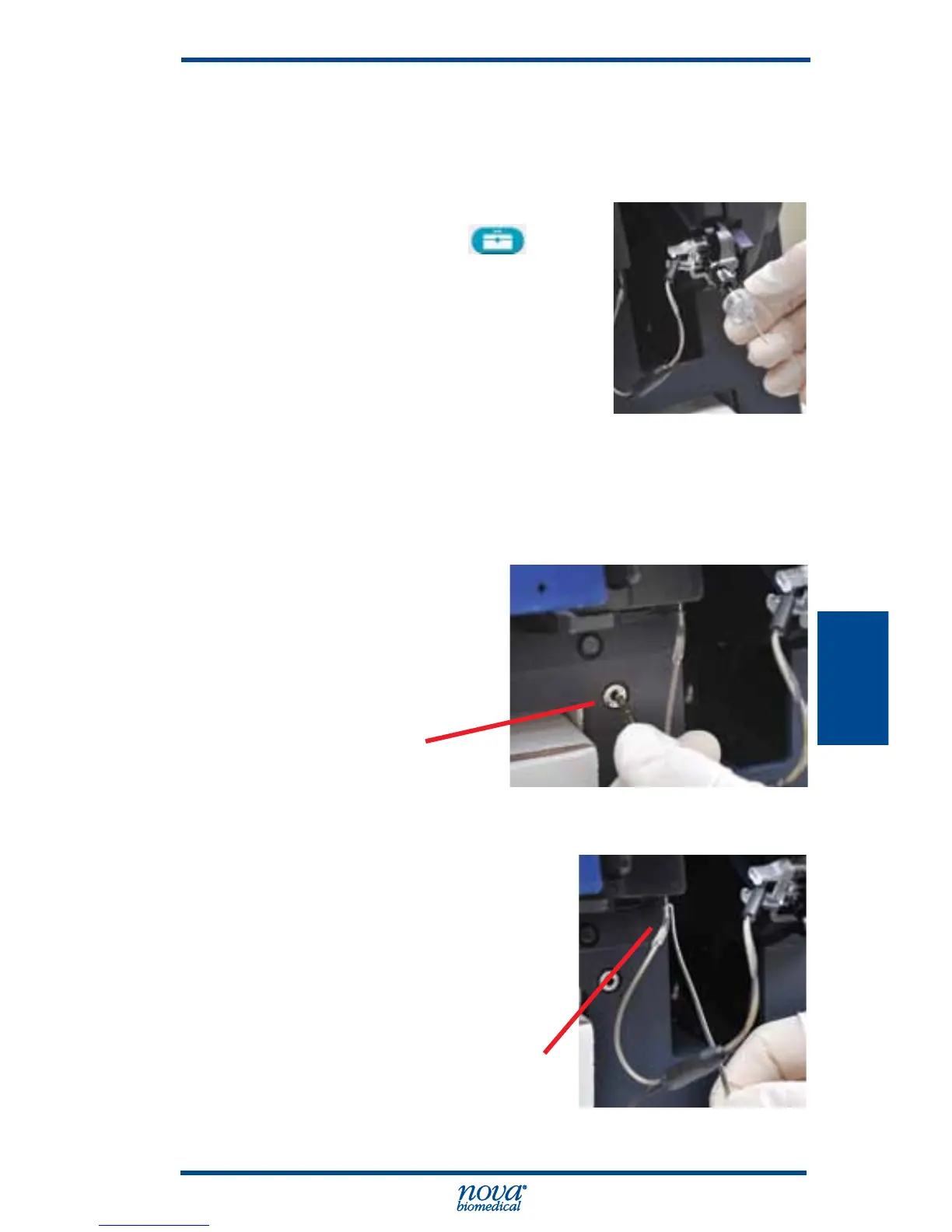

Figure 5.4 Removing Capillary Adapter
NOTE: Capillary Adapter is usually changed with the
Calibrator Cartridge since a new capillary adapter
comes with the cartridge.
3. Disconnect the
cable of the air
detector from the
analyzer.
Figure 5.5 Disconnect the Cable of the Air Detector
4. Disconnect the air
detector's sample line
from the Reference
Sensor module using the
removal tool attached to
the door.
Figure 5.6 Removing Sample Line from Reference Sensor
Cable of Air Detector
to Analyzer
S-Line with Connection
to Reference Sensor
To Next Page
