c. Post-Processing

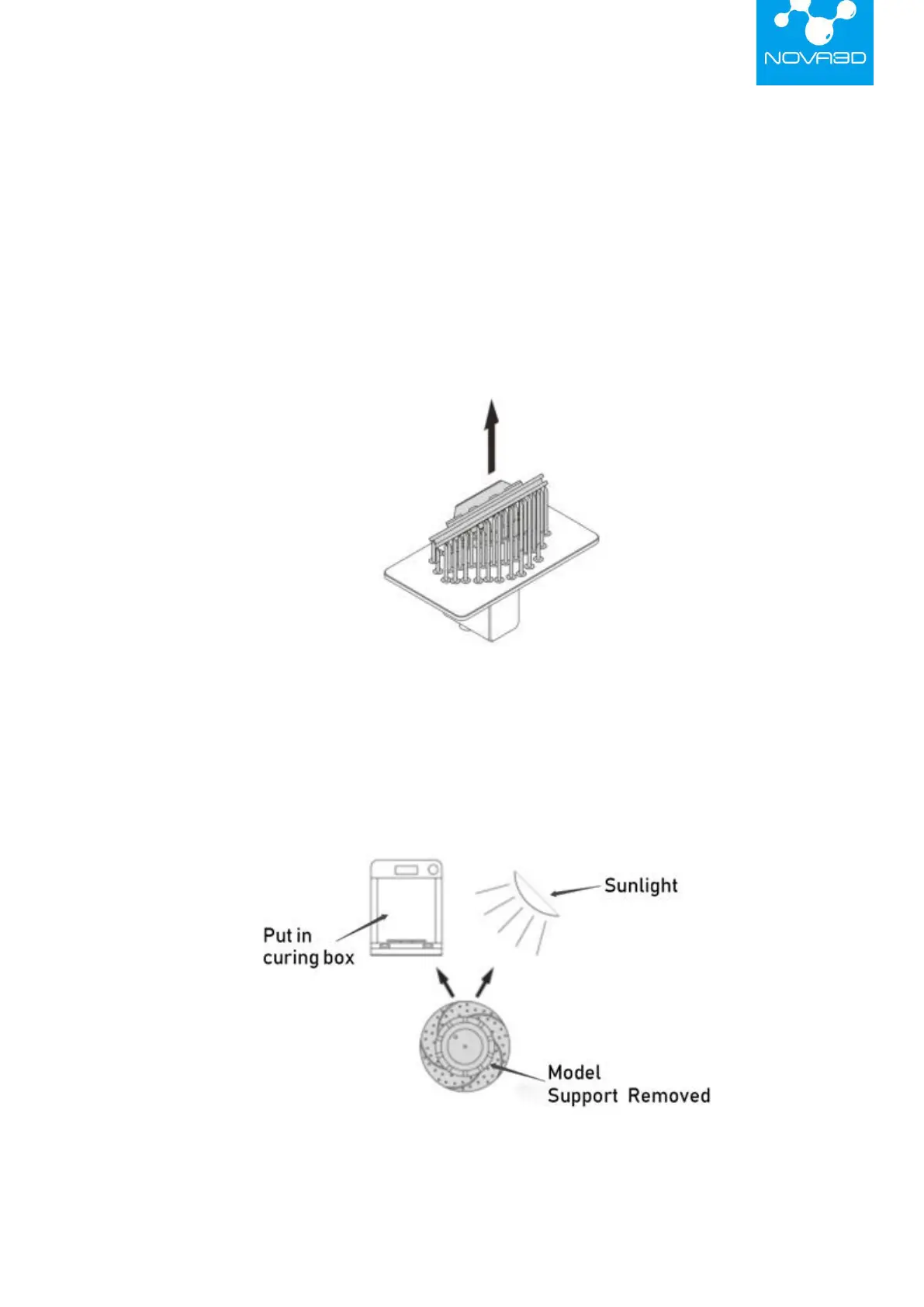

1. Wear safety gloves and use a cutting knife to carefully remove the model from the platform.
Then clean it with high concentration of industrial alcohol (above 95%) and blow-dry the
surface alcohol. The cleaning is finished until the surface of the model is dry without oily.
Otherwise, follow the steps above to continue cleaning and blow-drying. Be careful not to
expose the model to the UV light before cleaning.
2. Put the model in the Curing box or in any source of UV light (e.g. direct sunlight).
Depending on the type of resin you’ve used for printing and the application requirements, this
step is optional.
3. Remove the resin vat and pour the resin left in the vat through the filter and funnel. If it’s
necessary, use a plastic spatula. Once you finish, clean the resin filter in a liquid detergent. If
