27
ML0044B December 1, 2017 Copyright 2016 Bitronics, LLC
2.0 PHYSICAL CONSTRUCTION & MOUNTING
The PPX II are packaged in rugged aluminum case specifically designed to meet the
harsh conditions found in utility and industrial applications.
The connection view is shown in Figure 3A and 3B (depending on options) for the
standard chassis and Figure 3C for the extended chassis. The mechanical dimensions
are shown in Figures 4A (standard chassis) and 4B (extended chassis).

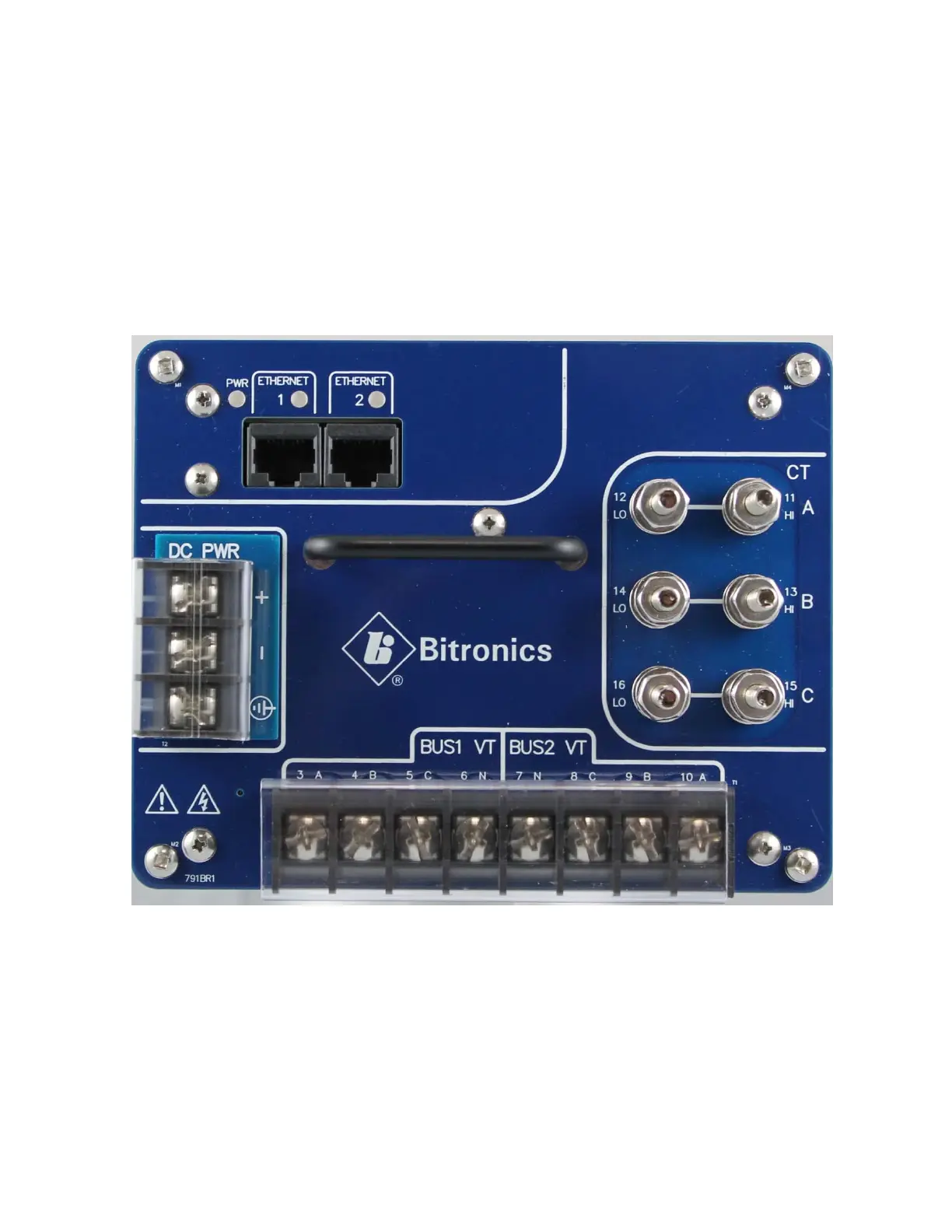

Figure 3A – PPX II Connection View (Low Voltage)
