4.4 Performing set-up through the web page interface
This section will assume you are able to use the factory default IP address of
192.168.0.171 to connect to the web page using an HTML web server. If this is not
the case you may need to refer to section 3.5.1 (Network settings) to change your
network configuration settings.
Enter the PPX II’s IP address into your internet browser to connect with the PPX II
web page interface. Internet browsers supported are Firefox, Internet Explorer, Safari
and Google Chrome. The Home page screen should appear as shown below.

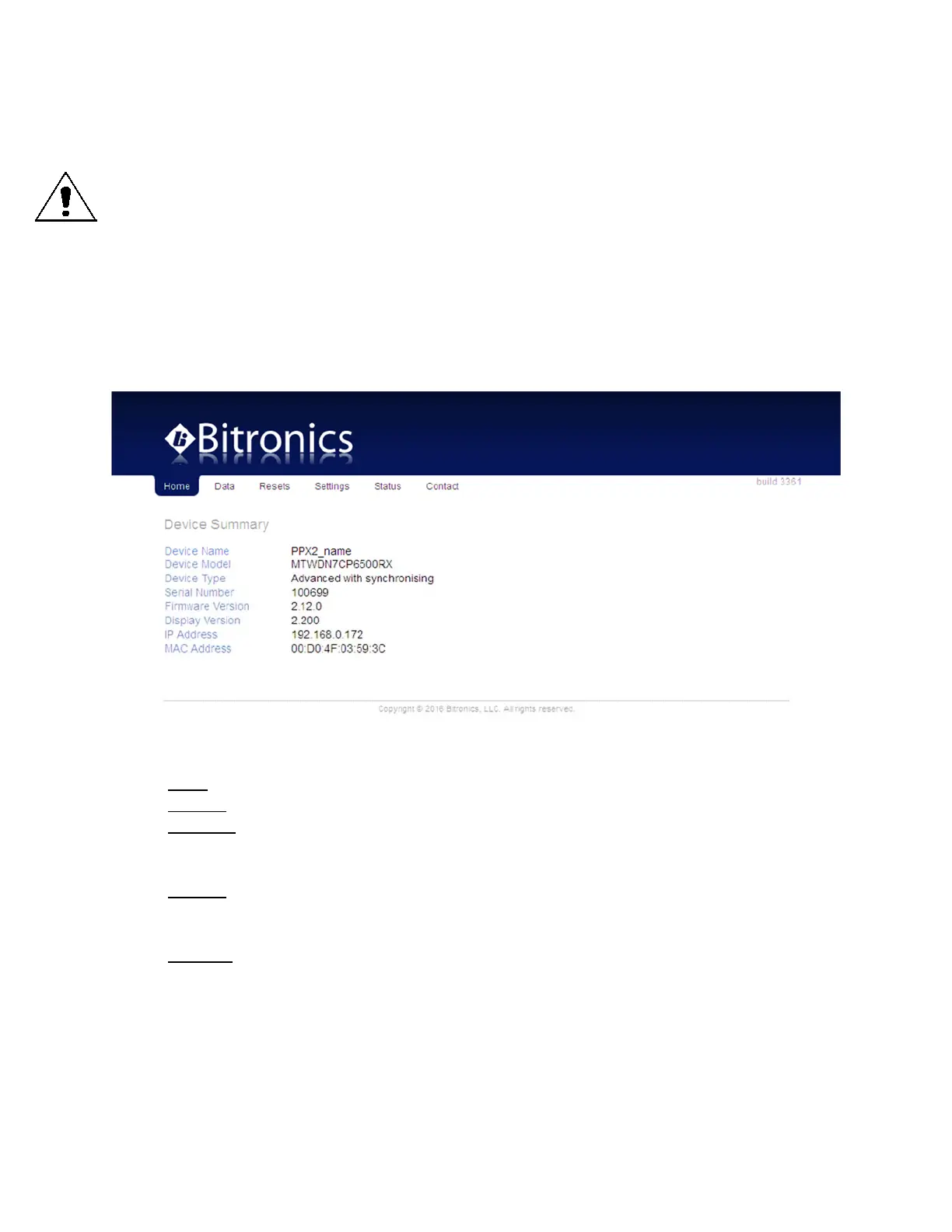

Home page:
From the home screen you can select from the following tabs:
Data – This page displays current data measurements
Resets – This page allows certain quantities to be reset
Settings – This page allows the user to change the configuration settings. Making
PPX II configuration changes require the unit to be rebooted.
Configuration settings for the PPX II are stored in flash memory.
Status – This page displays the status of the IEC 61850 communications
interface and the health status. If the meter does not include the IEC
61850 option, the status is displayed as ‘Model does not include option’
Contact – This page indicates how to contact Bitronics
NOTE: Some screen shots shown below may not exactly match the appearance of
those from your actual meter.
