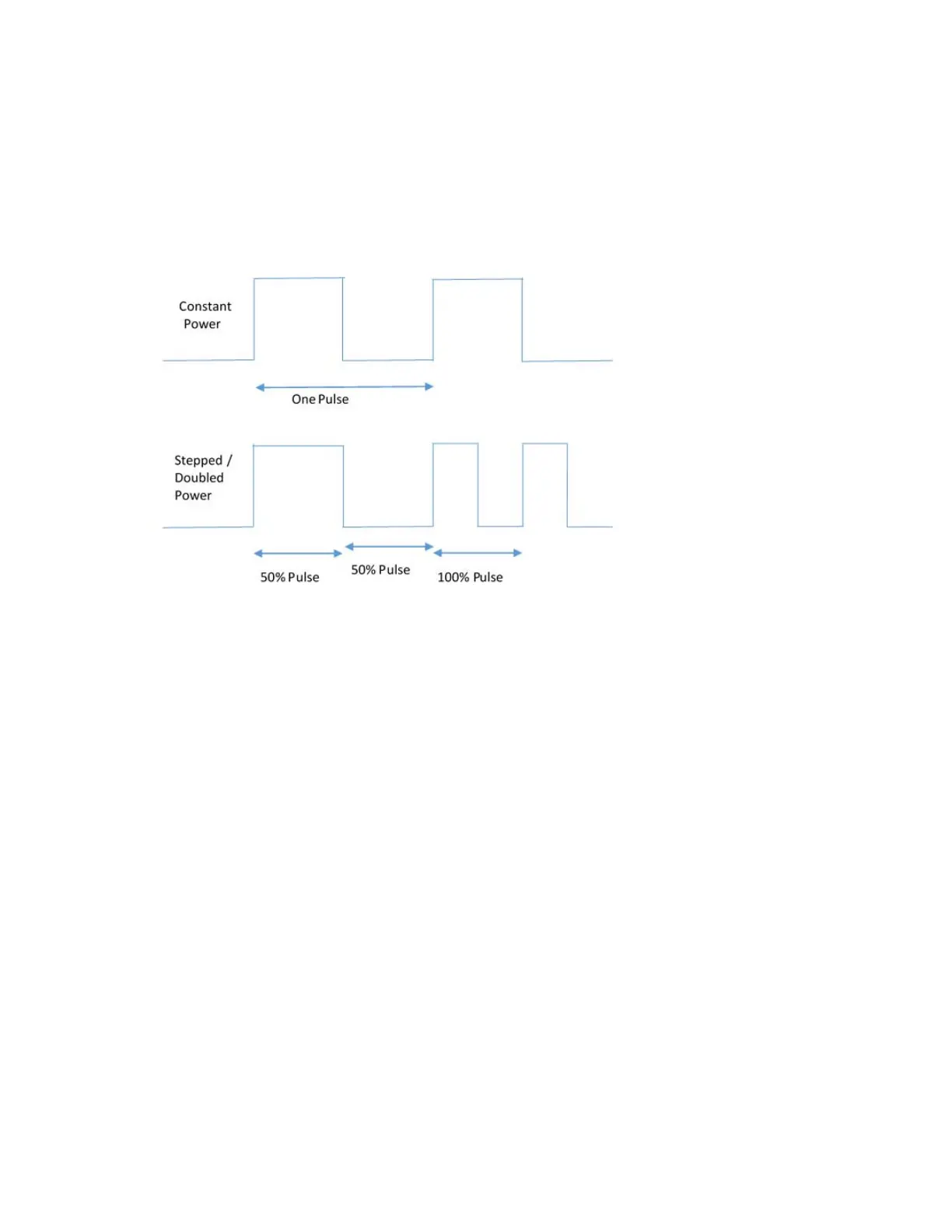

 The time between rising edges defines the length of the energy pulse as shown

below.

 Shorter pulses indicate a faster rate of consumption as shown in the stepped

power square wave.
