71
ML0044B December 1, 2017 Copyright 2017 Bitronics, LLC
IEC61850: (If option is purchased)
IED Capability Description (ICD) file: The PPX II ICD file is an IEC61850 Substation
Configuration Language (SCL) file which contains the IEC61850 'capability'
description of the PPX II IED. It is used by the IEC61850 IED Configurator tool to
perform an IEC61850 configuration. The ICD file is stored on the PPX II IED in flash

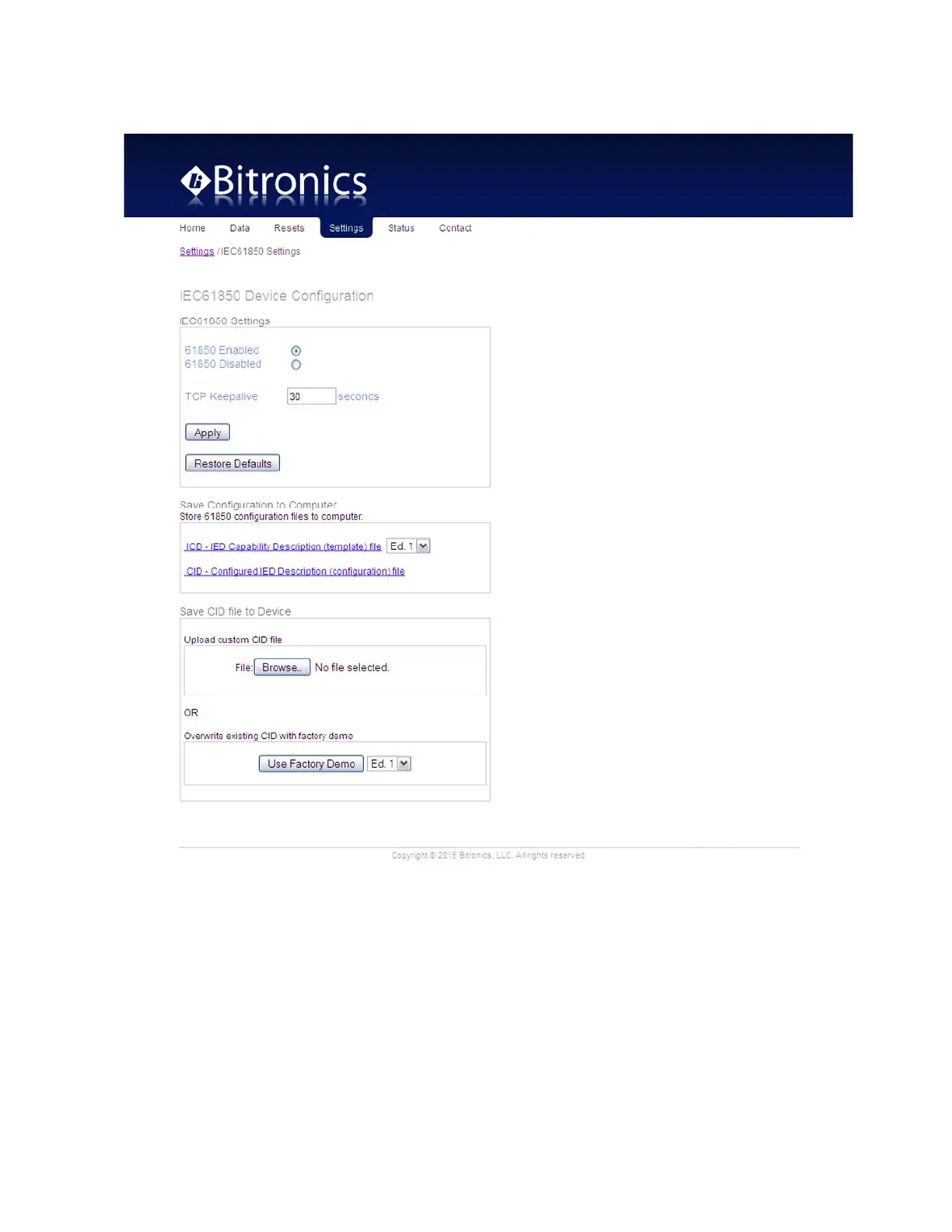

memory. The ICD file can be downloaded from the IED using the built-in web interface.
The IEC61850 IED Configuration tool uses the ICD file as a template from which it
can create an IEC61850 device configuration. After configuration is completed and
verified, the user should export that configuration as a CID file to the local PC.
