Status Page:

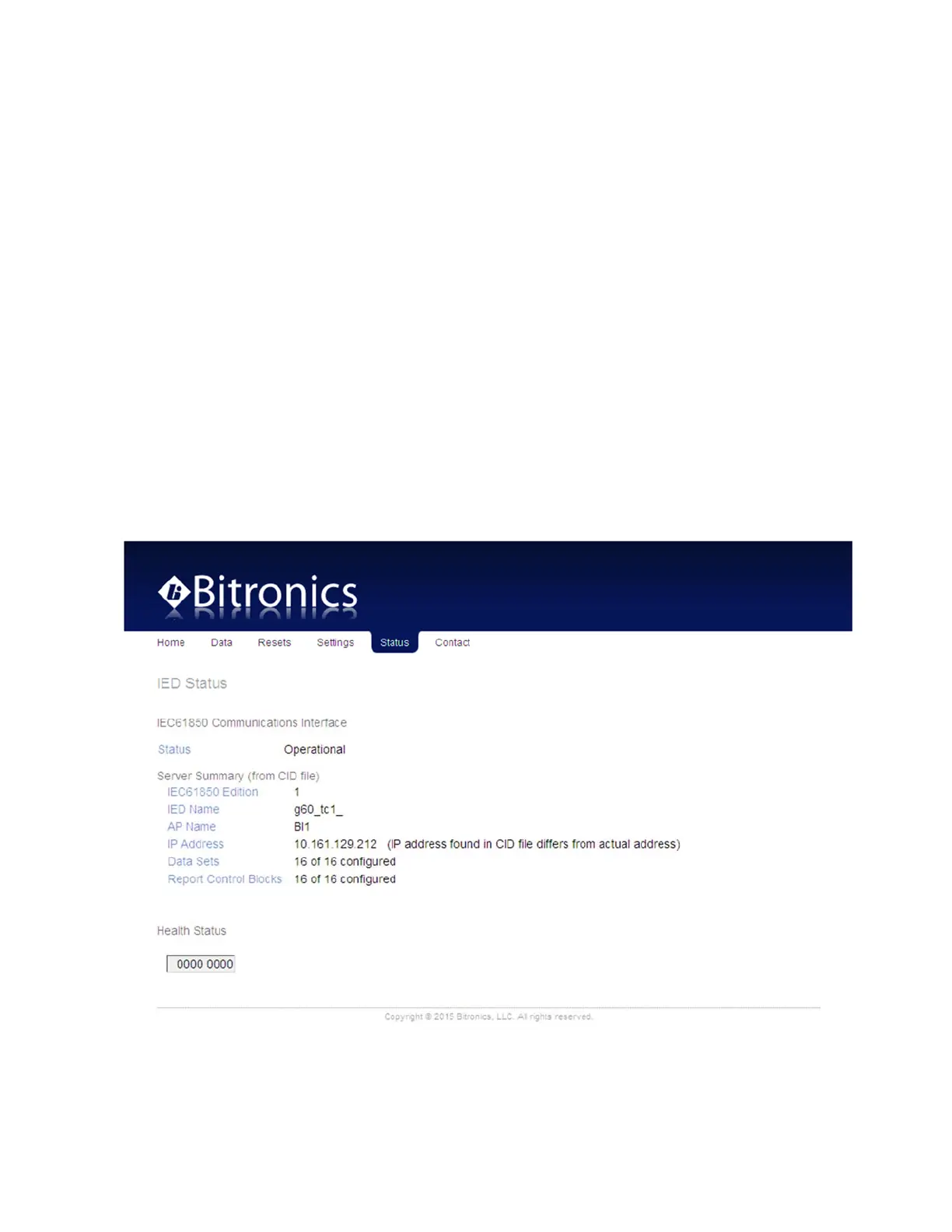

The IED Status page shows the status of the IEC61850 communications interface (if
option ordered) and the health status. The IEC61850 status states are Operational
and Not Running. When the 61850 stack is not running, the reason is displayed. When
the 61850 stack is not able to start due to an error, the startup log is displayed for
additional detail.
In the PPX II, the firmware upgrade and measurements offline bits have been
separated. A protocol configuration error bit has also been added.
0, "Analog output calibration error"
2, "Gain calibration error"
4, "Phase calibration error"
12, "Firmware upgrade in progress"
13, "Measurements offline"
15, "Protocol configuration error"
