NPK E Series - Skid Steer Hammer Flow Control Valve (Optional)

- 13 -
HYDRAULIC INSTALLATION
SKID STEER HAMMER FLOW CONTROL VALVE (OPTIONAL)

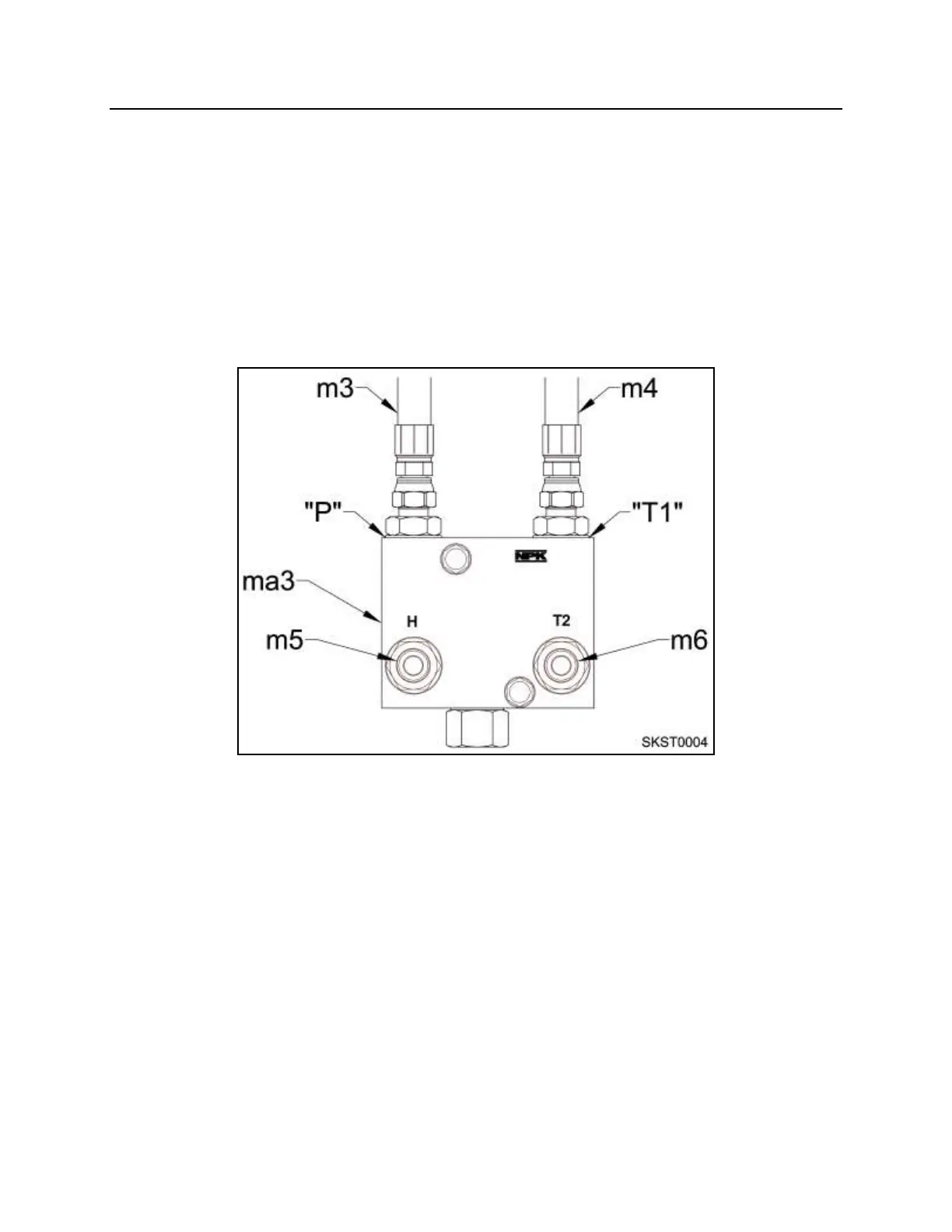

On skid steers where auxiliary flow is excessive for the NPK hammer model, an NPK
flow control valve (ma3) is recommended.
NOTE: Be sure that the pressure (m3) and return (m4) lines are properly routed.
Inlet pressure connects to port “P” on the NPK flow control valve. Regulated flow from
valve port “H” (m5) connects to the “IN” port on the NPK hammer. The “OUT” port on
the hammer connects to port “T2” (m6) on the flow control valve. Port “T1” connects
to the return line (m4) on the skid steer.
