- 40 -

OPERATION

OPERATING TECHNIQUES & PRECAUTIONS

TAMPER PAD OPERATION

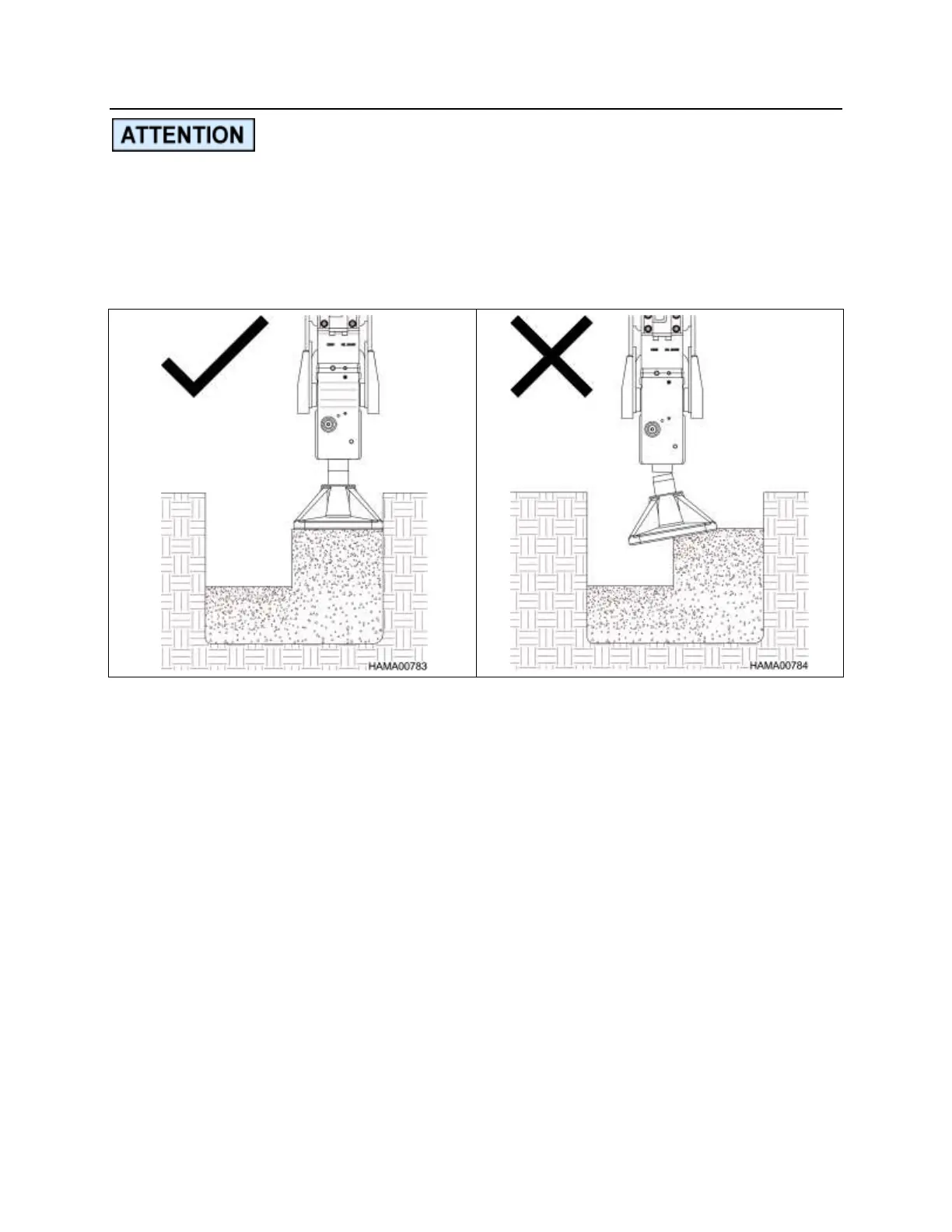

Always use the full width of the pad when compacting. Using part of the pad to compact

can cause adapter tool breakage.
