STRUCTURE

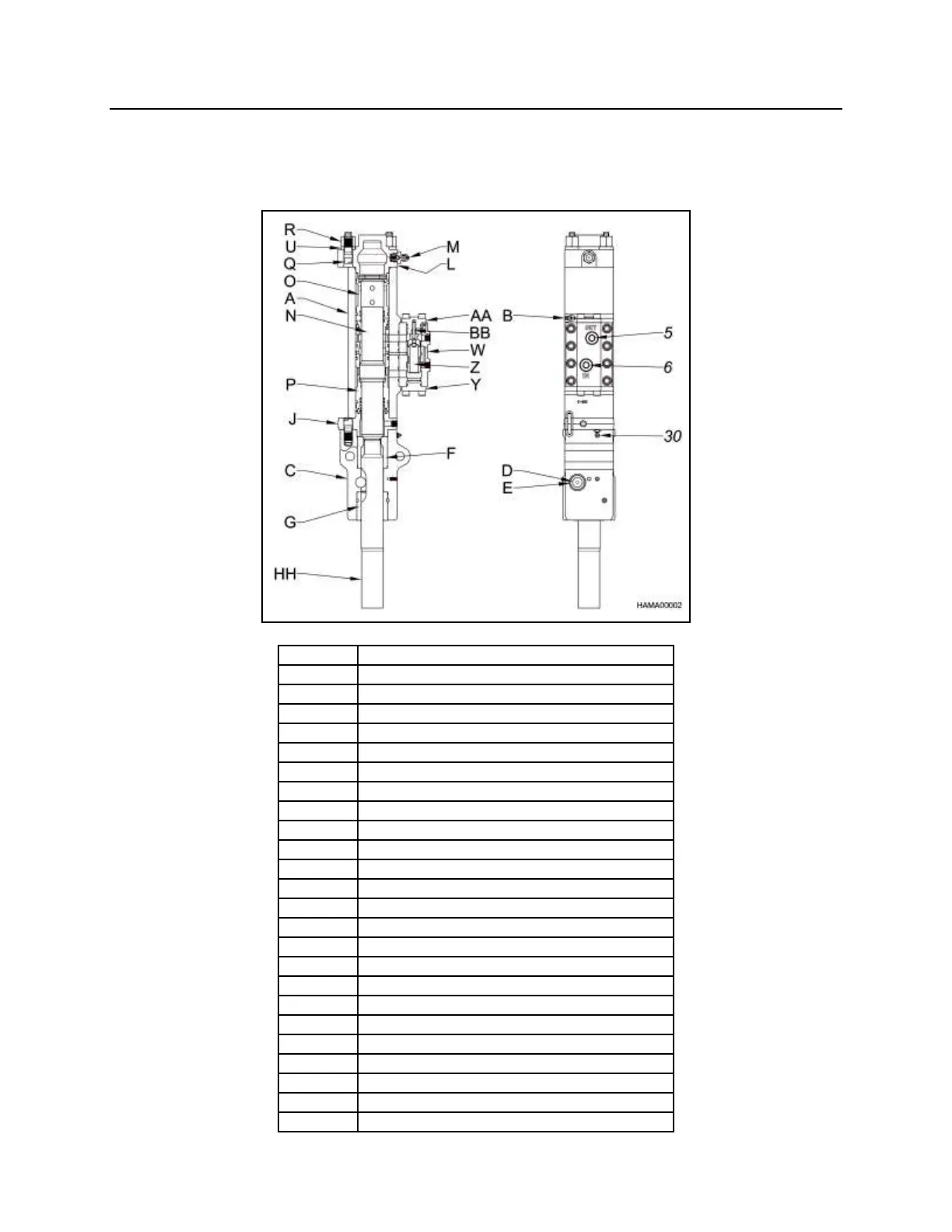

STRUCTURAL DRAWING
MODELS E200 – E203
5
OUT PORT
6
IN PORT
30
GREASE FITTING
A
MAIN BODY
AA
PLUNGER BUSHING
B
DRAIN PLUG
BB
PLUNGER
C
TOOL HOLDER
D
RETAINING PIN
E
RETAINING RING
F
UPPER TOOL BUSHING
G
LOWER TOOL BUSHING
HH
TOOL
J
IMPACT RING (SPACER SECTION)
L
GAS HEAD
M
CHARGE VALVE
N
PISTON
O
MAIN BODY SLEEVE (A)
P
MAIN BODY SLEEVE (B)
Q
TIE ROD
R
TOP NUT
U
WASHER
W
VALVE BODY
Y
VALVE BOTTOM CAP
Z
VALVE SPOOL
