NPK E Series - Mounting Installation; BACKHOES and EXCAVATORS; Skid Steers; Removal from the Carrier

- 17 -

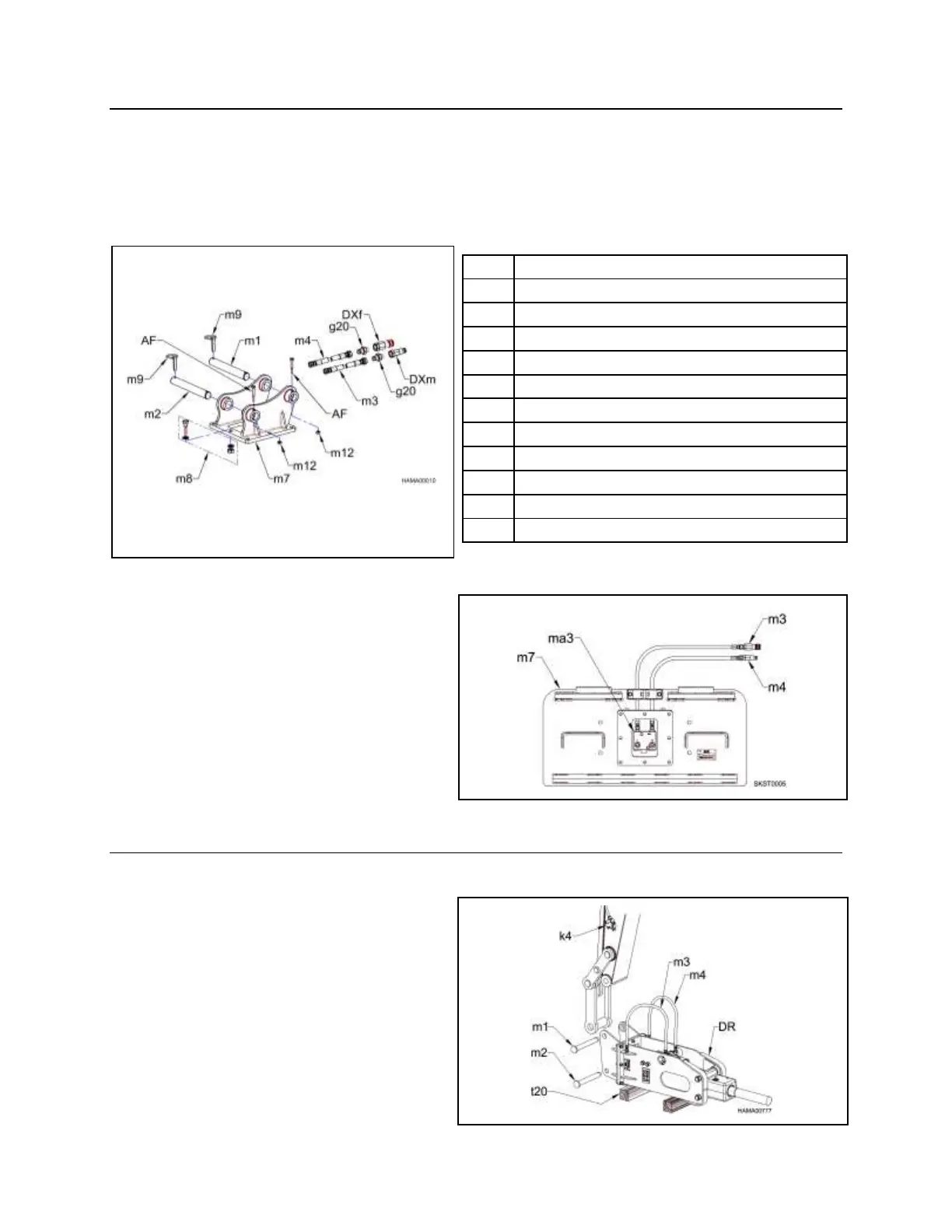

MOUNTING INSTALLATION
NPK Mounting Installation Kits include the parts required to adapt the NPK HYDRAULIC
HAMMER to the carrier. NPK mounting kits include the hammer mounting bracket,
mounting pins (optional), flow control valve (optional), and hoses to connect to the
carrier hydraulic system (optional).
BACKHOES and EXCAVATORS
AF
HEX HEAD CAP SCREW (if required)
DXf
FEMALE QUICK DISCONNECT (if required)
DXm
MALE QUICK DISCONNECT (if required)
g20
MALE ADAPTER (if required)
m1
STICK PIN (if required)
m2
LINK PIN (if required)
m3
WHIP HOSE (pressure)
m4
WHIP HOSE (return)
m7
TOP BRACKET
m8
HAMMER BOLT PACKAGE
m9
KLIK PIN (if required)
m12
HEX NUT (if required)
SKID STEERS
NPK Mounting Installation Kits for skid
steers include parts required to adapt
the NPK HYDRAULIC HAMMER to the
carrier. NPK mounting kits include the
hammer mounting bracket (m7), and
hoses (m3 and m4) to connect to the
carrier hydraulic system. The flow
control valve (ma3) is optional.
REMOVAL FROM THE CARRIER
BACKHOES and EXCAVATORS
1. Close pressure and return line shut-
off valves (k4) if available.
2. Disconnect hydraulic hoses (m3 and
m4) before laying the hammer down.
3. Cap the pressure and return lines on
the carrier and connect the hammer
whip hoses to the hammer bracket.
4. Position the hammer (DR) horizontal
on wood blocks (t20) and remove
stick (m1) and link (m2) pins.
