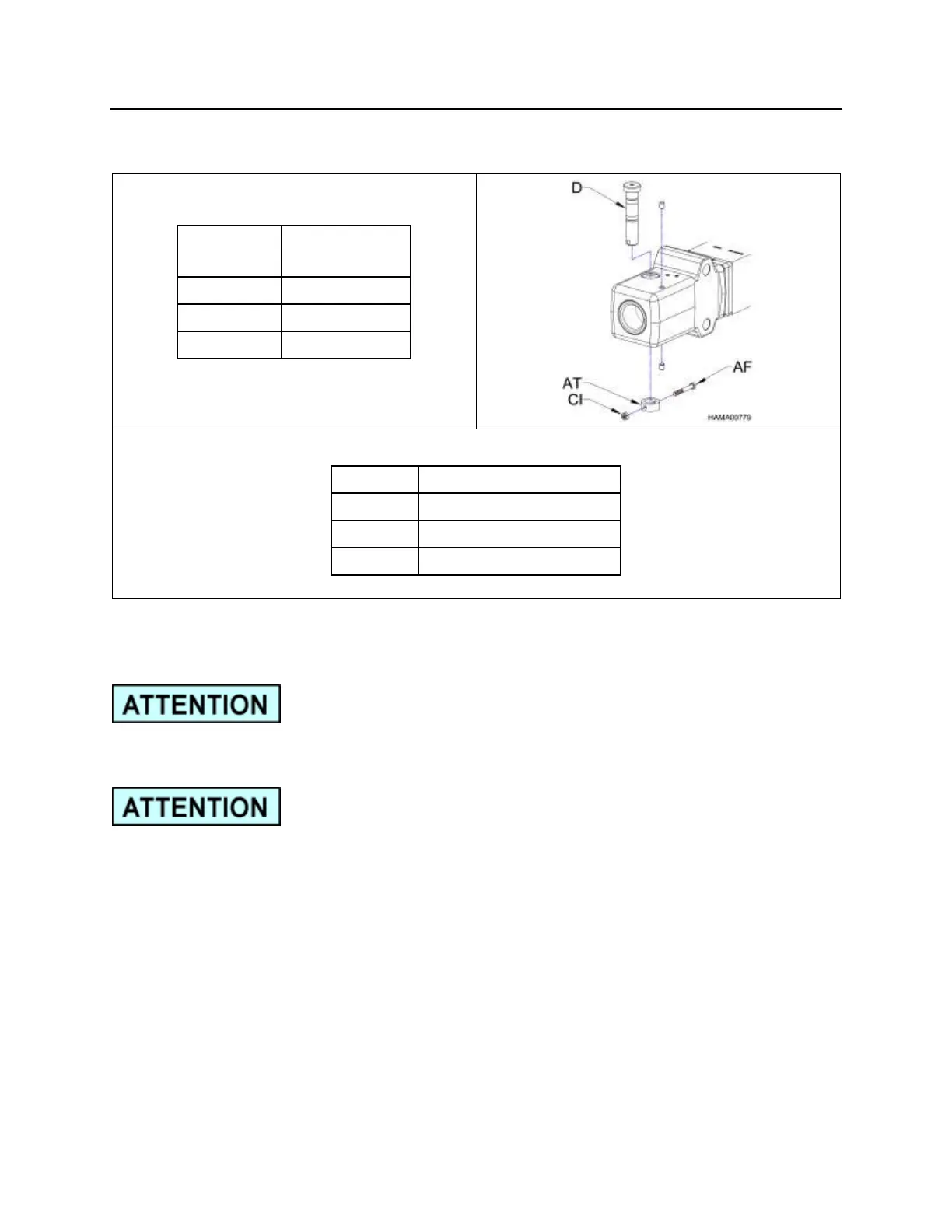

HIGH HEAT APPLICATION

NPK offers a high heat conversion kit for the E204 through E207 hammers.

HAMMER

KIT PART

MODEL

NUMBER

E204

E2040-9505

E205

E2050-9513

E207

E2070-8055

Kit includes:

Hex Head Cap Screw

Boom Pin Collar

Hex Nut

Retaining Pin

NOTE: No special seals are required. Standard seals will work with “MINERAL OIL”

based flame-retardant oil.

NOTE: Water glycol-based fluid may shorten seal life.

NOTE: Special protection for the hydraulic hoses is recommended.
