The HENRI service tool can either be connected to the payment system
on site in the vending machine or in the workshop by using a tester.
Connecting HENRI on site
In order to connect HENRI to a coin changer, plug the RJ-45 connector
(western plug) of the connecting cable into the socket on the top right of
the coin changer (see Fig. 2).
 As HENRI identiesthe connectedpayment system automatically
thedisplayshowsdevicespecicdataaftertheconnectionwiththe
payment system has been established.

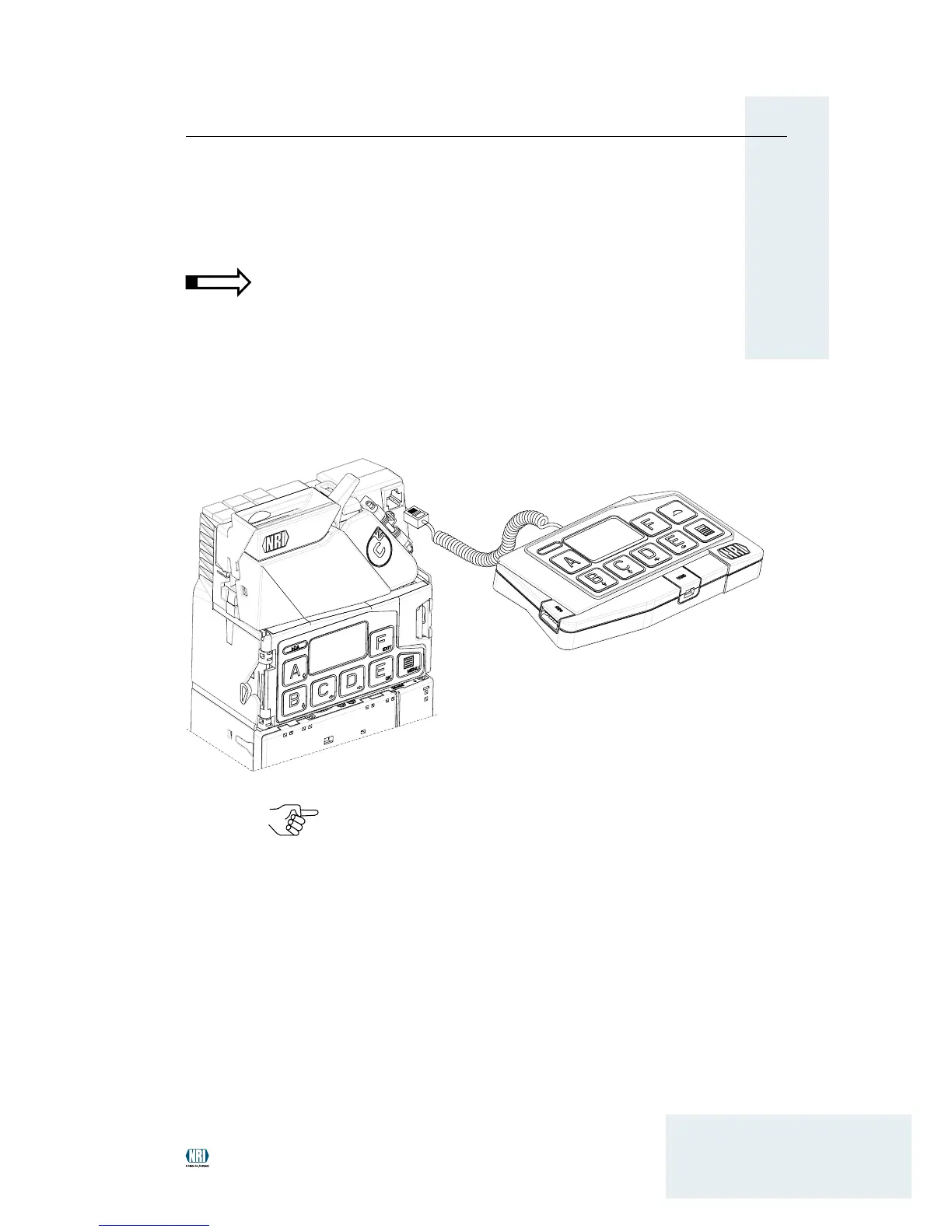

Connecting HENRI on siteFig. 2:
