NSD Varicam VS-5E Series User Manual

Function Description
External Origin Set
Function
Origin-point (zero-point) setting is executed by an external signal input.
(Standard VS-5EX function)
TEACH Setting
Switch ON/OFF positions are designated by actually moving the machine to
those positions.

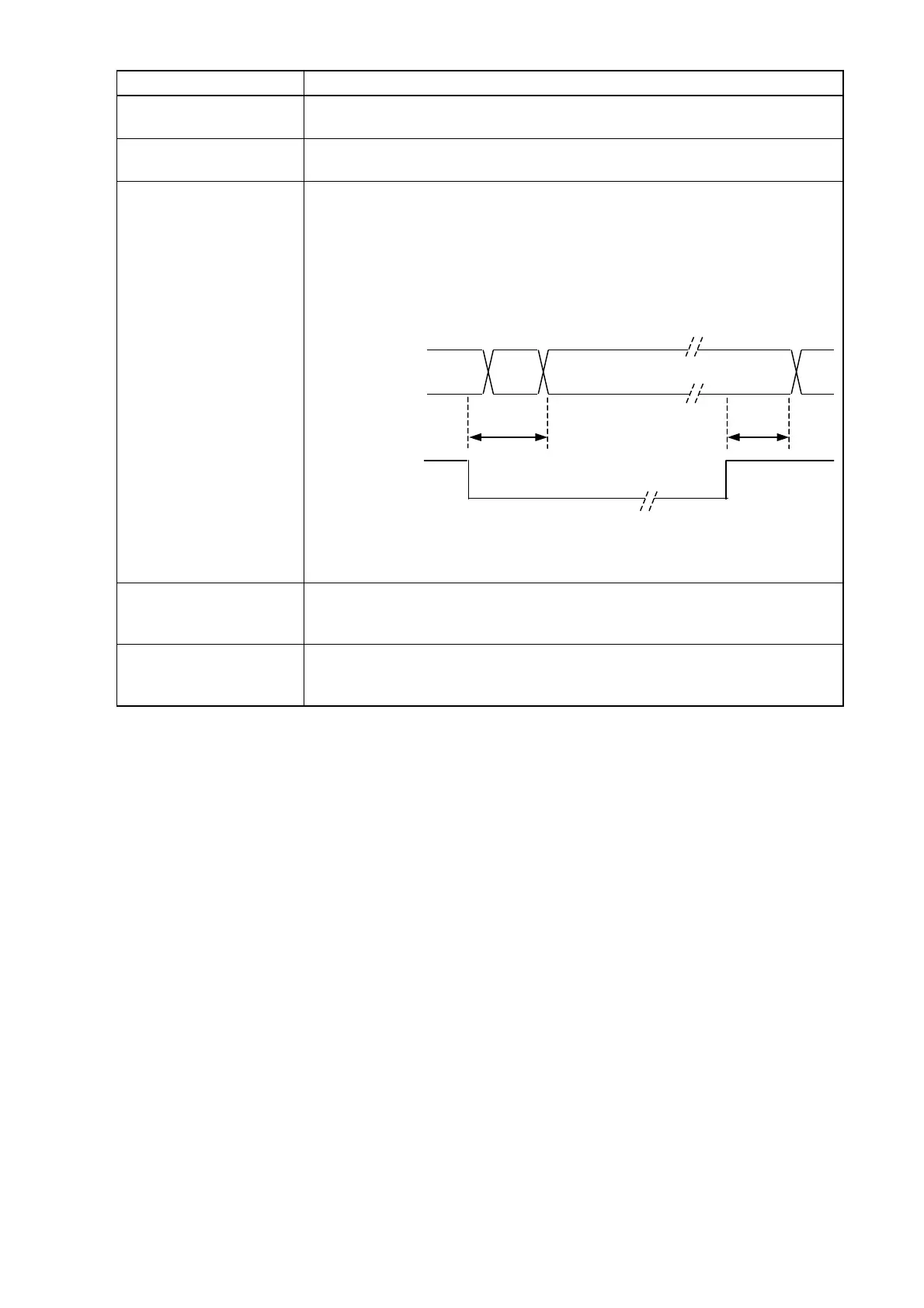

Current Position HOLD
Function
When the Programmable Controller reads the current position output, the
current position value changes faster than the Controller can scan the data,
making a correct reading impossible. To counter this problem, the HOLD
function prevents the current position value form changing when Controller
reading occurs.
(Standard VS-5ED and VS-5EX function)
Output HOLD Function
When the mode selector switch setting is changed from RUN to another
mode position, the output status which existed in the RUN mode will be
maintained.
Serial Communication
Function
An RS-232C connector is provided for copying the switch output settings to
the Host Controller as a backup measure. For details regarding serial
communication procedures, contact your NSD representative.
Current position
output
HOLD input
Data H
O
LD
t1
t2
●A-5●
