NSD Varicam VS-5E Series - Canceling Multi-Dog Settings

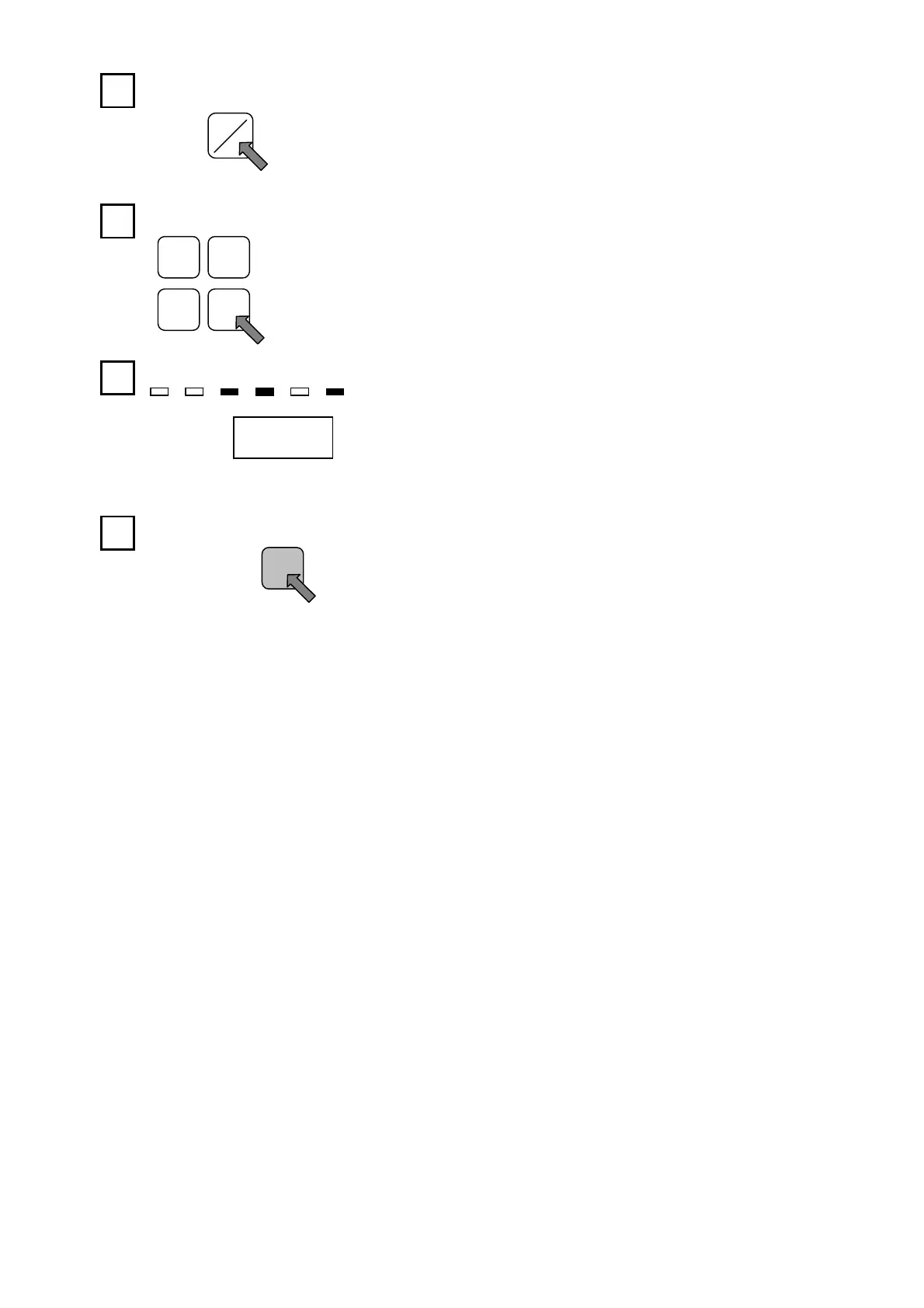

Press the [ON/OFF] key.
When the OFF LED is lit, the OFF position setting mode will be
established.
Press the POSITION key.
The current position value will be displayed.
Move the machine to the desired OFF position.
POSITION
Press the [SET] key.
The OFF position setting is registered.
Notes:
1. Multi-dog settings and deletions can also be executed with the key-switch set to the TEACH position.
(Refer to section 9-2-3 foe details.)
2. When the key-switch is set to the TEACH position, the current position output and the latch pulse will
be ON. If an output HOLD status is in effect, the switch output and timing pulse output statuses will be
maintained when a change from the RUN to the TEACH mode occurs. The System Ready output will
switch OFF at this time.
