OPERATION 9. HOW TO USE APPLIED FUNCTIONS (SWITCH OUTPUT)
9. HOW TO USE APPLIED FUNCTIONS (SWITCH OUTPUT)
Applied functions of the switch output are explained in this chapter.
Please use this chapter when needed.

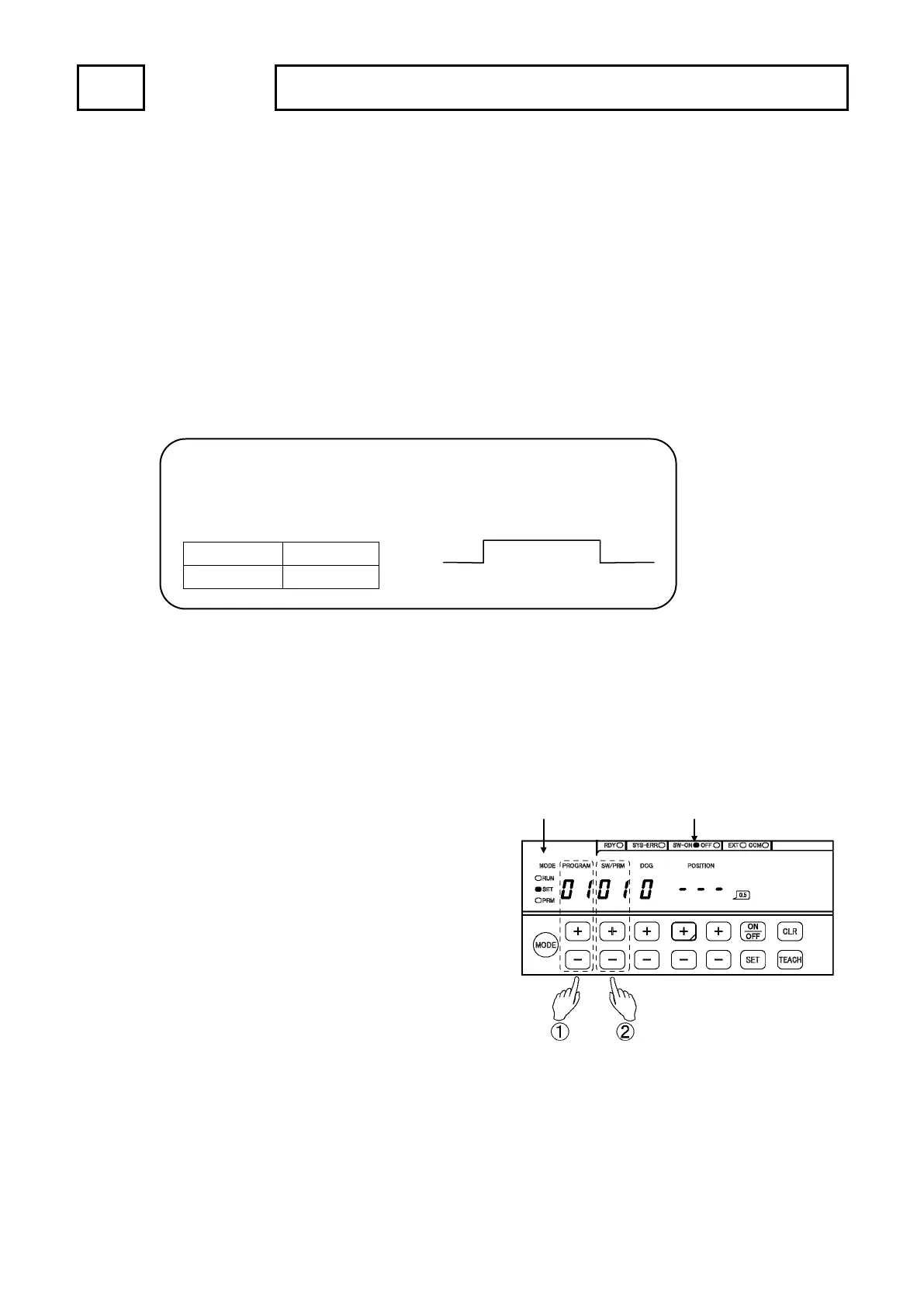

9-1. Sets by Teaching
This function is applicable with all VS-5F Series.
Designates the teaching setting of the switch output according to the following procedures.
Teaching contents of the setting example
Teaching setting of the switch output is designated in switch setting (SET) mode.
For mode selection methods, refer to the “7-6-1. Selects the Switch Setting (SET) Mode”.
①
Selects the program number.
Selects the program number by
pressing [+] or [-] key of PROGRAM.
Program number selection range
VS-5F(-1) : There is not any program function.
VS-5FD(-1) : 0 to 7
VS-5FX(-1) : 00 to 15 or 00 to 31
②
Selects the switch number.
Selects the switch number by
pressing [+] or [-] key of SW / PRM.
Switch number selection range
VS-5F(-1) : 01 to 24
VS-5FD(-1) : 01 to 24
VS-5FX(-1) : 01 to 40 or 01 to 24
Setting example
Program No. : 1
Switch No. : 1
ON angle 125.5°
OFF angle 234.5°
ON
OFF
125.5° 234.5°
SW-ON LED
is ON
SET LED
is ON
