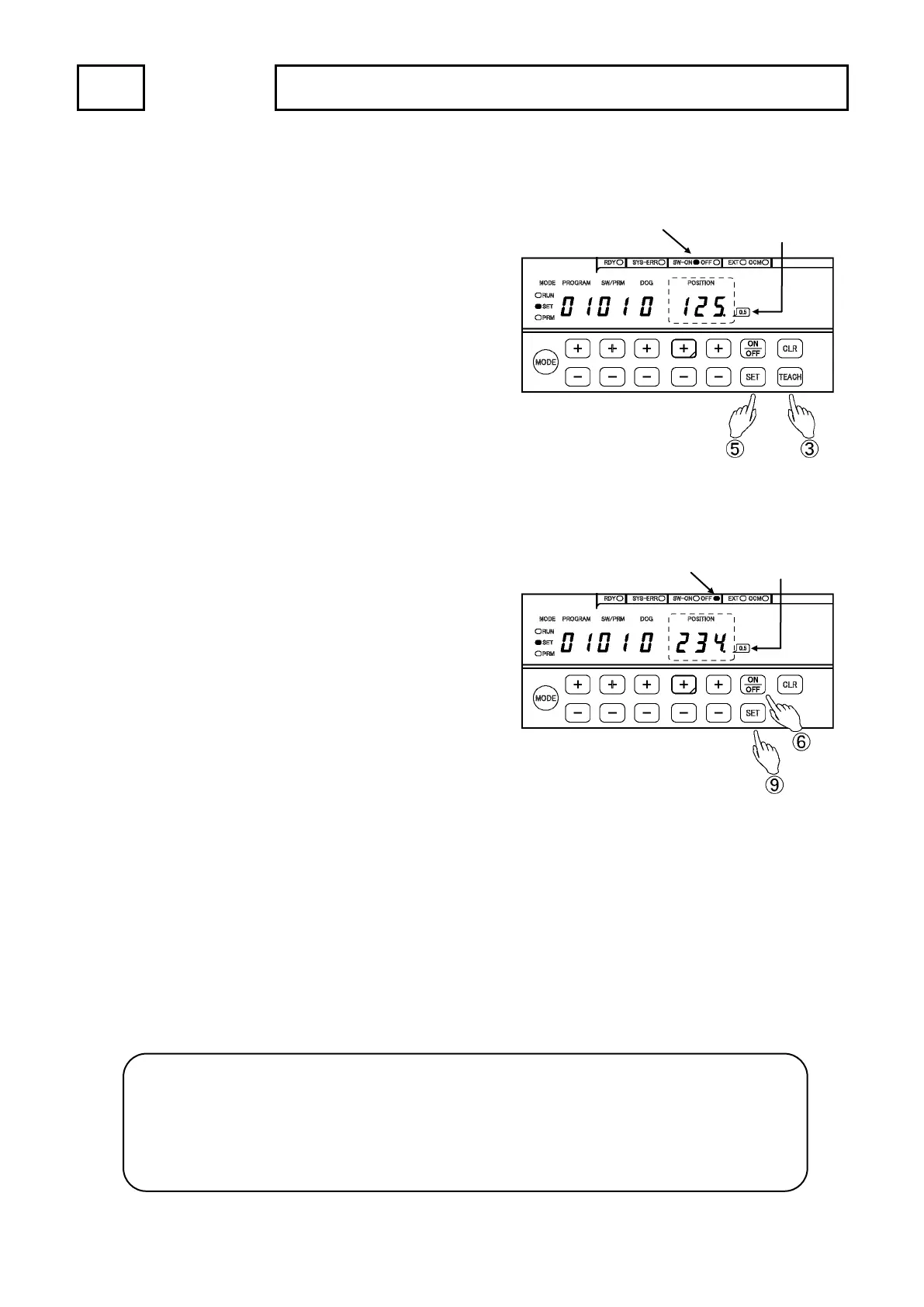

OPERATION 9. HOW TO USE APPLIED FUNCTIONS (SWITCH OUTPUT)
POINT
*1: SW-ON LED and OFF LED switch when [ON / OFF] key is pressed every time.
Turns ON the SW-ON LED when setting the ON angle.
Turns ON the OFF LED when setting the OFF angle.
Changes the teaching mode.
Presses [TEACH] key.
The current position value is displayed
at POSITION display area, and it's
blinking in high-speed.
Moves the machine to ON angle.
Moves the machine to the desired ON angle.
Enters the ON angle value.
Presses [SET] key, and then POSITION
display area turns ON.
The ON angle value is entered.
Turns ON the OFF LED. *1
Presses [ON / OFF] key in order to designate
the OFF angle. The OFF LED turns ON.
Do the
operation, and change the teaching
mode again.
Moves the machine to OFF angle.
Moves the machine to the desired OFF angle.
Enters the OFF angle value.
Presses [SET] key, and then POSITION
display area turns ON.
The OFF angle value is entered.
Repeats below procedure.
Repeats procedure ② to ⑨ until number of switches which you need.
Repeats procedure ③ to ⑨ after selecting dog No. when setting the multi-dog.
Operates from procedure ① when setting the switch output to different program.
SW-ON LED
Displays by 0.5°units
Decimal point is ON : 0.5°
Decimal point is OFF : 0.0°
OFF LED
is ON
°
Decimal point is ON : 0.5°
Decimal point is OFF : 0.0°
