OPERATION 9. HOW TO USE APPLIED FUNCTIONS (SWITCH OUTPUT)
9-2. Sets the Multi-Dog
This function is applicable with all VS-5F Series.

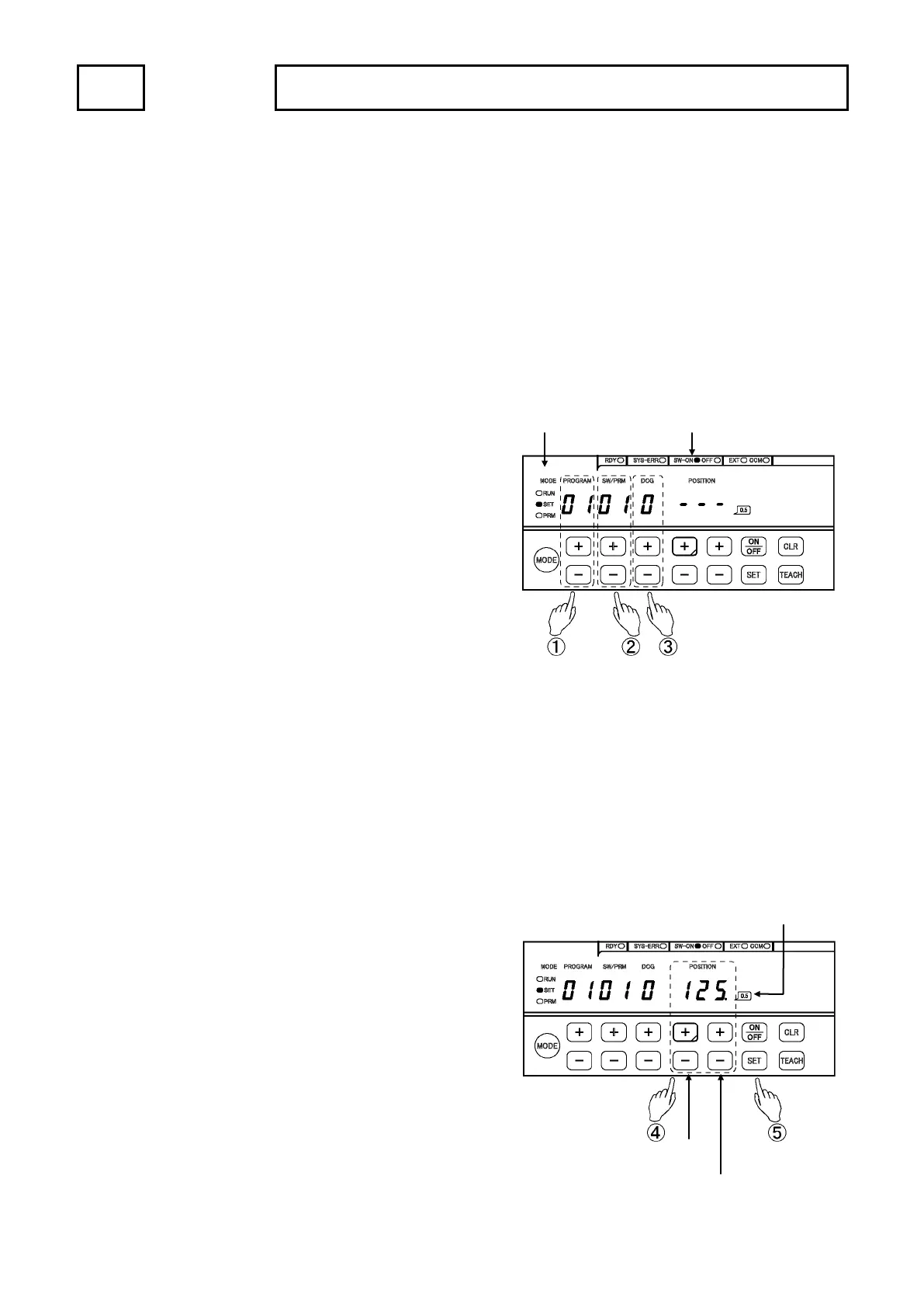

Designates the multi-dog by the following procedures.
The multi-dog setting of the switch output is set in the switch setting (SET) mode.
For mode selection methods, refer to the “7-6-1. Selects the Switch Setting (SET) Mode”.
Selects the program number.
Selects the program number by
pressing [+] or [-] key of PROGRAM.
Program number selection range
VS-5F(-1) : There is not any program function.
VS-5FD(-1) : 0 to 7
VS-5FX(-1) : 00 to 15 or 00 to 31
Selects the switch number.
Selects the switch number by
pressing [+] or [-] key of SW / PRM.
Switch number selection range
VS-5F(-1) : 01 to 24
VS-5FD(-1) : 01 to 24
VS-5FX(-1) : 01 to 40 or 01 to 24
Selects the dog number.
Selects the dog number by pressing [+] key
of the DOG.
DOG number selection range: 0 to 9
Inputs the ON angle value.
Inputs the ON angle value by
pressing [+] or [-] key of POSITION, and
then the value blinks in the POSITION
display area.
Setting range: 0 to 359.5°
If [CLR] key is pressed in this timing, the inputting
value will be canceled.
Enters the ON angle value.
Presses [SET] key, and then POSITION
display area turns ON.
The ON angle value is entered.
By 10°
units
By 0.5°
Displays by 0.5°units
Decimal point is ON : 0.5°
Decimal point is OFF : 0.0°
SW-ON LED
is ON
SET LED
To Next Page
