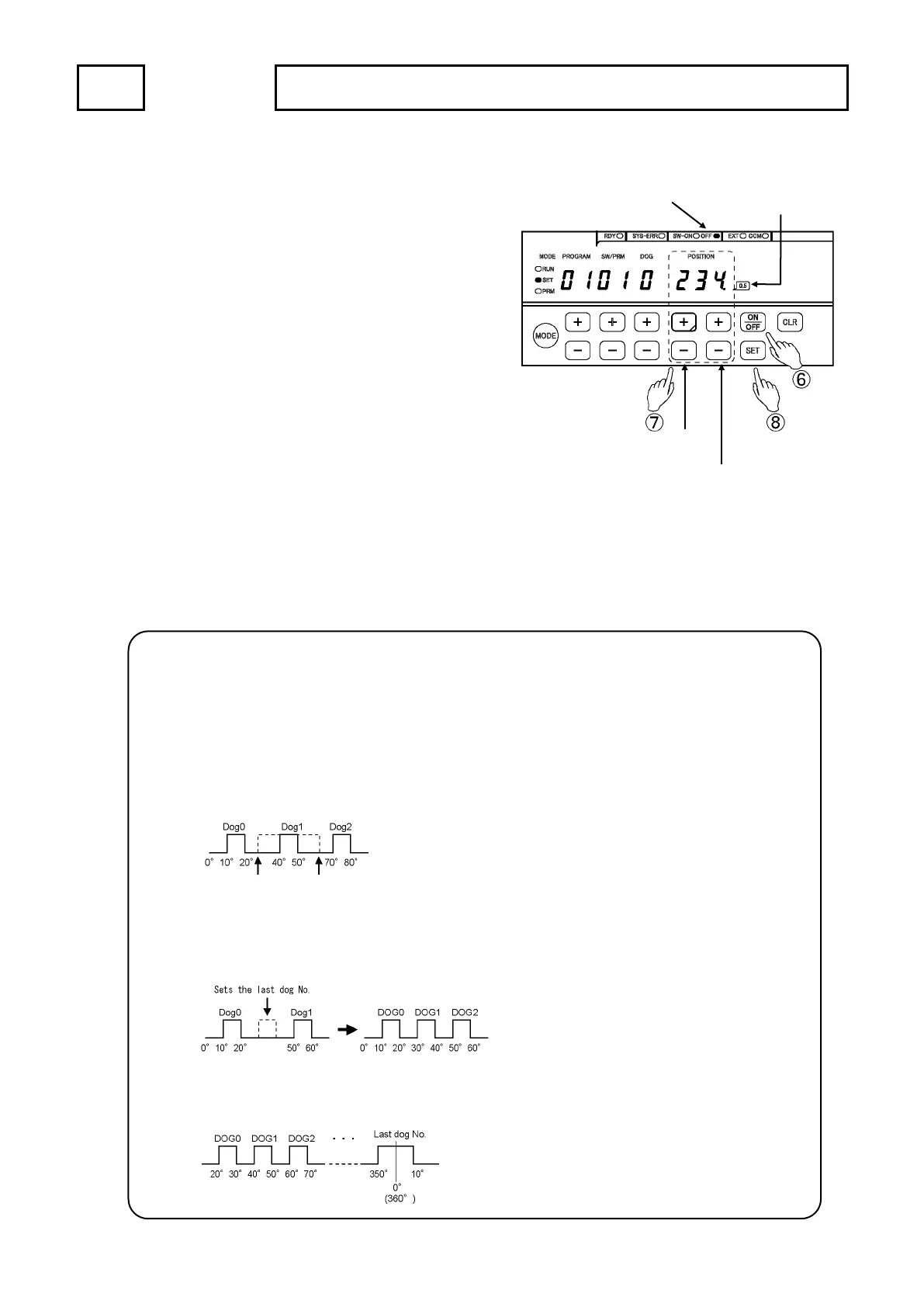

OPERATION 9. HOW TO USE APPLIED FUNCTIONS (SWITCH OUTPUT)
POINT
1. Switching the ON angle and OFF angle setting
SW-ON LED and OFF LED switch when [ON / OFF] key is pressed every time.
Turns ON the SW-ON LED when setting the ON angle.
Turns ON the OFF LED when setting the OFF angle.
2. Modifying the dog after setting
The dog can be modified in the range that prevents having overlaps to the next dogs.
Ex. Modifies DOG1
3. Inserting a dog
The dog can be inserted between dogs that are already set, and inserting dog should be set last dog
number. After the setting value is entered, dogs are rearranged in ascending order.
Ex. Inserting a dog which is turning ON at 30°and turning OFF at 40°
4. The dog number of setting value which passes 0°
The dog number is set last dog number.
Turns ON the OFF LED.
Presses [ON / OFF] key in order to designate
the OFF angle. The OFF LED turns ON.
Inputs the OFF angle value.
Inputs the OFF angle value by
pressing [+] or [-] key of POSITION, and
then the value blinks in the POSITION
display area.
Setting range: 0 to 359.5°
If [CLR] key is pressed in this timing, the inputting
value will be canceled.
Enters the OFF angle value.
Presses [SET] key, and then POSITION
display area turns ON.
The OFF angle value is entered.
Repeats below procedure.
Repeats procedure ③ to ⑧ until number of dogs which you need.
OFF LED
is ON
By 10°
units
By 0.5°
Displays by 0.5°units
Decimal point is ON : 0.5°
Decimal point is OFF : 0.0°
To Next Page
