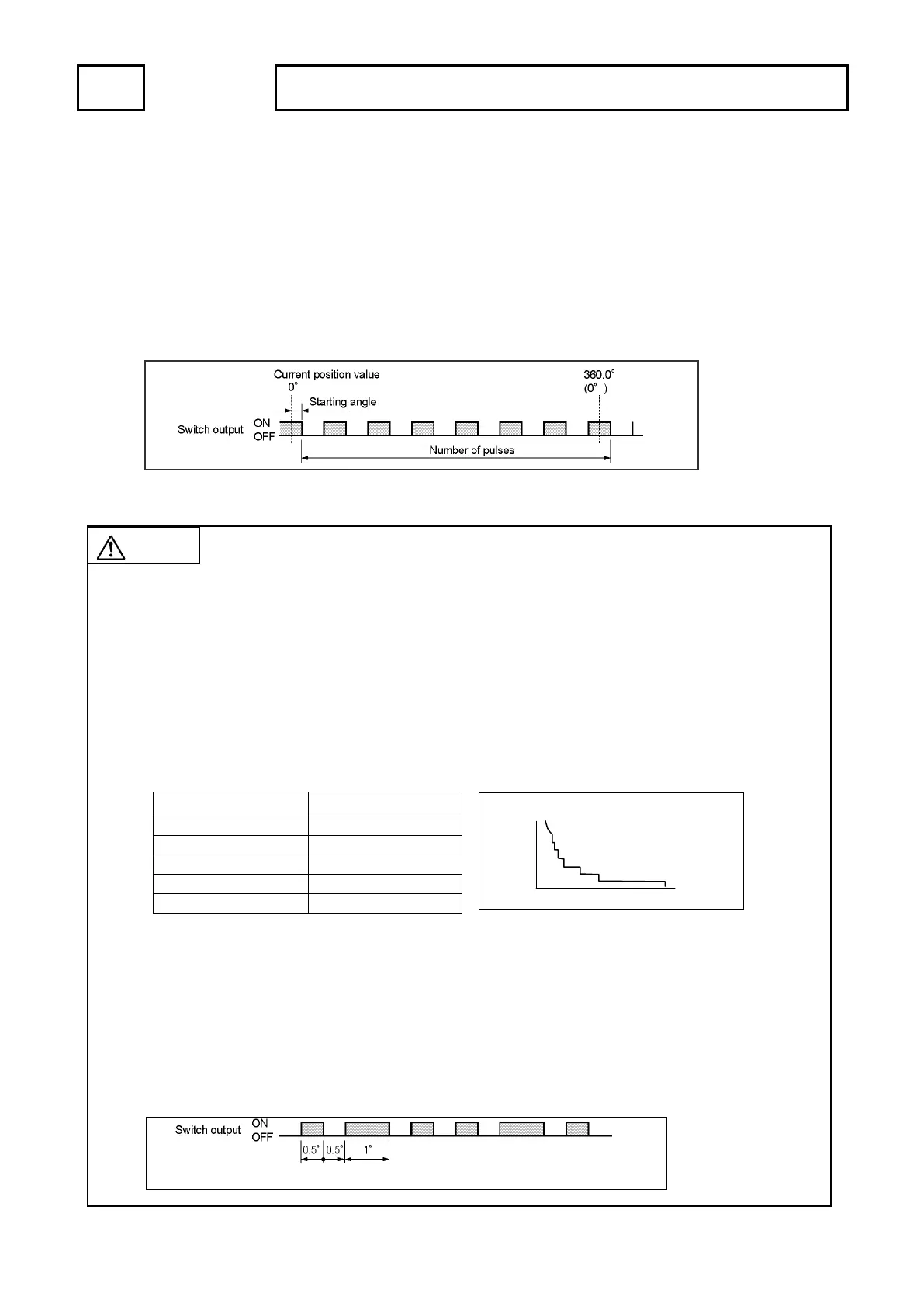

OPERATION 9. HOW TO USE APPLIED FUNCTIONS (SWITCH OUTPUT)
9-3. Sets the Arbitrary Pulse Output
This function is applicable with all VS-5F Series.
Outputs the pulse (arbitrary pulse) signal which is equally divided single rotation of the machine (ABOSOCODER) by
changing the switch settings.
The number of pulses and pulse starting angle can be set.
The number of pulses can be selected any number from 1 to 360, and the pulse start angles can be set by
each 0.5 degree.
CAUTION
1. Setting of the arbitrary pulse output
If the switch output already has been set, the arbitrary pulse output cannot be set.
The arbitrary pulse output should be set after the switch output setting value is deleted.
2. Response rotation speed
The response rotation speed of the arbitrary pulse output is same as the switch output one.
When the response rotation speed is set 180 pulses (ON / OFF zone is 1 degree), it follows until 900 r/min.
If the rotation speed exceeds the response rotation speed, the output pulse will be less than the setting number
of pulses.
Indicates a relationship between setting pulse and
response rotation speed
Setting pulse numbers
Response rotation speed
Less than 45 pulses
3600 r/min
Less than 90 pulses
1800 r/min
Less than 120 pulses
1200 r/min
Less than 180 pulses
900 r/min
Less than 360 pulses
450 r/min
3. Pulse width
The pulse width is formed per 0.5° units (720 divisions / rotations).
When 720 is not divided by the pulse number which is set, the pulse width does not uniform.
Ex. In the case of setting at 260 pulses,
720 divisions
――――― = 2.7692 ･ ･ ･ ← Cannot be divided.
260 pulses
Pulse
Rotation speed r/min
4000
3000
2000
1000
90 180 270 360
