OPERATION 9. HOW TO USE APPLIED FUNCTIONS (SWITCH OUTPUT)
Sets the arbitrary pulse output according to the following procedures.
The arbitrary pulse output setting is set in the switch setting (SET) mode.
For mode selection methods, refer to the “7-6-1. Selects the Switch Setting (SET) Mode”.

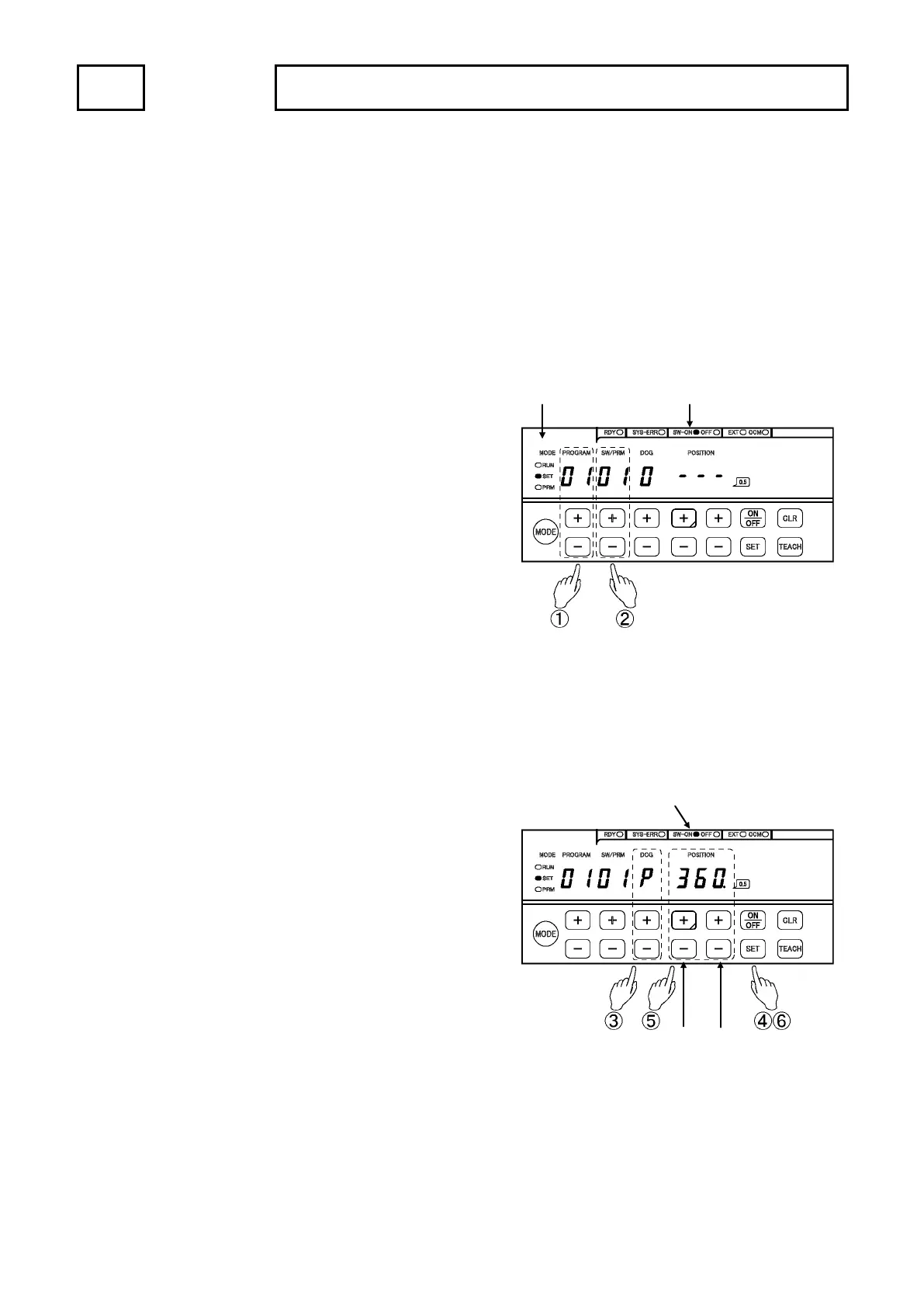

Selects the program number.
Selects the program number by
pressing [+] or [-] key of PROGRAM.
Program number selection range
VS-5F(-1) : There is not any program function.
VS-5FD(-1) : 0 to 7
VS-5FX(-1) : 00 to 15 or 00 to 31
Selects the switch number.
Selects the switch number by
pressing [+] or [-] key of SW / PRM.
Switch number selection range
VS-5F(-1) : 01 to 24
VS-5FD(-1) : 01 to 24
VS-5FX(-1) : 01 to 40 or 01 to 24
Changes the arbitrary pulse mode.
Keeps pressing [-] key of the DOG.
“P” is displayed at the DOG display area,
and it's blinking.
If [CLR] key is pressed in this timing, the arbitrary
pulse mode will be canceled.
Enters the arbitrary pulse mode. *1
Presses [SET] key, and then changes
arbitrary pulse mode.
Inputs the number of pulse.
Inputs the number of pulse by
pressing [+] or [-] key of POSITION, and
then the value blinks in the POSITION
display area.
Setting range: 1 to 360 pulses
If [CLR] key is pressed in this timing, the inputting
value will be canceled.
is ON
SW-ON LED
is ON
10 1 pulse
pulse units
units
