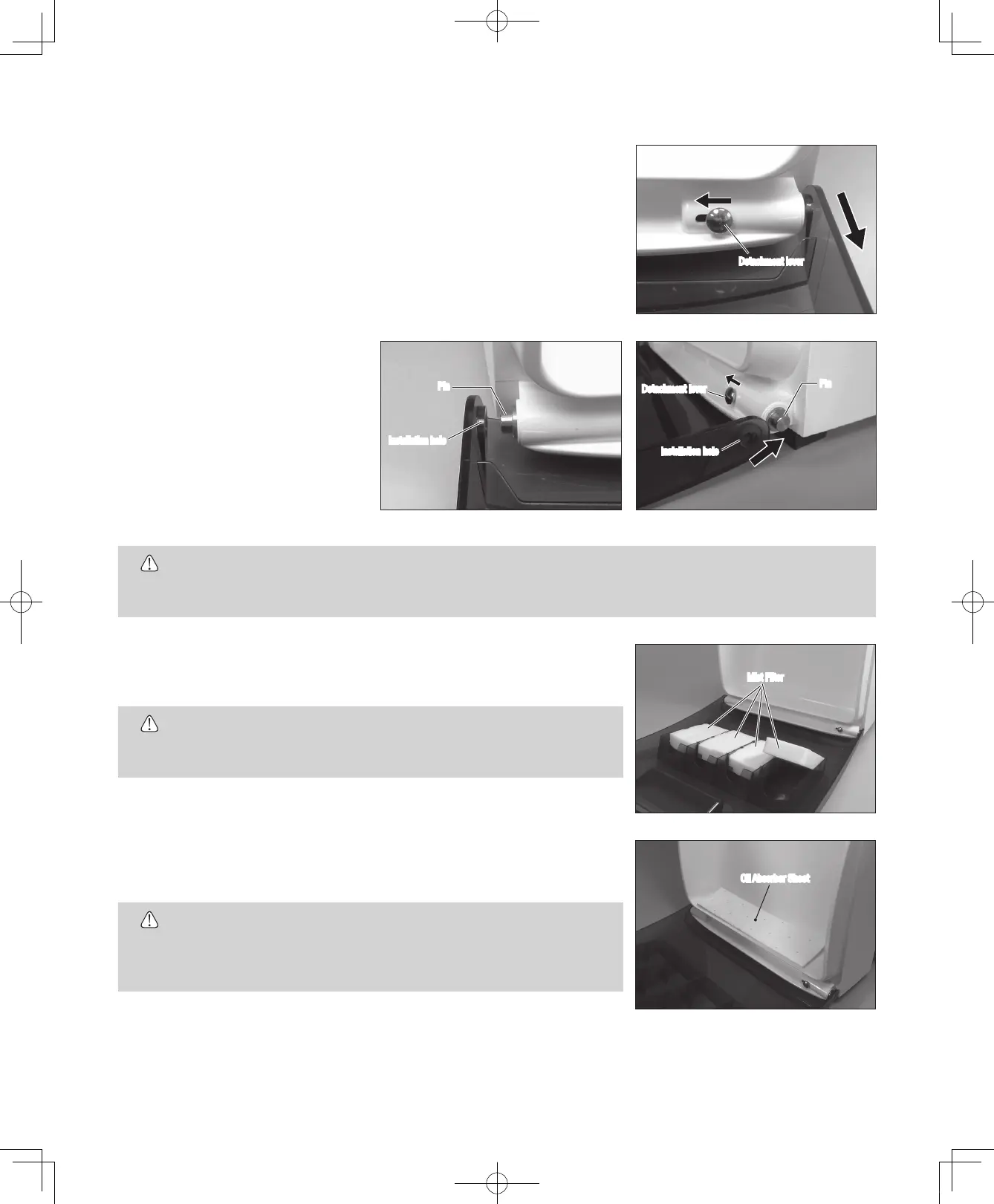

9-2 Detaching and reattaching the door

9-2-1 Detaching the door

Slide the detachment lever (lower right corner) inward then pull the door out to remove

(Fig. 22).

9-2-2 Reattaching the door

1) Fit the installation hole on the door into the pin on the front left side (Fig. 23).

2) Align the other installation hole on the door right side with the pin while pulling the

detachment lever. Release the detachment lever. A 'click' sound will indicate that the

door is secure (Fig. 24).

9-3 Replacing Mist Filter

Open the door and remove the used Mist Filters. Replace with new Mist Filters as shown in

Fig. 25.

9-4 Replacing the Oil Absorber Sheet

Open the door and remove used Oil Absorber Sheet. Place new Oil Absorber Sheet at the

bottom of the lubricating chamber of the Unit as shown in Fig. 26.

Fig. 23

Fig. 22

Fig. 24

CAUTION

Fig. 25

Fig. 26

Detachment lever

•Attach or detach the door on a level surface. During attachment or detachment, be careful not to drop the door or the Unit.

•Do not soak the door in alcohol and do not leave an alcohol-immersed cloth in contact with the door for a long period. Bleaching

or door deformation may occur.

•Replace immediately with new Mist Filters when signs of debris appear.

•Dispose of used Mist Filters as medical waste according to the laws and

regulations in your country.

•Replace immediately with a new Oil Absorber Sheet when signs of debris

appear.

•Dispose of used Oil Absorber Sheets as medical waste according to the laws

and regulations in your country.

Installation hole

Mist Filter

Oil Absorber Sheet

Installation hole
