Checking and how to connect each part
5-1 Connecting Air Tube

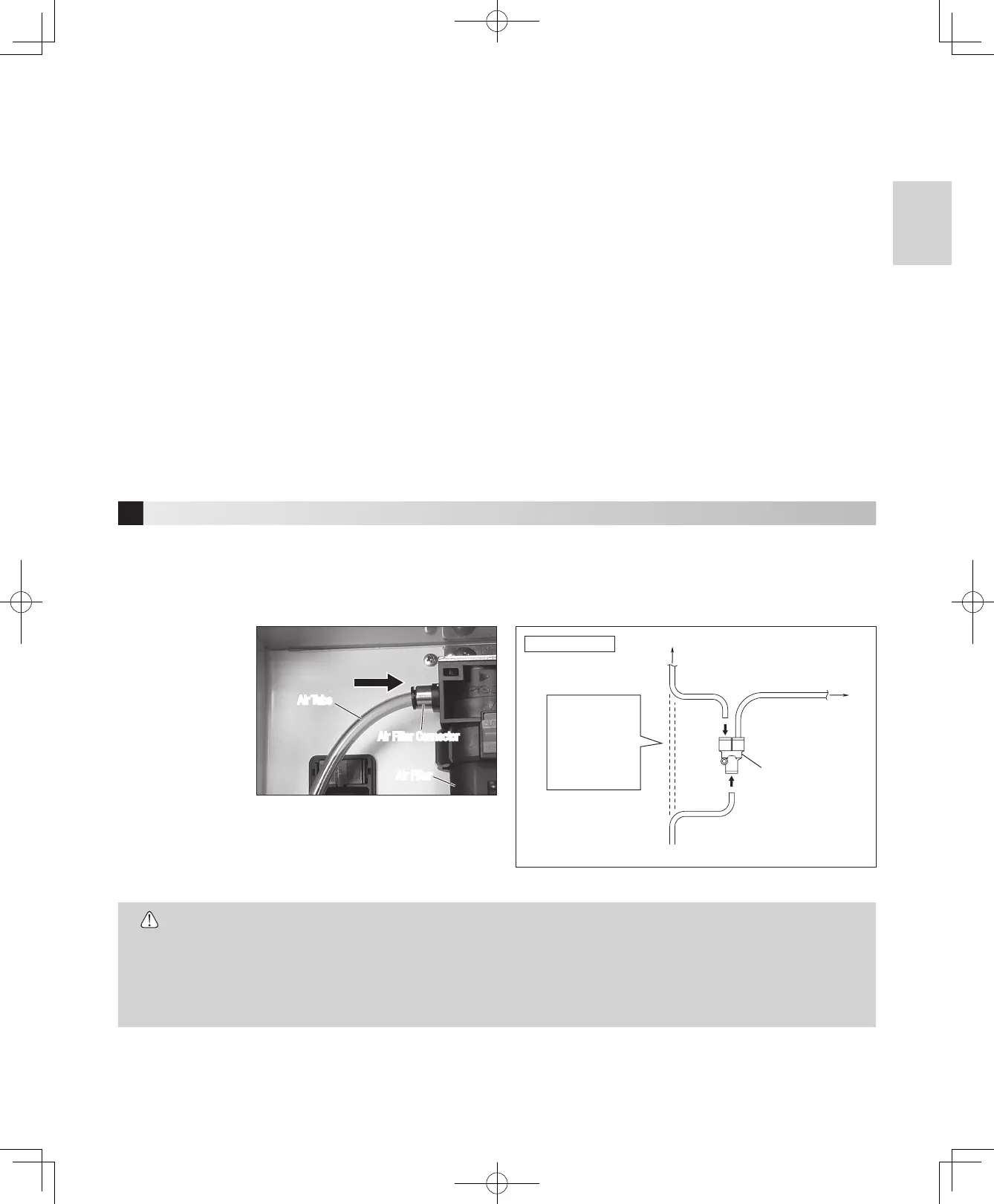

1) Securely insert the Air Tube into the Air Filter Connector at the back of the Unit (Fig. 1).
2) Connect the Y-type One-Touch Connector to the air source (Air Compressor) as shown in Fig. 2.
3) Push and pull the Air Tube to be sure that it is firmly connected.
4-2 Display part on Control Panel
(A) Power LED
This LED lights up when power is ON (l side).
(B) Joint LED
This LED lights up when the joint is selected. This LED blinks during lubrication.
(C) Error LED (Oil)
See "11. Error LED".
(D) Error LED (Door)
See "11. Error LED".
(E) Error LED (Air Pressure)
See "11. Error LED".
(F) Air LED (S/M/L)
The selected Air mode lights up.
(G) Chuck Cleaning LED
This LED lights up when the Chuck Cleaning is selected. This LED blinks during cleaning.
Fig. 2
CAUTION
Fig. 1
Example of connection
•The optimum air pressure for this product is between 0.5 - 0.6MPa (5 - 6kgf/cm
2
). The product does not operate if the air
pressure is set less than 0.5MPa (5kgf/cm
2
).
•Do not twist or bend the Air Tube.
•If you have difficulty connecting the Air Tube, contact your Authorized NSK Dealer.
•Drain water from the Air Compressor and Air Filter at least once a week as required. Moisture from the tank could mix with the
Maintenance Oil.
Air Tube
Air Filter Connector
Air Filter
Air Filter of iCare
Y-type One-Touch
Connector
Air Compressor
To other device
Cut the air tube
connecting the Air
Compressor and the
other device and
connect to the Y-type
One-Touch Connector.
