Installation
Faucet Installation
Drilling
If your sink has an existing hole this can be used for your faucet. If you have to drill a new hole follow the
steps below.
1. Locate the section on your countertop to install
your faucet. Using plumbers clay form a ring around
the section you will be drilling. This will be used to
retain water for the drilling process.
2. Fill the ring with water. Using a 5/8” diamond tip
hole saw drill bit slowly begin drilling. Apply light, and
even pressure and let the drill do the work.
1. Locate the section on your countertop to install
your faucet and drill a 1/4” pilot hole. Once comple-
tely drilled through, switch to a 5/8” drill bit and
re-drill the same hole.
Granite / Marble / Quartz sinks
Stainless Sink
Keep the drill bit and hole wet during the drilling process
1. Insert the faucet into the hole in your counter-
top.
2. Slide the rubber washer followed by the metal
washer up the threaded shafter of the faucet and
secure in place with the included nut.
3. Install the quick connect fitting to the threaded
shaft and secure in place with a retaining clip.
4. Connect the 1/4” tubing into the quick connect
fitting and secure in place with a retaining clip
Installation
OpenClosed

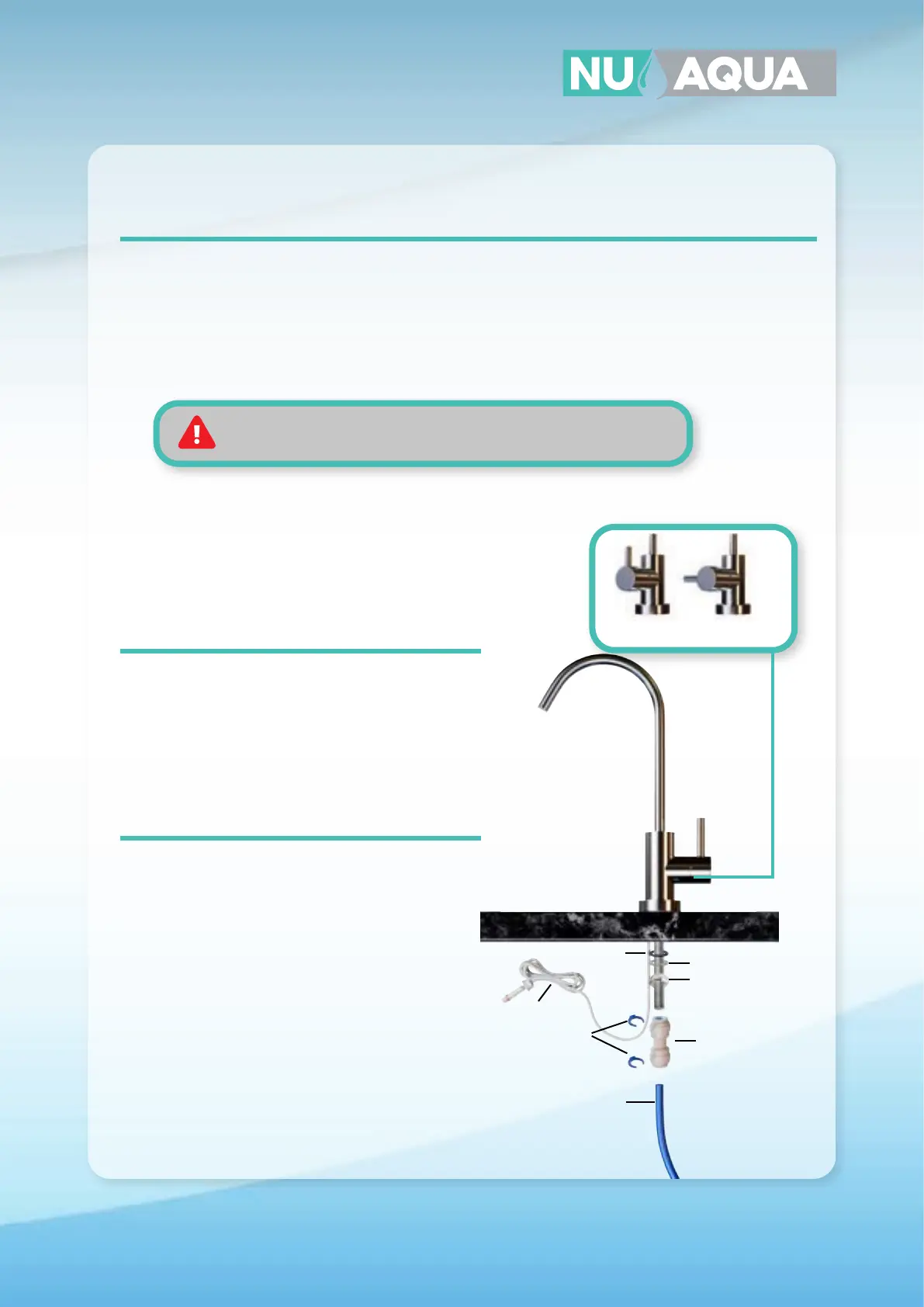

Open and Closed Position
Rubber Washer
Metal Washer
Nut
Quick Connect Fitting
Retaining Clips
Power Cord
1/4” Tubing
