UV System Installation
Mounting
There are two mounting options for your UV filter. Option one is a adhesive pad. This is the easiest option
but will be less secure. Option two is a hard mount that is more secure and uses screws to attach to the
inside of your cabinet.
Adhesive
1. Select the location you want to install your UV
Filter. This should be atleast 8 inches above the
bottom of the cabinet.
2. Peel o the backing of the adhesive pad.
3. Firmly press the adhesive pad against the
cabinet wall.
4. Peel o the front cover of the adhesive pad.
Press the mounting plate firmly against the
pad to secure it.
5. Hang the UV water filter on the mounting plate
studs.
Hard Mount
1. Select the location you want to install your UV
Filter. This should be atleast 8 inches above the
bottom of the cabinet.
2. Secure the mounting plate directly to the
cabinet wall using the supplied screws
3. Hang the UV water filter on the mounting plate
studs.

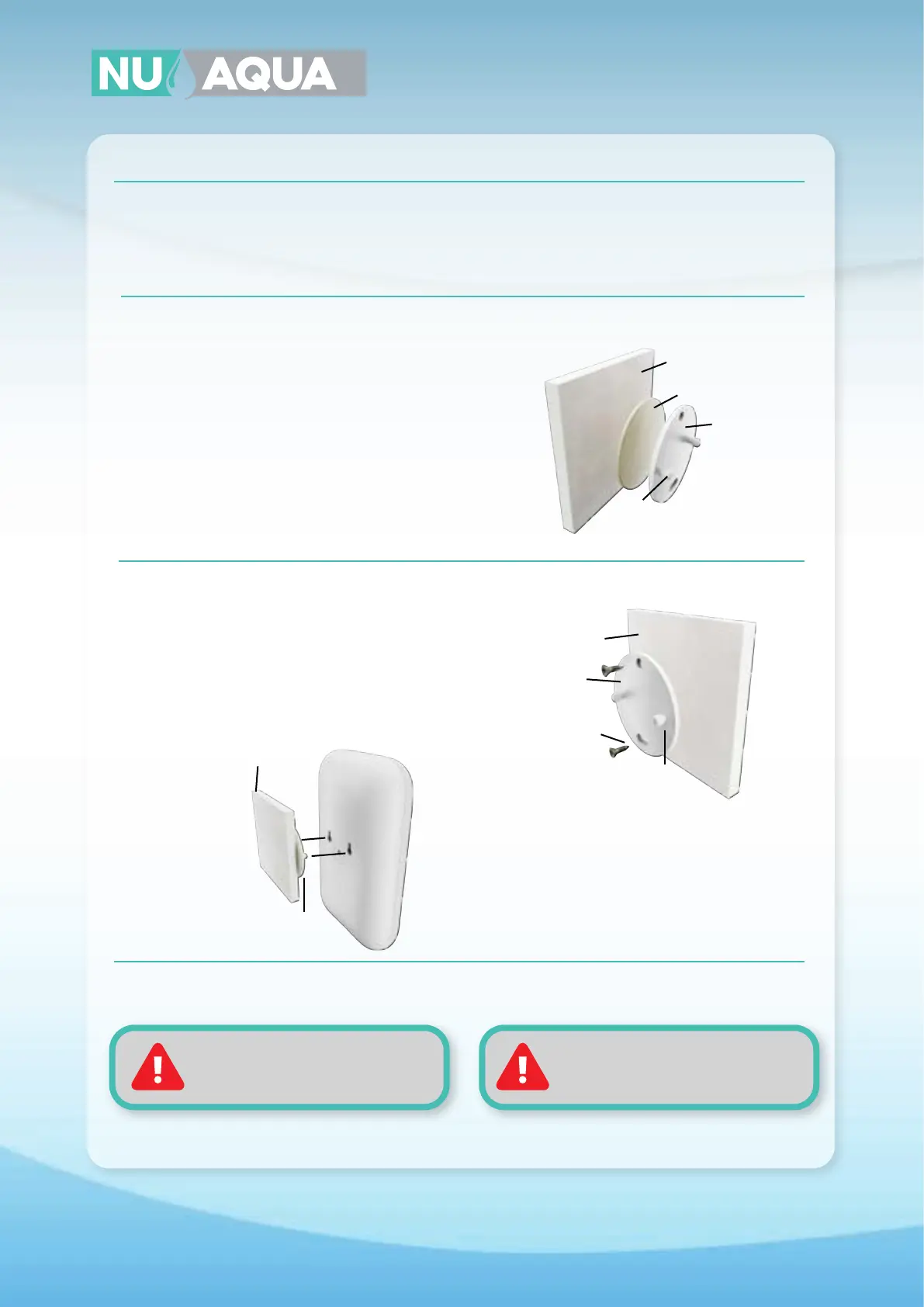

Wall
Hard Mount
Screw
Mounting Plate
Stud
Wall
Hanging
Mounting Plate
Adhesive Mount
Adhesive pad
Mounting Plate
Stud
