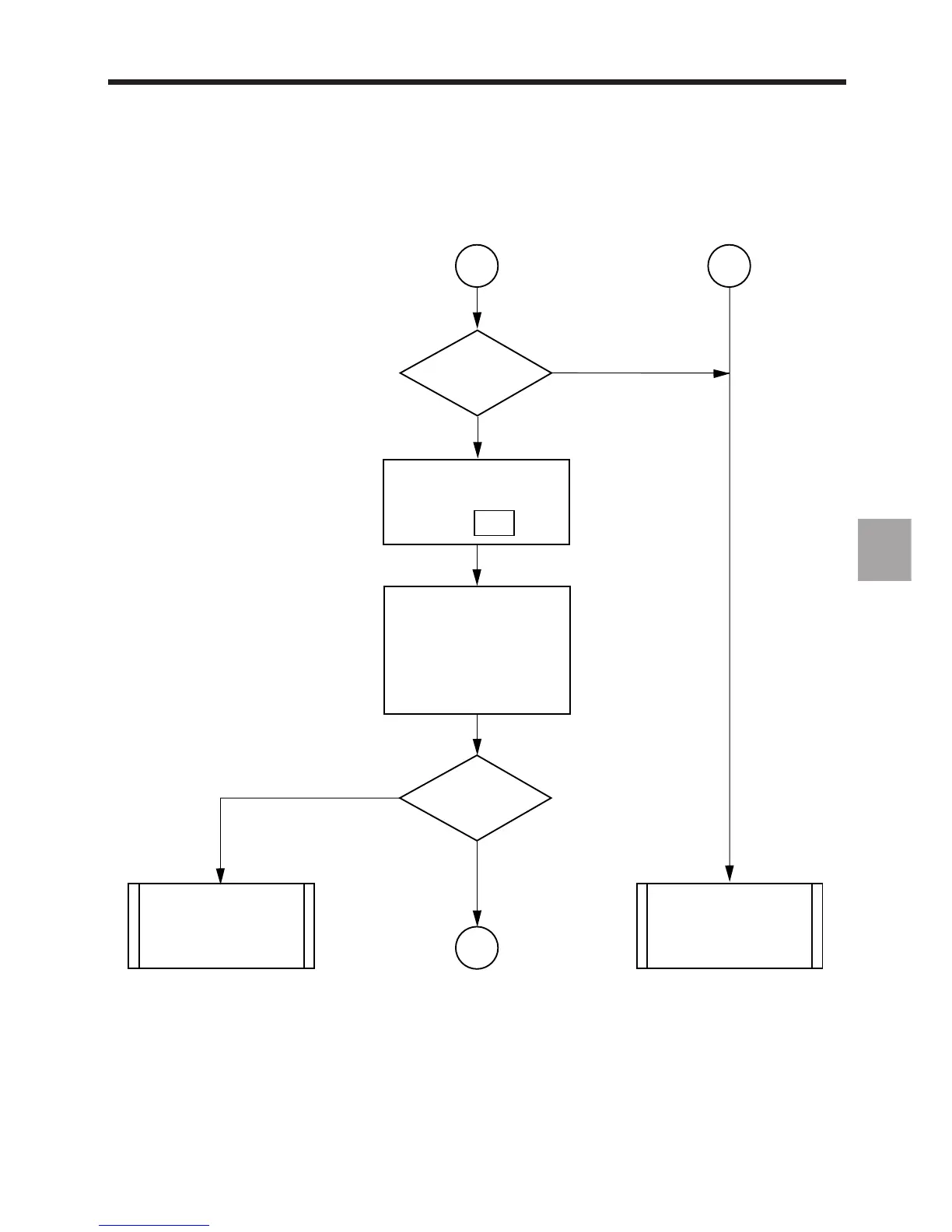

Operational Problems
6
Wait for programme
execution restart after
reception of the
sync. point.
3
No
Yes
Is
G78 P..
present
?
Display the
programme page
PROG.
☞
In the current block, check
for the presence of the
following functions:
C_EXTENDg = 0
?
1
Examine the PLC
programme to
determine the origin
of the fault.
Yes
2
No
- G09 :
exact stop at the
end of the block.
awaiting a sync.
point in another
axis group,
- G78 P.. :
