NUM 1020 M - Page 329

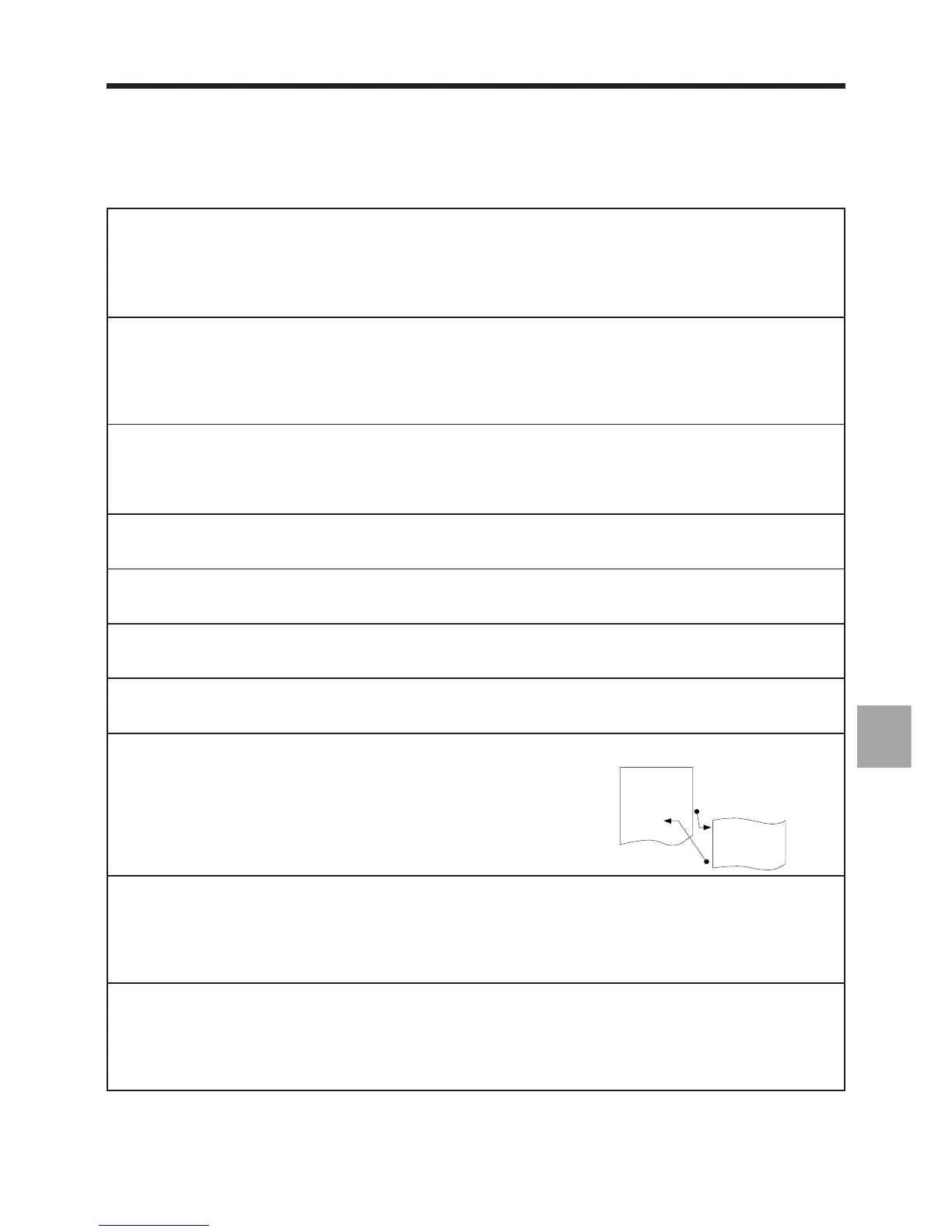

Function Summary Tables
en-938821/2 A - 9
A
G75: Emergency retraction subroutine declaration
Syntax: N.. G75 N..
Cancellation: cancellation by G75 N0 or G75 different N..
G76: Transfer of the current values of "L" and "E" parameters into the part programme
Syntax: N.. G76 [H..] [N.. N..]
Cancellation: end of block
G76 +/-: Programme or ISO block creation/deletion
Syntax: See special syntax below.
Cancellation: end of block
G76+: Programme creation
Syntax: N.. G76+ H..
G76-: Programme deletion
Syntax: N.. G76- [H..][N.. N..]
G76+: ISO block creation
Syntax: N.. G76+ [H..] N.. [+ number] ISO block
G76-: ISO block deletion
Syntax: N.. G76- [H..] N.. [+ number]
G77: Unconditional branch to a subroutine or sequence of blocks with return
Main programme
%10
N . .
N . .
N . . G77 . . . .
N . . . .
N . .
%
N . .
N . .
N . .
Subroutine
Syntax: N.. G77 [H..] [N.. N..] [S..]
Cancellation: end of block
G77-i: Call of subroutine return block
Syntax: N.. G77 -i
Cancellation: end of block
G78: Axis group synchronisation
Syntax: N.. G78 Q../Pj.i
Cancellation: cancellation by G78 Q0 or G78 different Q..
