Function Summary Tables
en-938821/2 A - 11
A

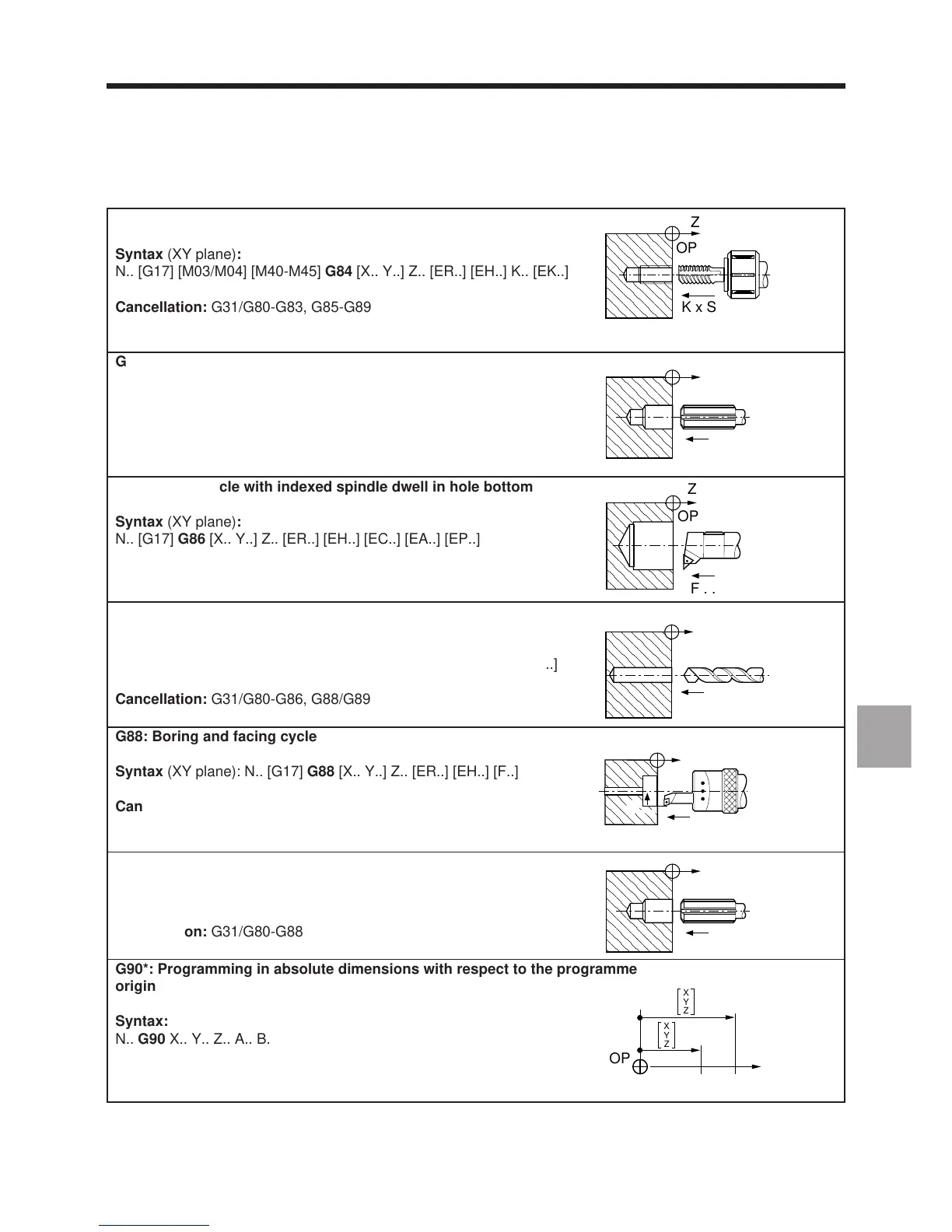

G84: Rigid tapping cycle
,,,,,,,,,,
,,,,,,,,,,
,,,,,,,,,,
Syntax (XY plane):
N.. [G17] [M03/M04] [M40-M45] G84 [X.. Y..] Z.. [ER..] [EH..] K.. [EK..]
Cancellation: G31/G80-G83, G85-G89
G85: Boring cycle
,,,
,,,,,
,,
,,,,,,,,,,
,,,,,,,,,,,
,,,,,,,,,,
OP
Z
F . .
Syntax (XY plane): N.. [G17] G85 [X.. Y..] Z.. [ER..] [EH..] [F..] [EF..]
Cancellation: G31/G80/G81-G84, G86-G89
G86: Boring cycle with indexed spindle dwell in hole bottom
,,,,,,,,,,
,,,,,,,,,,,
,,,,,,,,,,,
Syntax (XY plane):
N.. [G17] G86 [X.. Y..] Z.. [ER..] [EH..] [EC..] [EA..] [EP..] [F..]
Cancellation: G31/G80-G85, G87-G89
G87: Drilling cycle with chip breaking
,,,,,,,,,,
,,,,,,,,,,
,,,,,,,,,,
Syntax (XY plane):
N.. [G17] G87 [X.. Y..] Z.. [ER..] [EH..] [Q..][P..]/[ES..] [EP..] EF.. [F..]
Cancellation: G31/G80-G86, G88/G89
G88: Boring and facing cycle
Syntax (XY plane): N.. [G17] G88 [X.. Y..] Z.. [ER..] [EH..] [F..]
Cancellation: G31/G80-G87/G89
G89: Boring cycle with dwell in the bottom of the hole
,,,
,,,,,
,,
,,,,,,,,,,
,,,,,,,,,,,
,,,,,,,,,,
OP
Z
F . .
Syntax (XY plane): N.. [G17] G89 [X.. Y..] Z.. [ER..] [EH..] [EF..] [F..]
Cancellation: G31/G80-G88
G90*: Programming in absolute dimensions with respect to the programme
origin
X
Y
Z
OP
X
Y
Z
Syntax:
N.. G90 X.. Y.. Z.. A.. B.. C..
Cancellation: G91
,,
,,,,
,,,,,,
,,,,,,,,
,,,,,,,,,,
,,,,,,,,,,,
,,,,,,,,,,,,
,,,,,,,,,,,
,,,,,,,,,
,,,,,,,
,,,,,
,,,
