NUM 1020 M - Page 332

A - 12 en-938821/2

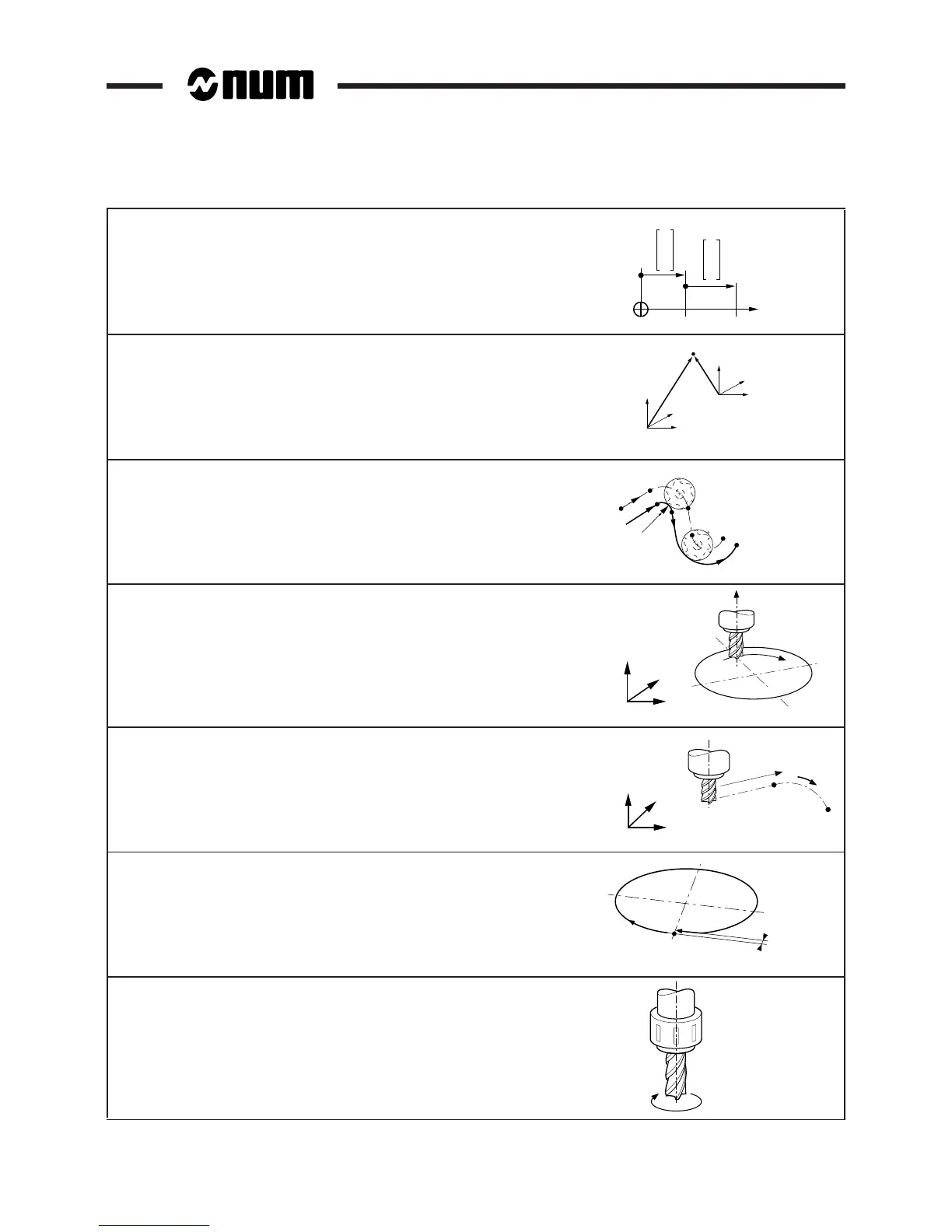

G91: Programming in incremental dimensions with respect to the start of
the block
X
Y
Z
OP
X
Y
Z
Syntax: N.. G91 X.. Y.. Z.. A.. B.. C..
Cancellation: G90
G92 X.. Y.. Z..: Programme origin preset
Z
Y
X
Z
Y
X
G92..
OP1
OP0
Current
point
Syntax: N.. G92 X.. Y.. Z..
Cancellation: end of block
G92 R..: Programming of the tangential feed rate
R min
F..
Syntax: N.. G92 R..
Cancellation: by G92 R0 or G92 different R..
G93: Feed rate expressed as inverse time (V/D)
C
a
x
i
s
Y
Z
F . . in V/L
Z
X
Syntax: N.. G93 F.. G01 X.. Y.. Z.. A.. B.. C..
Cancellation: G94/G95
G94*: Feed rate expressed in millimetres, inches or degrees per minute
Z
Y
X
mm/min
F . .
Syntax: N.. G94 F.. G01/G02/G03 X.. Y.. Z.. A.. B.. C..
Cancellation: G93/G95
G95: Feed rate expressed in millimetres or inches per revolution
mm/rev
Syntax: N.. G95 F.. G01/G02/G03 X.. Y.. Z..
Cancellation: G93/G94
G97*: Spindle speed expressed in revolutions per minute
S . .
Syntax: N.. G97 S.. [M03/M04]
Cancellation: G96 (combined machine)
