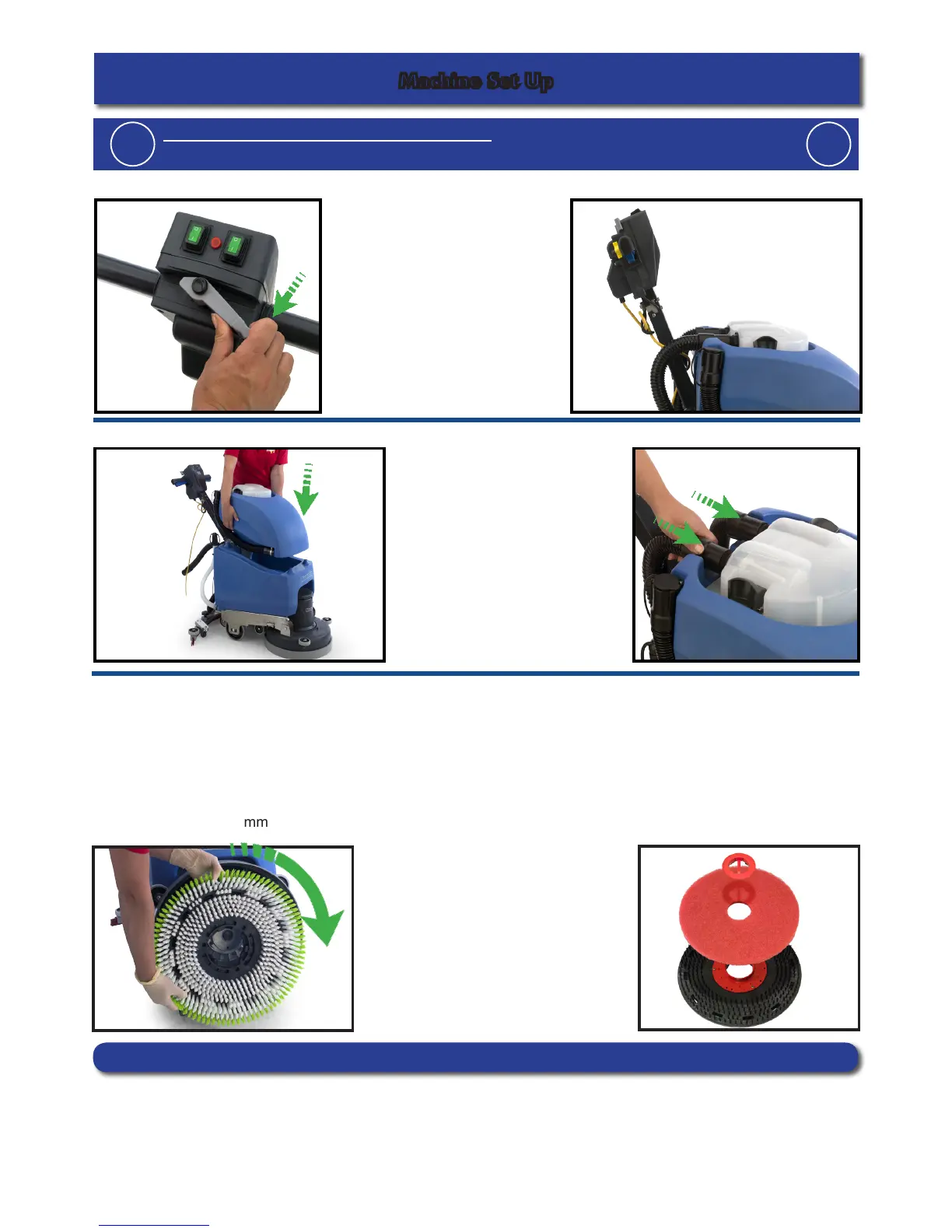

Machine Set Up
Please read before commencing any operation.
After the removal of all the packaging, carefully open and check the contents.
!
Fit the top tank to the machine
(g 3).
Fit both the vacuum hose and the
oor tool hose to the separator
(g 4).
Fitting top tank
Fitting the brush
Featuring the Nulock brush system.
The brush is simply pushed and twisted to lock, making tting and removal a simple process.
The Pad is retained using Numatic’s own PadLoc system. (Ask your supplier for details)
Only use manufacturer supplied brushes / pads.
TT 4045 / ET 4045 requires a 450mm brush or a 400mm pad.
TT 4055 requires a 550mm brush or a 500mm pad
Safety gloves are recommended for the changing of used brushes.
Fit the brush /pad to the drive chuck,
twist to lock the brush
(Fig 5) / pad in place (Fig 6).
Fig 6
Fig 5
!
Tilting the handle
Using the handle position lever
(g 1).
Move the handle into the upright
position (g 2).
Fig 1 Fig 2
Fig 3 Fig 4
