ALWAYS ENSURE THAT THE BATTERY IS DISCONNECTED PRIOR TO ANY
MAINTENANCE
Note: The blades are designed to be reversible, thus extending their useful working life.

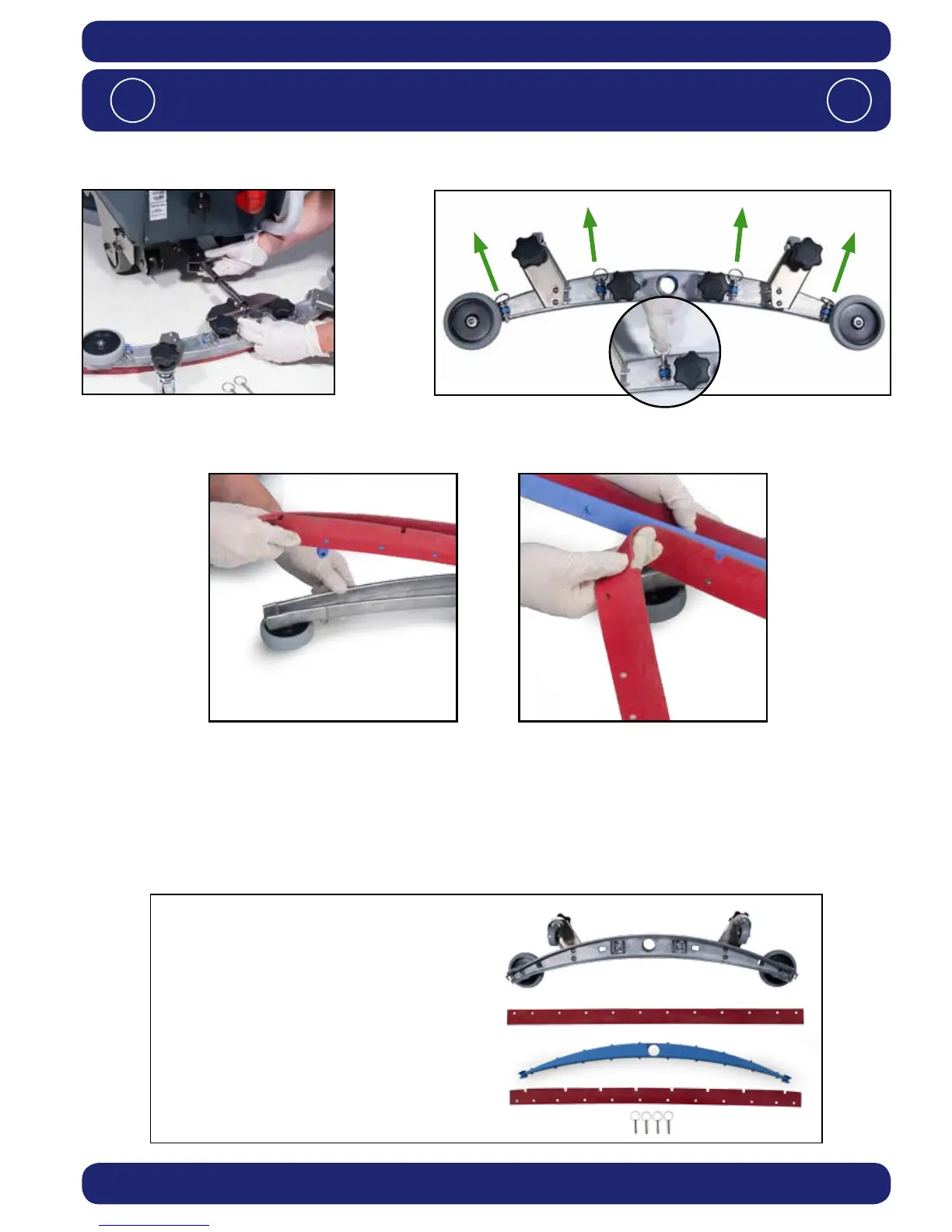

Changing the Floor Tool Blades
Fig.39 Fig.40
To clean the oor-tool, remove securing-pin and disconnect the lifting strap and remove the oor-tool securing pin pull-free
the oor-tool from the rear of the machine. Rinse the oor-tool assembly with clean water and ret.
Periodically the oor-tool blades should be examined and checked for wear and damage.
The blade removal is easy. Simply start by removing the four retaining pins (see Fig.38), turn the oor-tool over and separate
the blade carrier from the body (see Fig.39).Peel away the blades from their locating lugs (see Fig.40) and examine or renew
as required. Replacement is a reversal of the removal process.
Floor-tool overview
1. Floor-tool main body
2. Rear blade
3. Blade carrier
4. Front blade (slotted)
5. Retaining pins x 4
1
2
3
4
5
The oor-tool
The TTB range is provided with the aluminium oor-tool shown.
Fig.38
