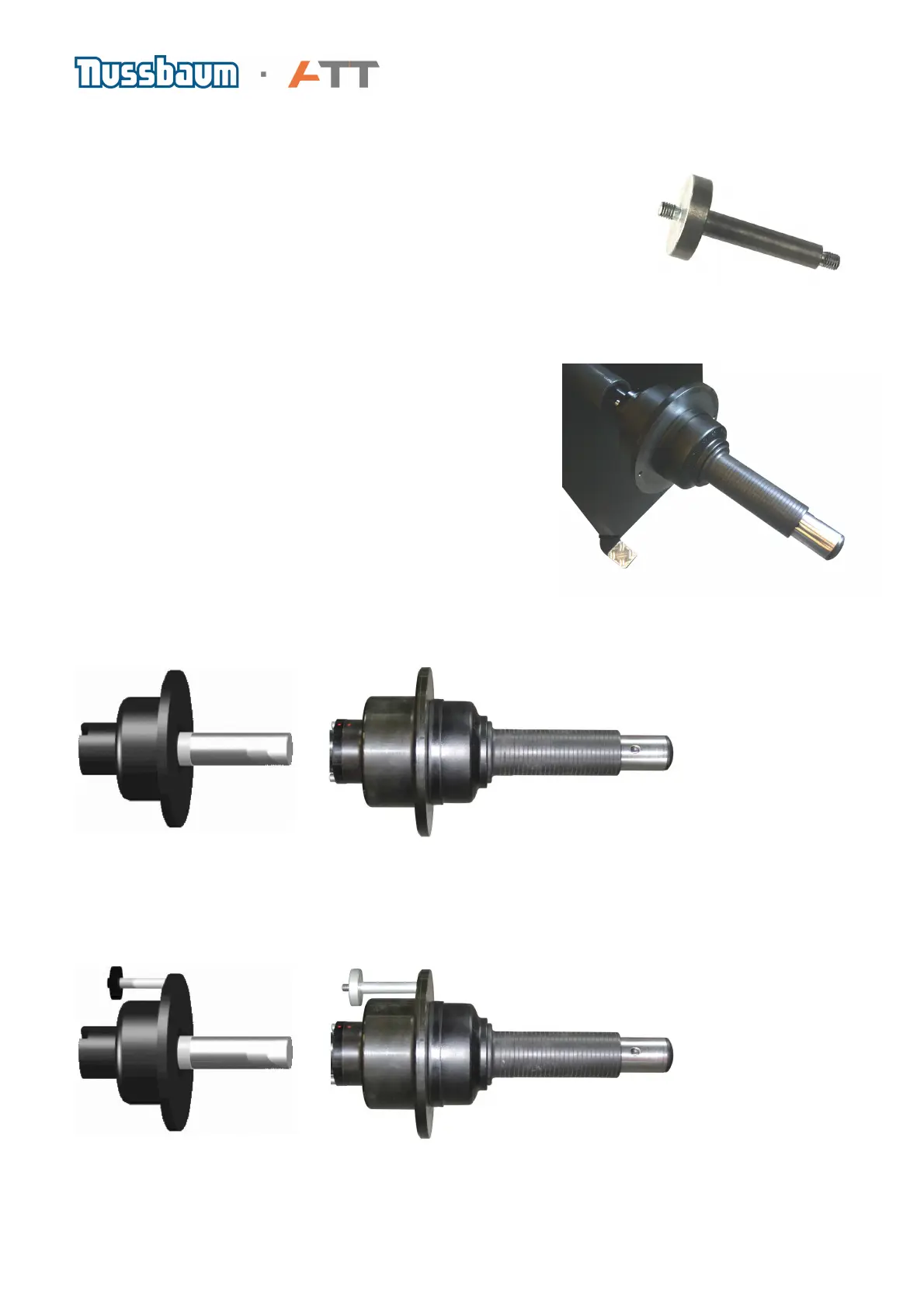

F 5 Calibration
The calibration weight supplied with the machine must be used
together with the clamping adapter. Make sure that the threaded hole
on the adapter is in line with the red indicator marking on the main
shaft.
For calibration the calibration weight (1987009WG3) is required
MACHINES with manual clamping of the wheel
Remove cone and clamp from the main shaft.
MACHINES with QuickSpan:
Attach the pressure cup for steel rims to the clamping
sleeve and activate the QuickSpan
Press the function key to select the function menu.
Use +/- keys to select the Function 5.
Press function key again to activate the function.
There are 3 measuring runs performed during the
calibration procedure, the wheel guard (if present) can be
left open:
1. Measuring run
Run without calibration weight
Machines with manual QuickSpan
clamping of the wheel
2. Measuring run
Run with calibration weight on the left side of the mid centering device
Machines with manual QuickSpan
clamping of the wheel
