Operating Instruction and Documentation
MCS 7500 Flex (Bluetooth)
- 17 -
It is possible to move the MCS in the single-mode. This is necessary to reach the
different levels of the pick-up points.

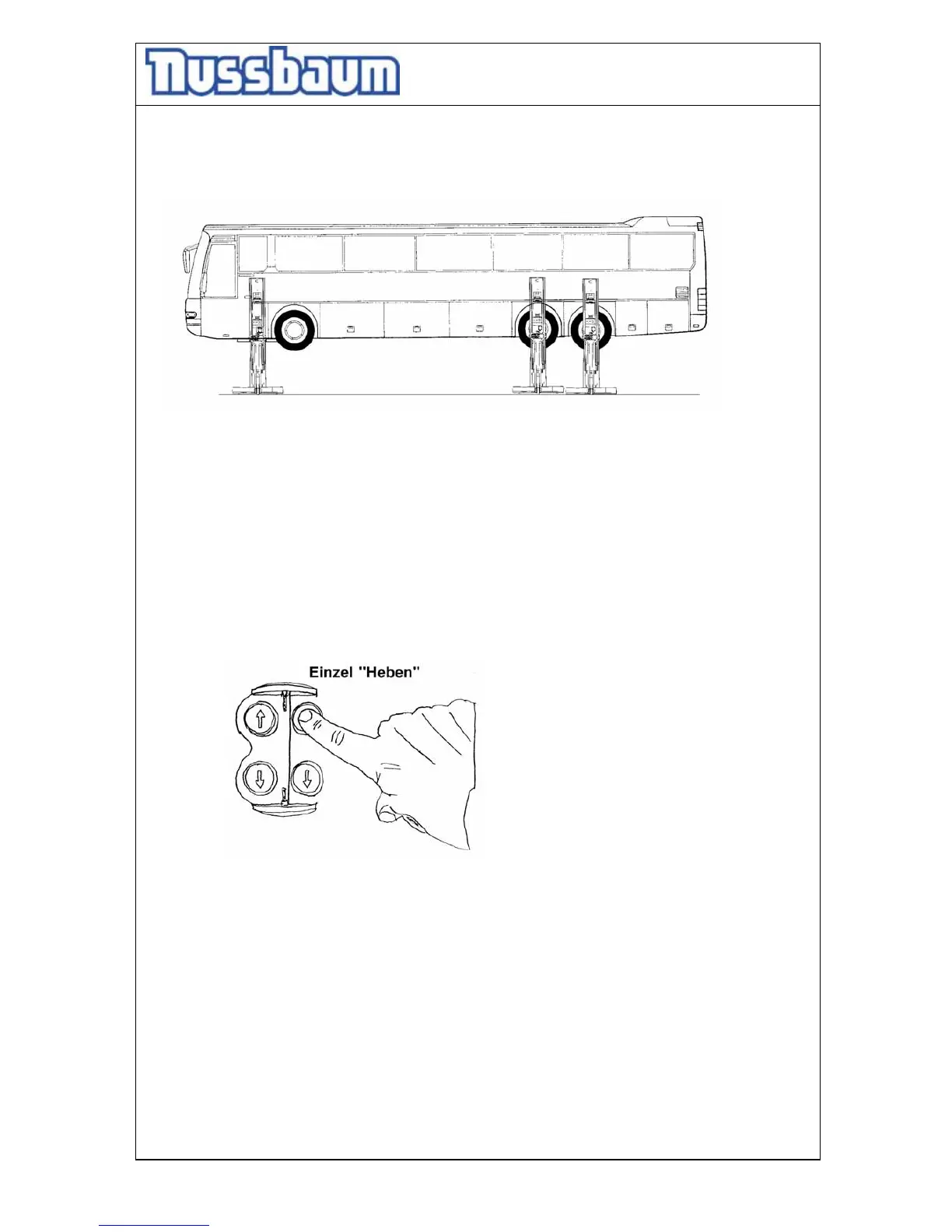

pic 9:
Through this measure, it is possible to raise the vehicle horizontally.
• Block the vehicle against rolling, put into gear.
• Position the MCS. Whenn necessary use the additional supports.
• Lower the MCS in the lowest position (with the handlever).
• Check the dangerous places of the lift and be sure that there are no objects or people in
the immediate area of the lift or on the lift.
• Switch on the control system; all the main switch on position ”1” .
• Raise every MCS with the single-mode until the pick-up points of the vehicle are reached.
Turn the plastic cover at the respective operating unit and press the button „lifting“
(single).
pic 10: single-mode “lifting”
• Now, all MCS are ready for the synchronous working.
• Raise the vehicle with the synchronous mode. Press the button „lifting“ (synchronous) at
one operating unit.
