Operating Instruction and Documentation
MCS 7500 Flex (Bluetooth)
- 14 -

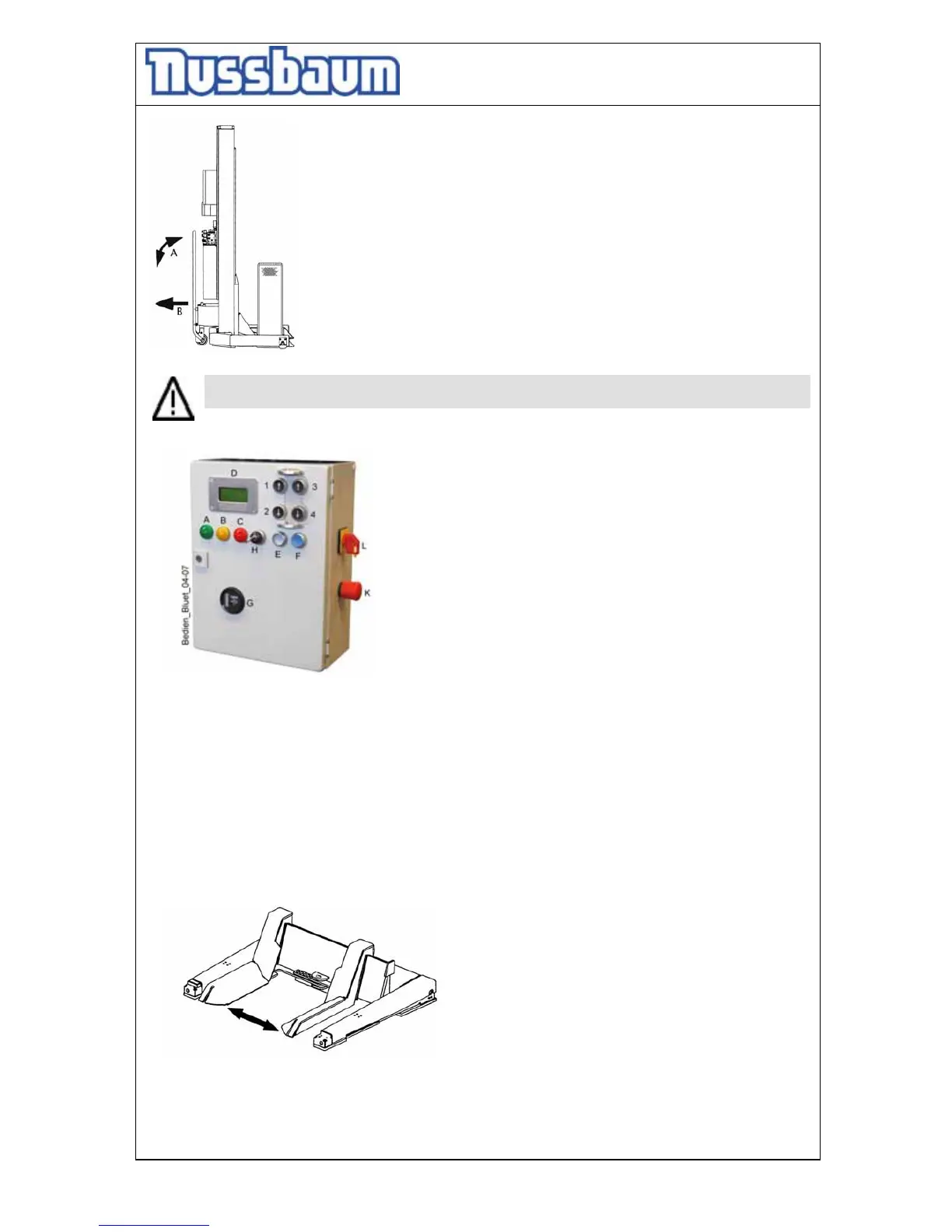

A - Move the hand lever several times in arrow-direction = The mobile
column lift raise.
B - Now, slide the columns under the wheels of the vehicle
pic 2a: Positioning the columns
Lower all columns with the hand lever into the lowest position. Pull the lever slowly.
(see pic. 1)
pic 3: operating unit
5.3 Lifting the vehicle (mode synchronous)
• Block the vehicle against rolling, put into gear.
• Position the MCS 7500 to the wheels and let it down with the hand lever. If necessary use
the additional supports.
1 : LIFTING (all columns)
2 : LOWERING (all columns)
3 : LIFTING (the column, at you are standing)
4 : LOWERING (the column, at you are standing)
A : LIGHT: GREEN (columns in operation)
B : LIGHT: YELLOW (Lifting / Lowering of two columns)
C : LIGHT: RED (Failure)
D : LC-DISPLAY
E: ON/OFF Button only for operation in pairs
F: OPTIONALl “RESET” BUTTON (without function)
G: BATTERY CHARGE CONTROL
H: KEY SWITCH (operation only by authorized persons in
case of disturbance)
K : EMERGENCY STOP BUTTON
L : MAIN SWITCH
