Operating Instruction and Documentation
MCS 7500 Flex (Bluetooth)
- 19 -
It is possible one MCS and the MCS at the opposite side to raise and to lower, together.
(axle-mode). This is necessary to dismounting heavy parts (motor, axle, set of gears.
Every MCS is equipped with photoelectric. Transmitter and receiver see pic.13).

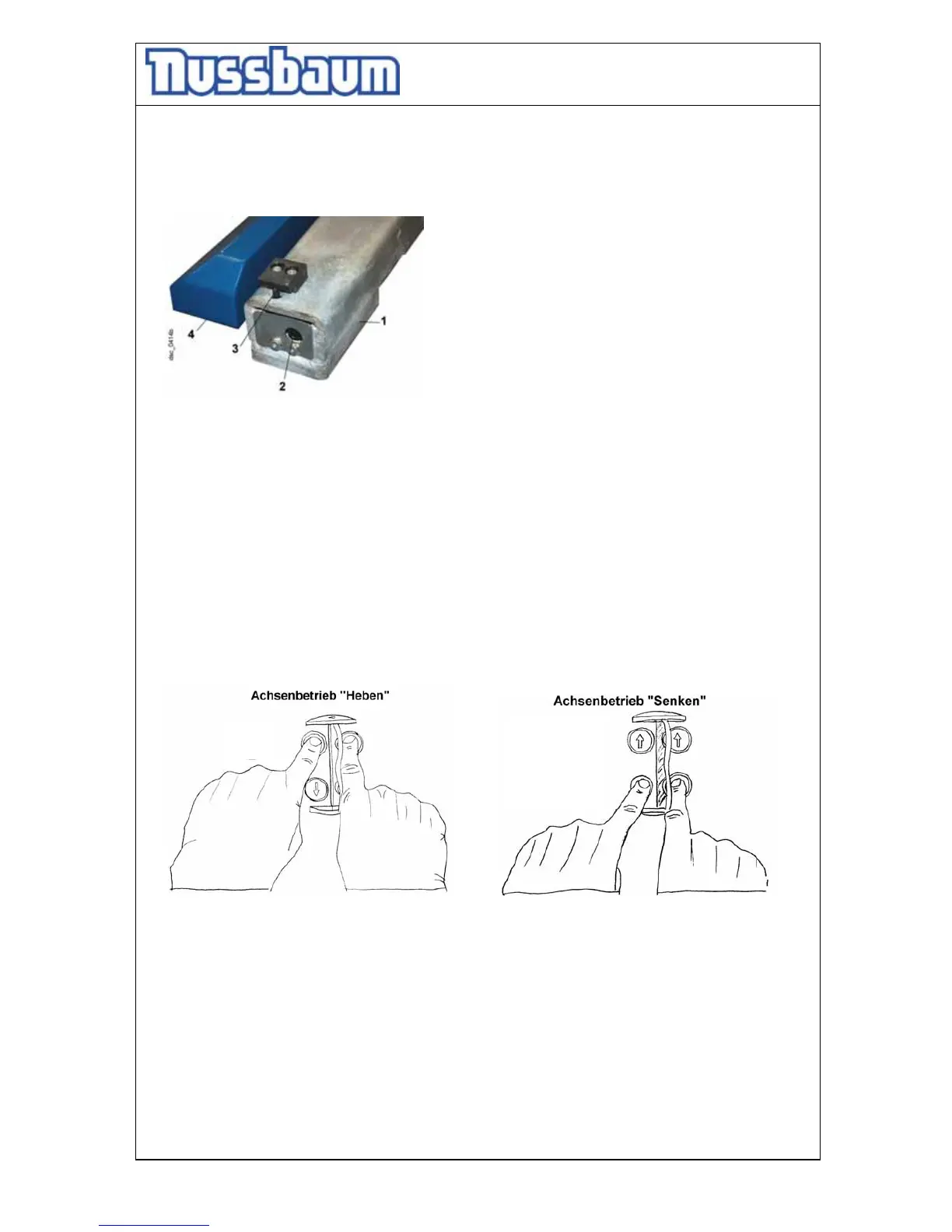

pic 13: positions of the photoelectric
1 base frame
2 photoelectric
3 anntennas
4 lifting arm
• For using the axle-mode. The opposite MCS´s must become positioned , that the photo-
electric’s recognize itself.
• Select button paired operation (Button “E” at the operating unit) on both sides.
• For lowering of the single axle, at you are standing: press button 2 and 4 together. The
columns towards each other will only move, when they get a signal from the opposite
column (photocell in the leg).
In case of radion connection interruption => switch SLAVES ON again, afterwords
switch MASTER ON again (see above : putting system in operation). If connection is
established again, operating the lift is possible again.
• The allowable maxi. deviation of both MCS to each other is allowed to ± 100 mm doesn't
overstep, otherwise the axis-mode is not possible.
The opposite MCS is recognized, the yellow signal lamp shines, when both buttons “Lifting
“ or both buttons “Lowering “ are pressed.
pic 14:axle-mode “lifting” pic 15: axle-mode “lowering”
The axle-mode is not possible (example: interrupt through an obstacle, deviation more than ± 100
mm) when the photoelectric are not recognized.
pic 16:
