MAINTENANCE
ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY
BEFORE CARRYING OUT ANY OPERATIONS ON THE
APPLIANCE.
Grease Filter(s)
The grease filter(s) should be cleaned frequently. Use a
warm dishwashing detergent solution. Grease filter(s) is (are)
dishwasher safe.
Clean the filter(s) in the dishwasher using a non-phosphate
detergent. Discoloration of the filter(s) may occur if using
phosphate detergents, or as a result of local water conditions
- but this will not affect filter performance. This discoloration
is not covered by the warranty. To minimize or prevent
discoloration, hand wash filter(s) using a mild detergent.
Non-Ducted Recirculation Filter(s)
The Non-Ducted Recirculation filter(s) should be changed
every 3 to 6 months. Replace more often if your cooking style
generates extra grease, such as frying and wok cooking.
STAINLESS STEEL CLEANING
Do:
• Regularly wash with clean cloth or rag soaked
with warm water and mild soap or liquid dish
detergent.
• Always clean in the direction of original polish
lines.
• Always rinse well with clear water (2 or 3 times)
after cleaning. Wipe dry completely.
• You may also use a specialized household
stainless steel cleaner.
Don’t:
• Use any steel or stainless steel wool or any
other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction
residues reach the unit. During construction/
renovation, cover the unit to make sure no dust
sticks to the stainless steel surface.
Avoid when choosing a detergent:
• Any cleaners that contain bleach will attack
stainless steel.
• Any products containing: chloride, fluoride,
iodide, bromide will deteriorate surfaces
rapidly.
• Any combustible products used for cleaning
such as acetone, alcohol, ether, benzol,
etc., are highly explosive and should never be
used close to a range.
WHT
BLU
RED (LOW SPEED)
MM
MOTOR SWITCH
BLK (HIGH SPEED)
BLK
BLK
WHT
1
2
LE D
LI GHT
REF: 99046214_REV-A
1
2
LI NE / 120V AC
NEUTRAL
GROUND
ELECTRICAL BOX
BLK
WHT
WHT
LIGHT SWITCH
COLOR CODE
BLK
BLU
RED
WHT
BLACK
BLUE
RED
WHITE
•
WHT
BLU
BLU
LED
LI GHT
BLK
WHT

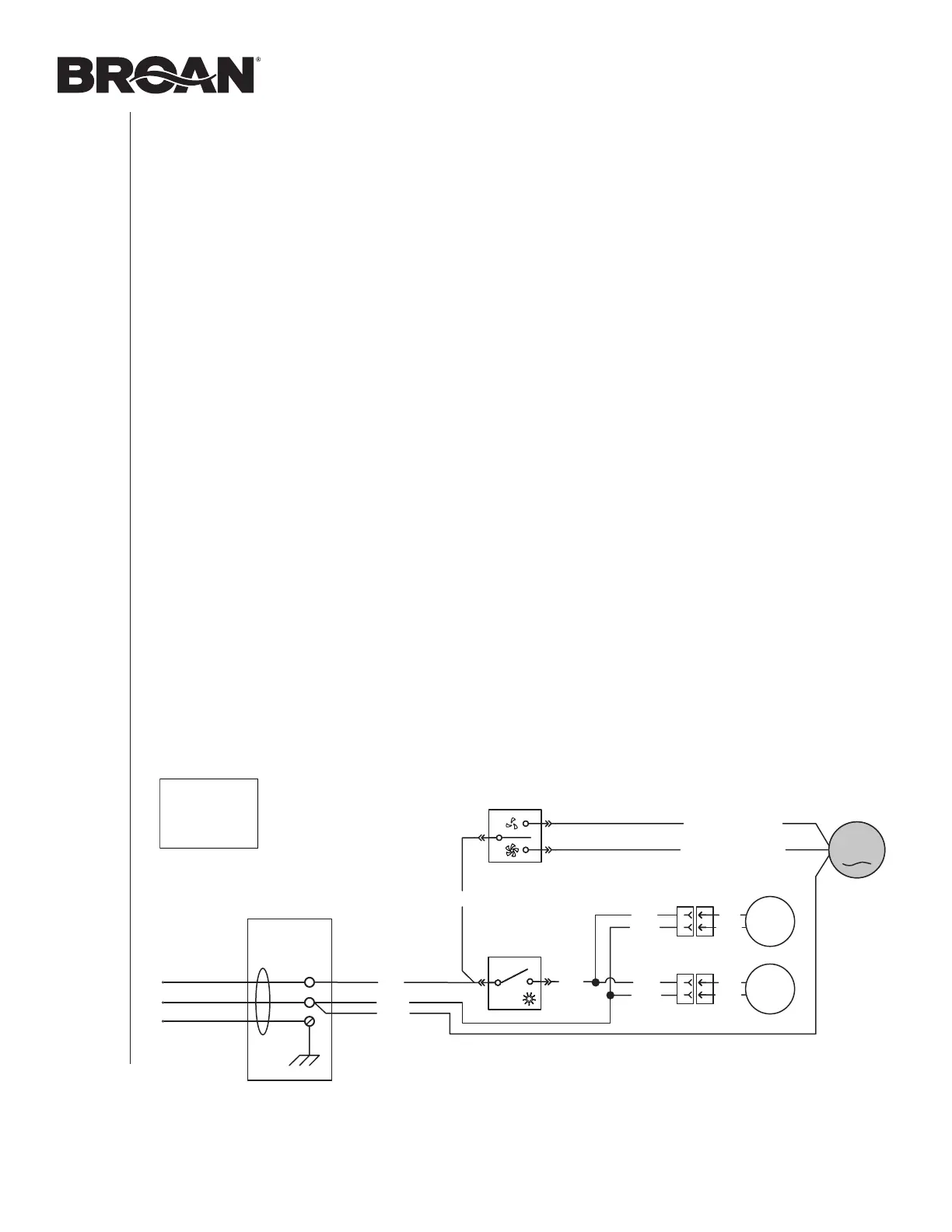

WIRING DIAGRAM
